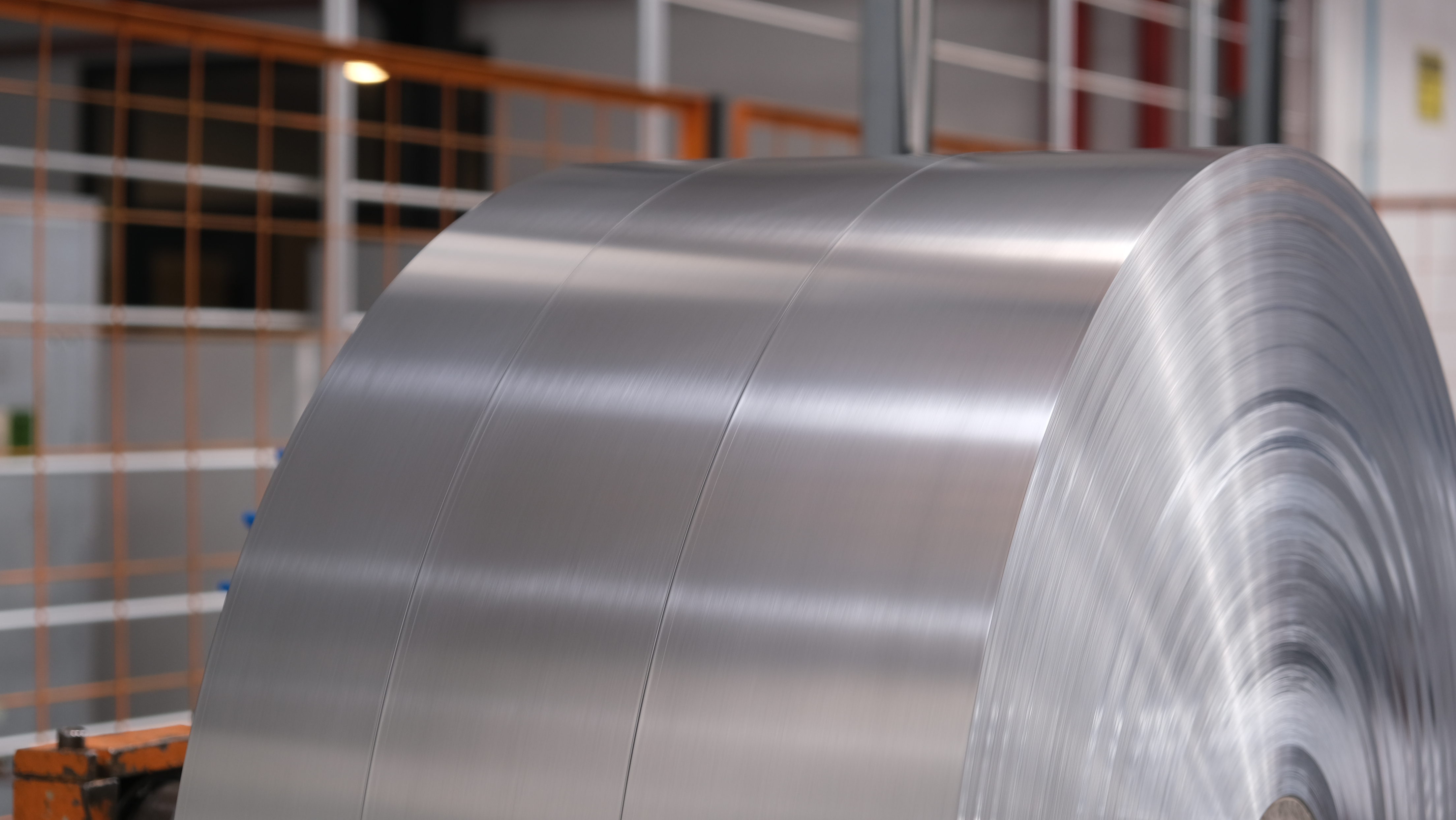

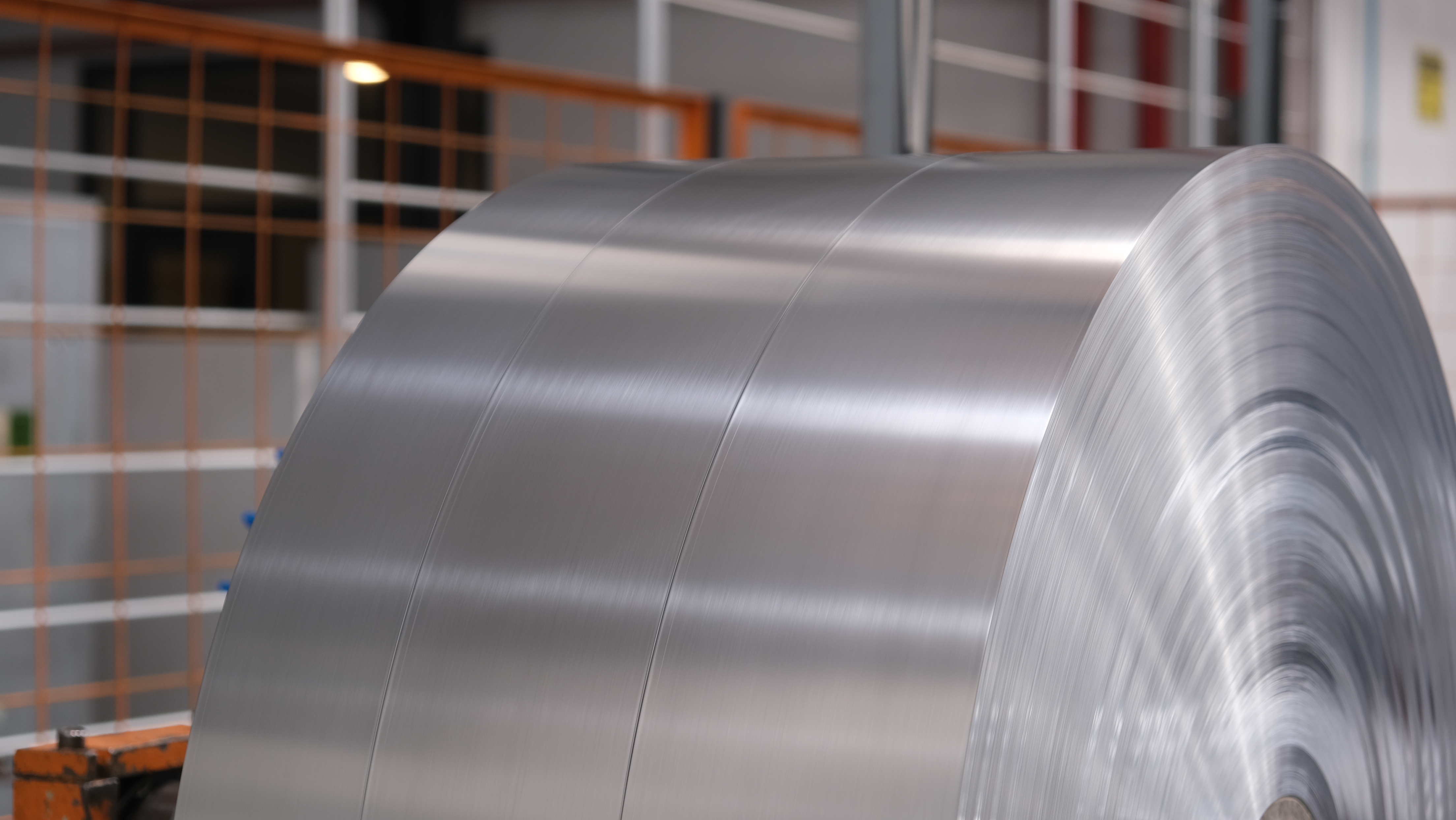

Copolymer Coated Aluminum Tape

Product information

Kablomar carries out the production of copolymer coated aluminum tape in three processes. First, the mono-extrusion film production machine is filled with a raw materials mixture of EAA and other chemical supportive additives in certain proportions. The mixture is melted at approximately 150-160 degrees and the copolymer film became suitable for the desired coating color, width, thickness, and quantity. The copolymer film and the bare aluminum foil are loaded into the coating machine in a single/double-side in accordance with the customer's request. Before the oven, the loaded materials are bound to each other by the pre-lamination process in the coating machine, and they are passed through a five-meter-long tunnel oven at certain speeds with a temperature of approximately 200-300 degrees. The bare aluminum foil and the copolymer film pass through the coating line and becomes completely adhered to each other with the help of temperature (HEAT). In this way, the copolymer-coated aluminum product, which is the main product, becomes ready for slitting. In the third process, the fully automatic double shafts slitting machine is fixed according to the desired ID (inner diameter), width, and length then finally the production of copolymer-coated aluminum tape is completed by slitting the master roll into tapes. Finally, the tapes are packed in accordance with the customer’s specification and became ready for shipment. The aluminum used in the product comes mostly from Asia and Russia.

Detailed information

Registration number:
S-P-04788
Status:
Valid
PCR:
2019:14
En15804 Compliant:
Yes
Registration date:
June 30, 2022
Valid until:
July 1, 2027
Geographical scopes:
Global

Company information

Logotype
Company Name:
CableMar
Country:
Turkey
Contact:
Website:

Other documents

Included products in this EPD

Copolymer Coated Aluminum Tape
