EPD-IES-0017662:003

Acoustic wall panel

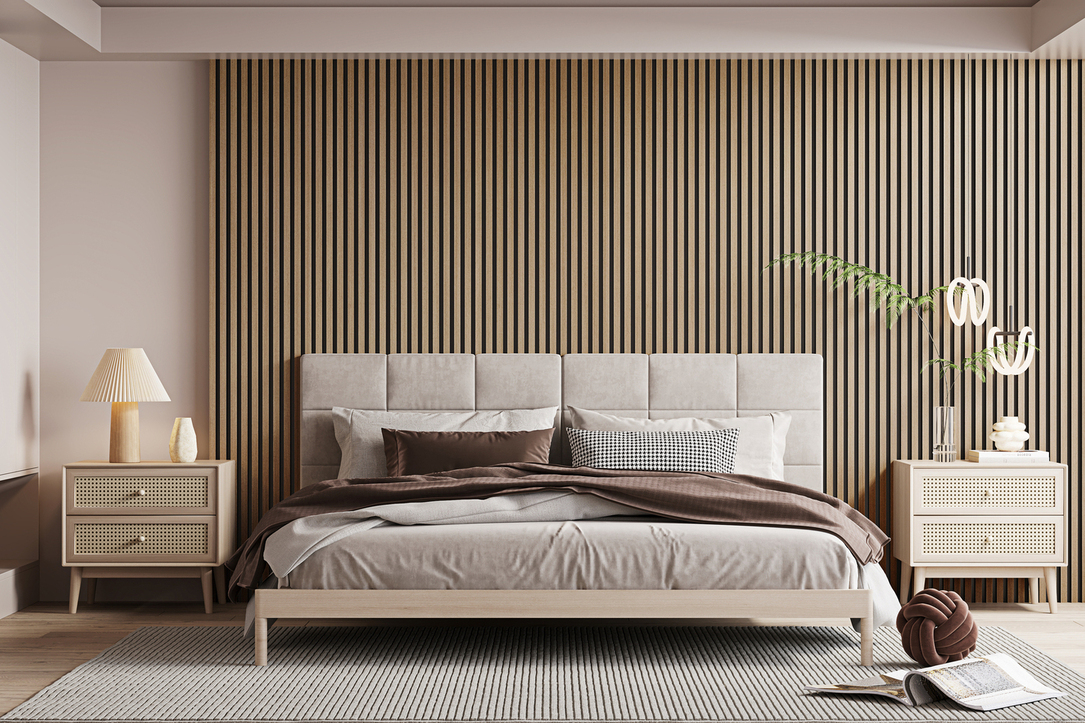

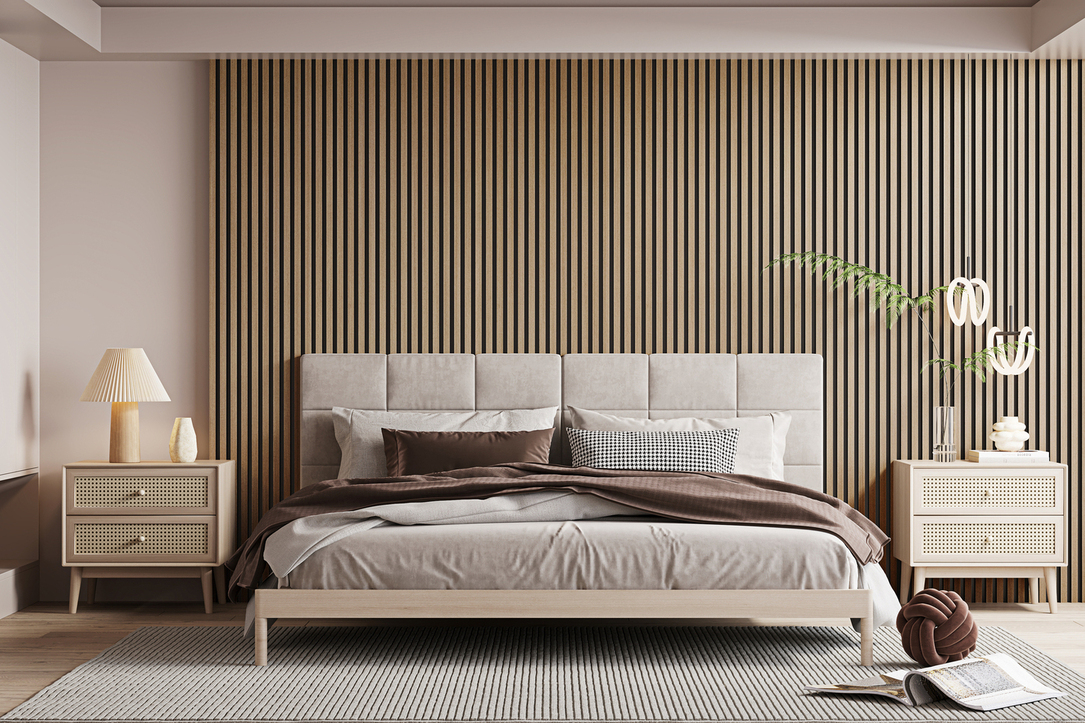

The acoustic wall panel is a sound-absorbing solution designed for interior spaces. It is composed of three distinct layers: a top layer of wooden veneer for aesthetic appeal, a core layer of MDF (Medium Density Fiberboard) providing structural integrity, and a bottom layer of acoustic material to effectively dampen sound. These panels are ideal for use in offices, conference rooms, theaters, where managing sound quality is essential.

The acoustic wall panels are available in thicknesses between 6,5 mm and 21,5 mm. The composition varies based on the thickness:

• 6,5 mm panels weight 3,4 kg/m2, and consist of 0,5 mm of wooden veneer, 3 mm of MDF, and 3 mm of the acoustic material. They are manufactured in four standard dimensions: 1500x525 mm, 2580x525 mm, 2600x525 mm, and 300x200 mm.

• 21,5 mm panels weight 7,5 kg/m2, and are composed of 0,5 mm of veneer, 12 mm of MDF, and 9 mm of the acoustic material. These are available in dimensions of 2600x526 mm, 2700x520 mm, 300x200 mm, and 553x553 mm.

Registration numberEPD-IES-0017662:003
PCR2019:14 Construction products (EN 15804+A2) 1.3.4
StatusValid
Publication date2025-06-13
Valid until2030-06-12
EN 15804 compliantYes
Geographical scopeChina, Netherlands
LCA PractitionerDalian Kaiyong Home Decor
