EPD-IES-0009089:002 (S-P-09089)

Fire hydrant type 4S/160 30m/25-S

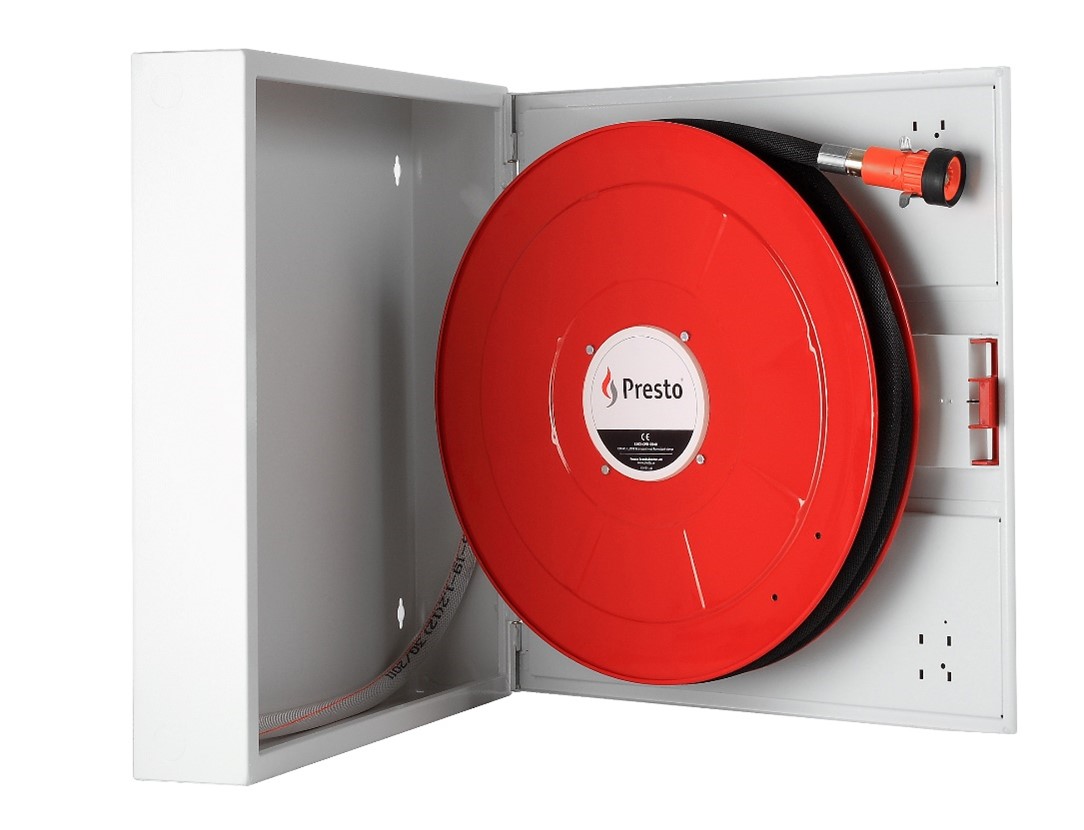

Fire hydrant type 4 is a fire hydrant with cabinet that has a centre coil with a rolled-up hose for mounting in a wall. It is delivered complete with a ball valve and labels. It is installed on sites for fire protection purposes as it is supposed to be used in emergency situations to extinguish fires.

Technical characteristics according to the technical specification EN671-1:2012:

smallest flow for scattered flow 0,6MPa (19mm): ≥ 53 l/min

smallest flow for concentrated flow 0,6MPa (19mm): ≥ 53 l/min

smallest flow for scattered flow 0,6MPa (25mm): ≥ 102 l/min

smallest flow for concentrated flow 0,6MPa (25mm): ≥ 102 l/min

effective reach of flow, concentrated flow 0,2MPa: ≥ 10m

effective reach of flow, scattered flow 0,2MPa: ≥ 3m

Registration number	EPD-IES-0009089:002 (S-P-09089)
Status	Valid
Version date	2024-12-03
Validity date	2028-06-16
PCR	2019:14 Construction products (EN 15804+A2) (version 1.3.4) 1.3.4
Standards conformance
Geographical scope	Europe
LCA Practitioners	annie@miljogiraff.se, Miljögiraff AB carla@miljogiraff.se, Miljögiraff AB

Company name	Presto AB
Country	Sweden
Contact	robert.johansson@presto.se
Website	http://www.presto.se/

The declared products in this EPD are fire hydrants of type 4 and type 3 formounting on or in a wall. These are similar products from a single manufacturing site covered by the same PCR and manufactured by the same company with the same steps. The difference between the products are the length and dimension of the hose as well as the dimensions of the cabinet in which it is installed. Additionally, there may also bedifferences in components, for example, that type 4 has a frame that is notincluded in type 3.

The results represent the product 4S/160 30m/25-S which is the most complete and withthe largest components, therefore the results are the highest result among the products.
