Sistema de tabiquería para acondicionamiento acústico

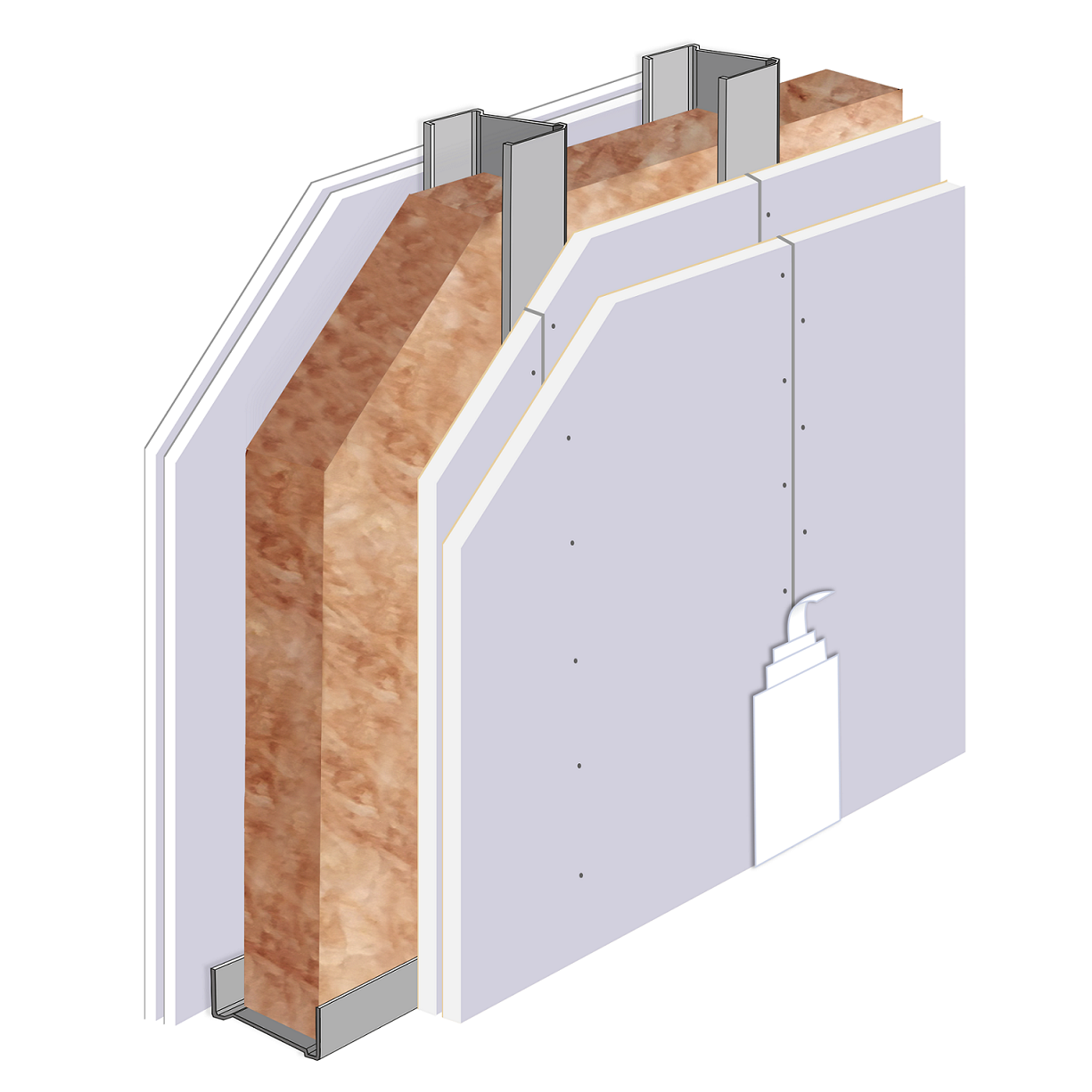

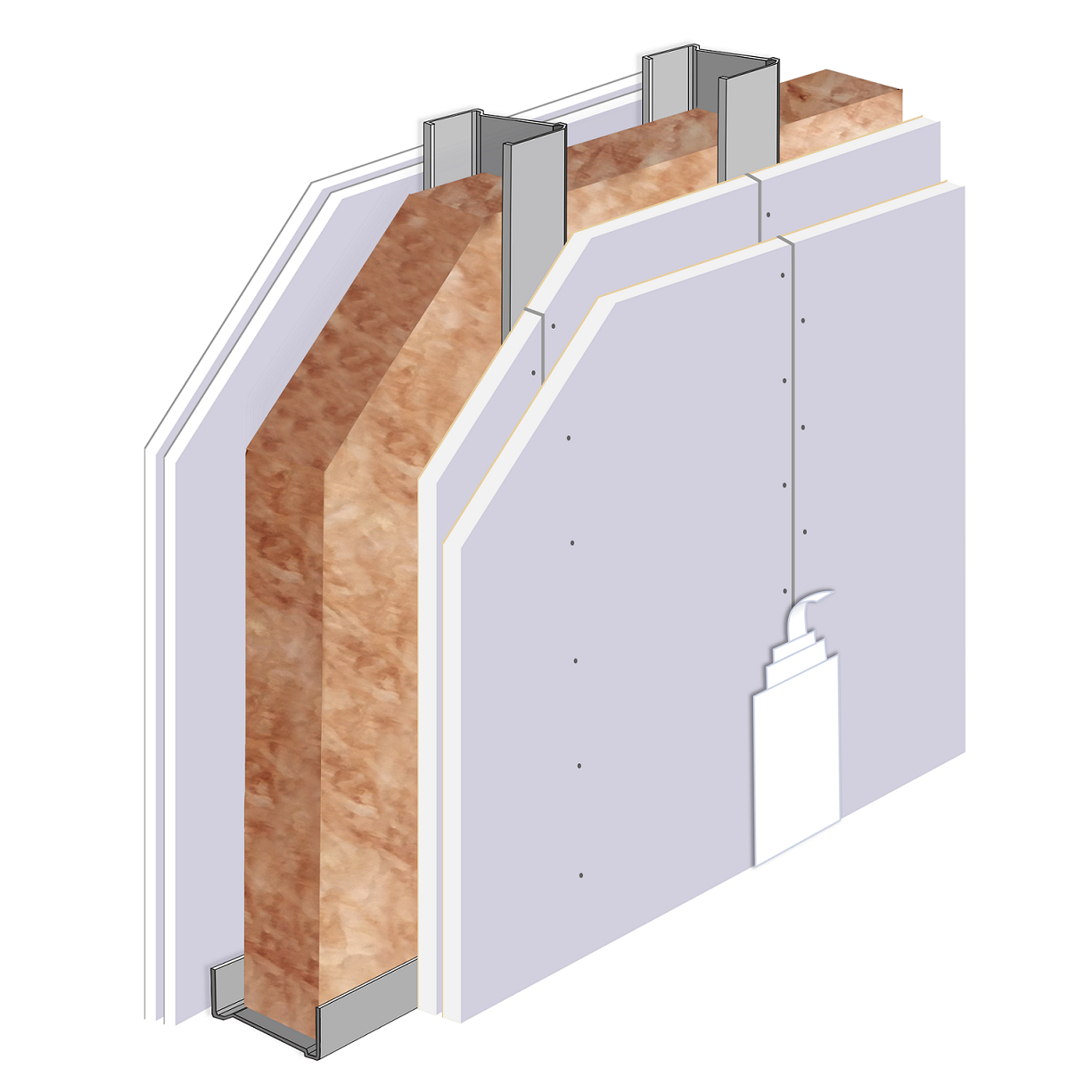

The Isover and Placo® acoustic insulation partition system, with a simple structure, made up of four 12.5 mm thick Placo® PPH 13 plasterboards, screwed to a galvanized steel metal structure made up of 0.4-1 mm metal profiles, 48 mm thick and modulated at 600 mm, resulting in a total finished partition width of 98 mm. It also includes 48 mm thick Arena APTA mineral wool, with a thermal conductivity of 0.034 W/m.k and thermal resistance of 1.40 m2. Proportional part of joint paste and tape, Placo® screws, fixings, Placo® 45 sealing strip under the perimeter profiles. Finish level of joint treatments Q2.
