P100 SLIM

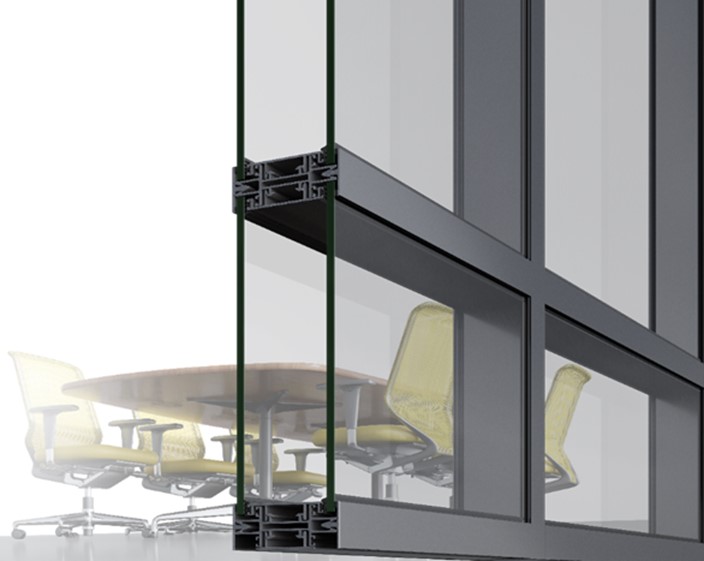

This is a specific EPD and covers P100 SLIM system manufactured by ALUMIL S.A. SMARTIA P100 Slim is a minimal aluminium-framed office partition with double glazing. It is characterized by a wide variety of profiles and solutions with very thin face width, which allows the creation of complex and large constructions with high levels of lighting and sound insulation.

• Visible face width 30mm & basic depth 70mm

• Door sash of same thickness (30mm)

• ALUMIL design handle & hinge set (up to 80kg per sash)

• Double glazing from 5+5mm to 10+10mm thickness

• Sound reduction 47dB (fixed) & 42dB (door)

• Door dimensions, up to 1.0 x 3.0m

• Variety of typologies (“T” shape, cross, fixed or variable corner)
