LK Manifolds UNI & LK Mini Manifolds

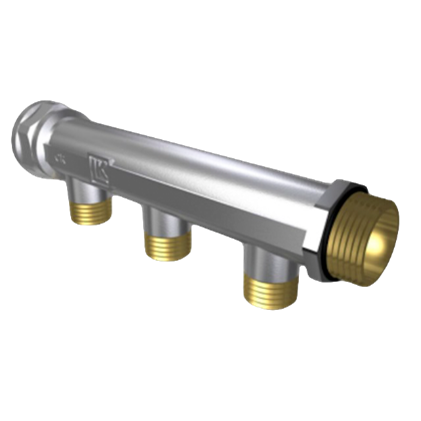

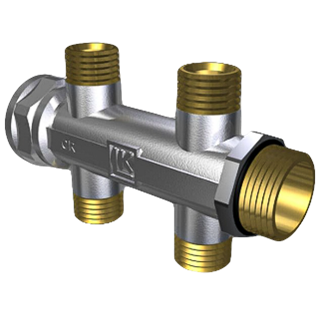

LK Manifold UNI comes in different types. Mainly they are extension

manifold for heating- and potable water systems and manifold for

heating- and tap water systems which is not extendable, used as a last

manifold in when not wanting to expand further. The manifolds attach to

the wall in the LK Manifold Bracket, or in LK Manifold Cabinet UNI.

Manufactured from dezincification resistant brass, nickel plated (LK

Manifold UNI-25-c/c 100 is not nickel plated).

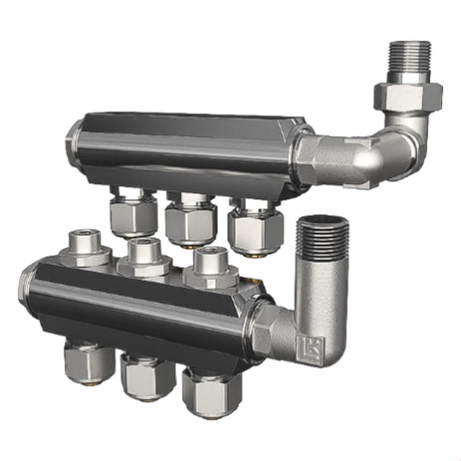

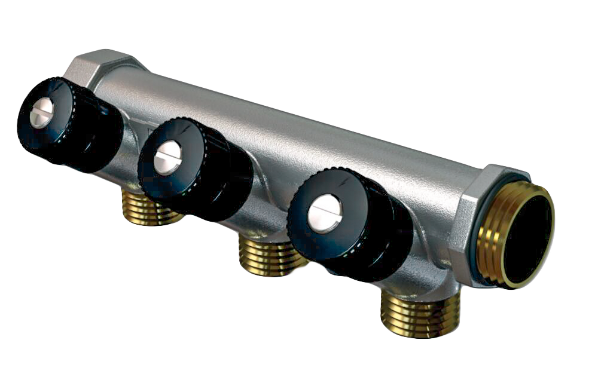

LK Mini Manifolds are nickel plated manifold for connection to LK

Minishunt M60n. The manifolds have integrated lock-shield valves for

balancing the flow of the floor heating loops. The manifolds are available

for connecting from 2 to 4 under floor heating loops. Delivered incl. angle

fittings ½" male thread and necessary connection couplings for LK PE-X

pipe dim 12 mm, PE-X and PAL dim 16 mm or PE-X dim 20 mm. Mounted

on LK Minishunt M60n the building height will increase by approx 90 mm
