Technishield 65-60 Glazed Partitions

Technishield is a range of external steel-framed door and partition systems, supplied either single-glazed or double-glazed, and available in 304 and/or 316 stainless steel or powder-coated mild steel variants.

TECHNISHIELD 65/60 GLAZED PARTITIONS

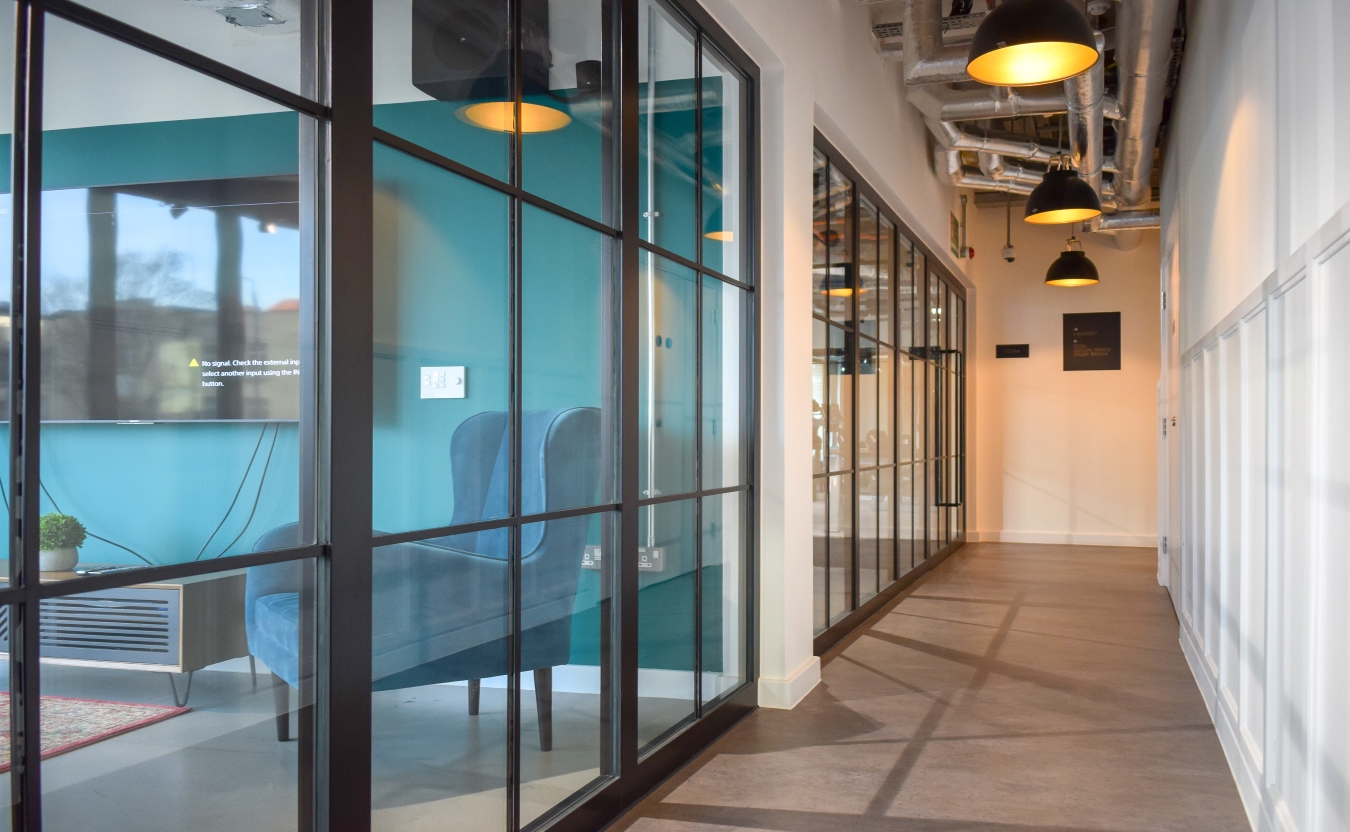

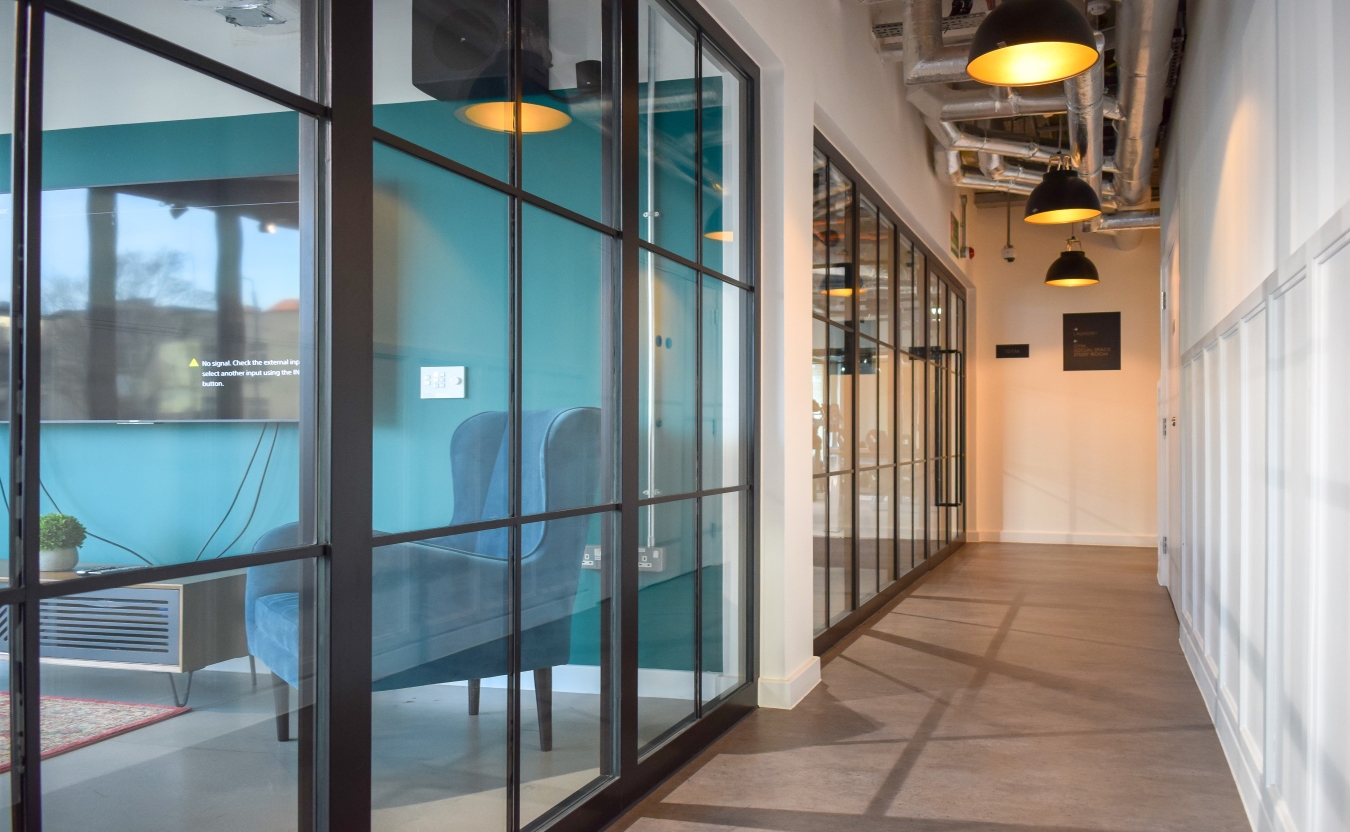

Single glazed Technishield 65-60 is a stylish and robust glazing system with fire resistance of up to 60 minutes in terms of both Integrity and insulation. Formed from mild steel framing sections, incorporating thermally resistant materials, the system is supplied with a high quality powder coat finish.

The screen would normally be glazed with a 25mm intumescent glass but can also accommodate thicker double glazed units where greater acoustic performance is required. Screens can incorporate intermediate mullions and transoms and can be supplied up to 4000mm high with unlimited width. It is also possible to incorporate butt-jointed glazing with the addition of Shoreditch features, if required.

Technishield 65-60 screens can incorporate the Technishield 65-60 door subject to the limitations of the supporting fire test evidence.

This EPD applies to OPL's Technishield 65 EI60 partitions, glazed with 25mm glass.
