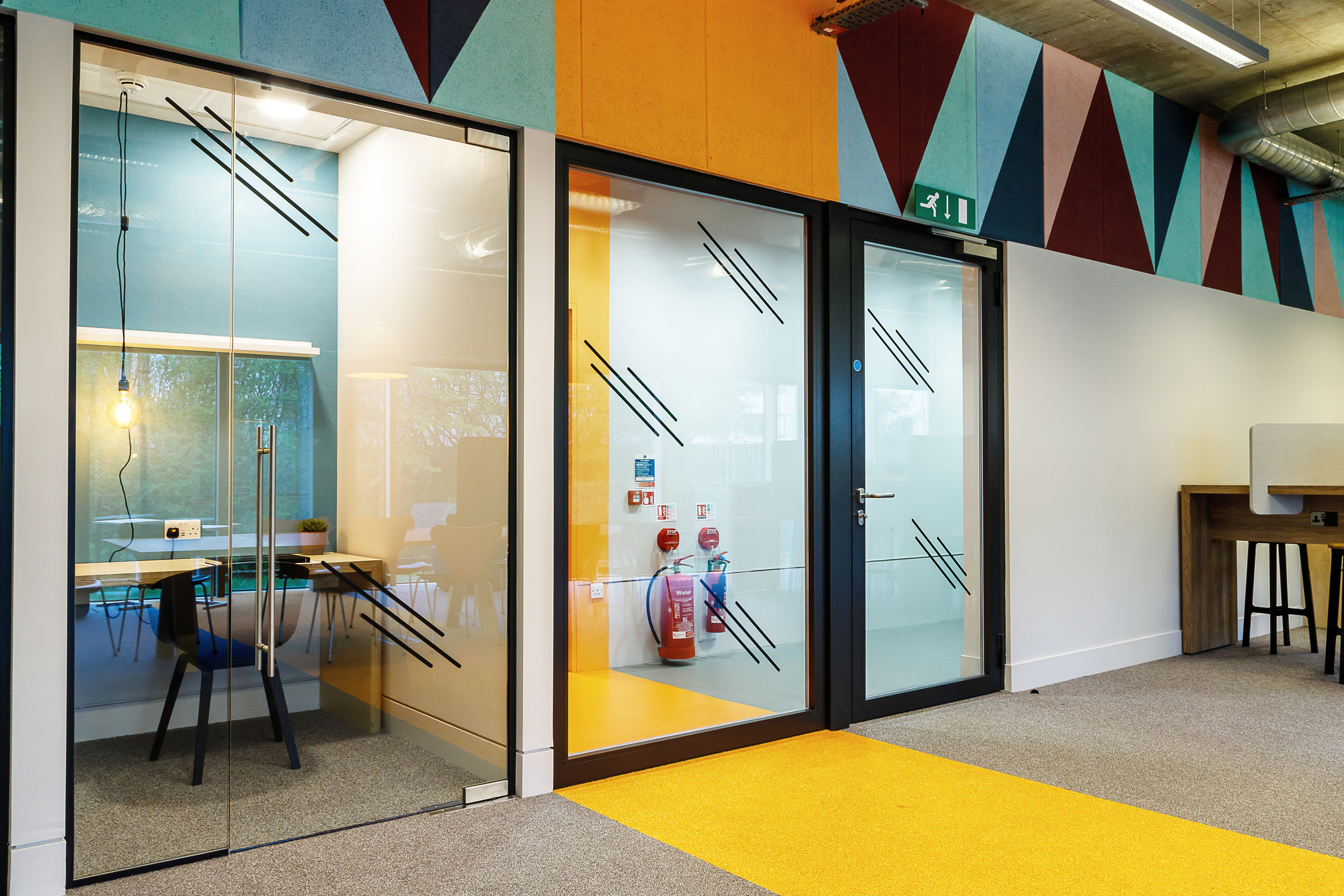

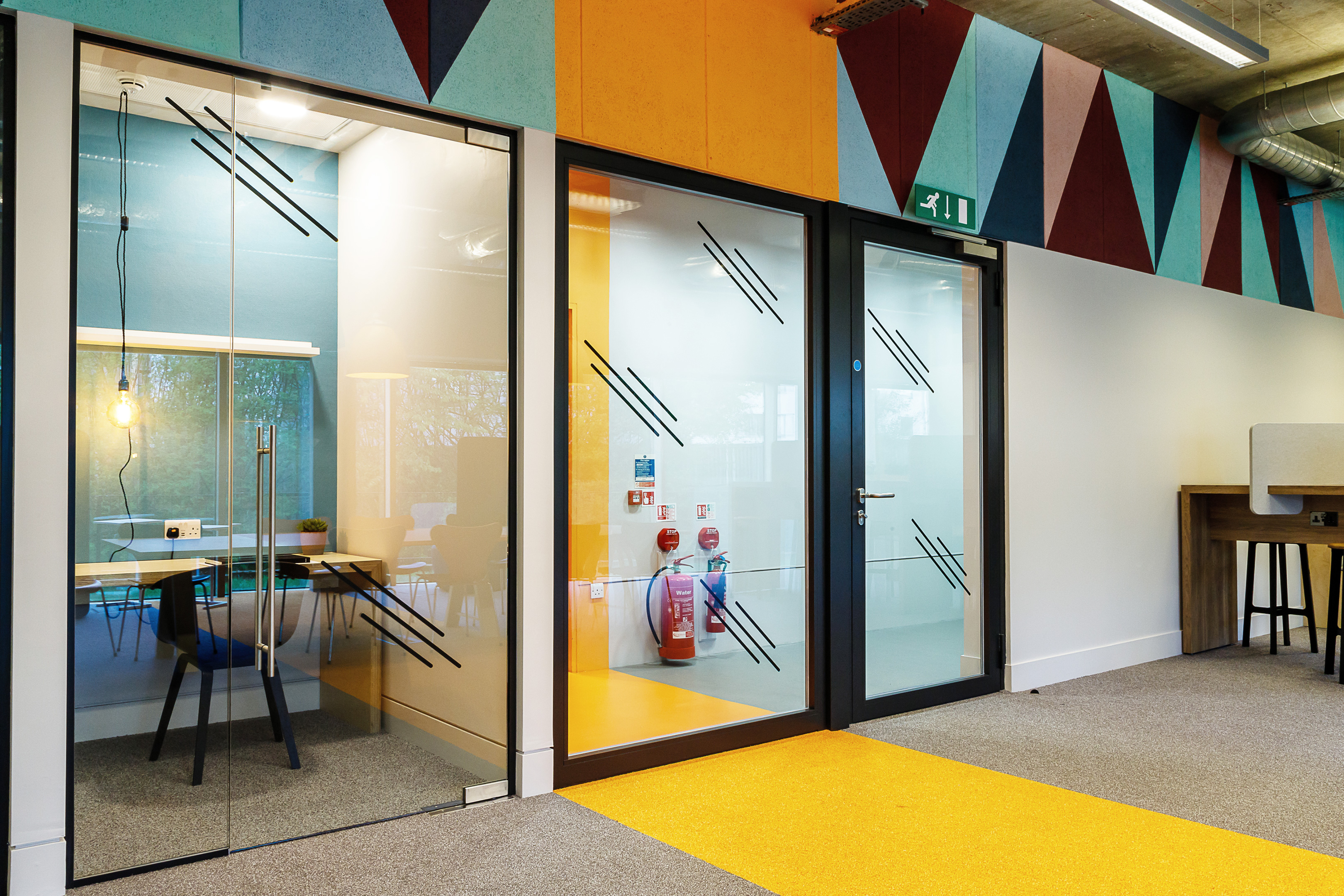

Technishield 65-30 Glazed Door
For fire resistance requirements of 30 minutes in terms of both Integrity and Insulation, the Technishield 65-30, steel framed, and fully glazed door offers the ideal solution. Available as a single leaf or double with equal or unequal leaves, the Technishield 65-30 door is normally supplied with an 18mm thick intumescent glass, but can also be glazed with thicker glass or double glazed units if the acoustic performance requires it. Supplied as a latched door with stainless steel lever handles, the Technishield 65-30 door height can be up to 3000mm or as a non-latched door with pull handles, up to 2817mm high. Electronic access control options are also available. Technishield 65-30 doors can be supplied as a stand-alone system or can be incorporated directly into Technishield 65-30 glazed screens. The door and frame metalwork are factory finished with a high quality powder coat system.
Registration number | EPD-IES-0006716:001 (S-P-06716) |
---|---|
PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
c-PCR | 2019:14-c-PCR-007 Being updated - Windows and doors (EN 17213) (c-PCR to PCR 2019:14) 1.0.0 |
Status | Valid |
Publication date | 2022-11-01 |
Valid until | 2027-10-27 |
EN 15804 compliant | Yes |
Geographical scope | United Kingdom |
LCA Practitioner | Chris Foster |
