Stockholm

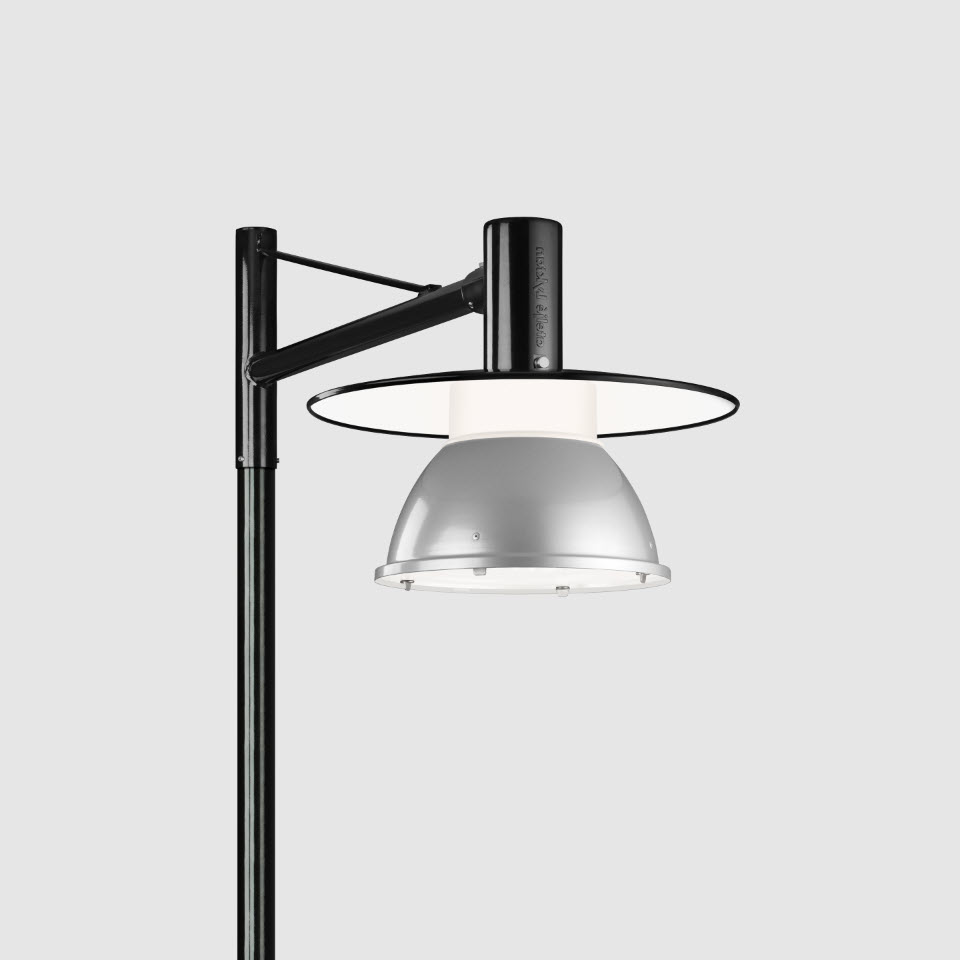

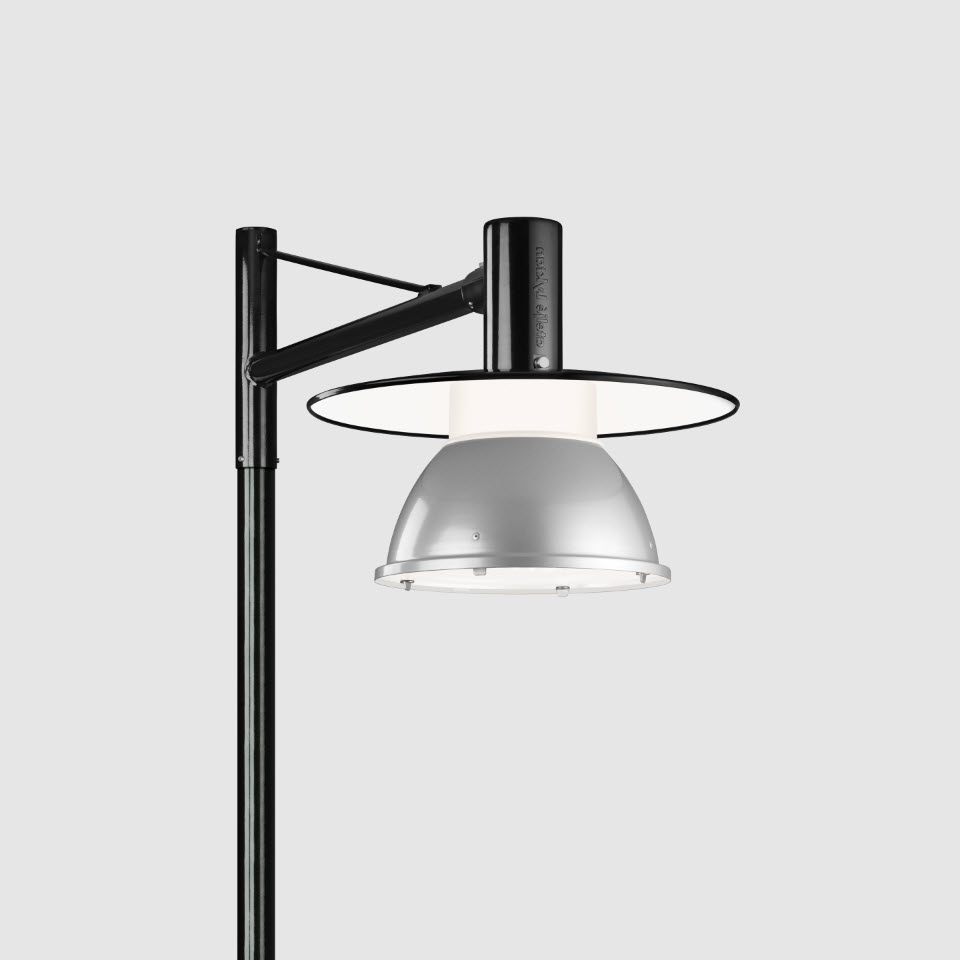

Stockholm is a lighting luminaire for streets, pathways and other open urban spaces.

LED module, with high power diodes. For street light optics we combine the LED with lenses for good light distribution. Color temperature 3000K or 4000K. CRI min 80. Lifetime L100B10 100 000h. Stockholm comes with following lumen package as standard - 1900, 2700, 3500, 4300, 5100, 6000, 7200 lumen. Lumen package up to 8000 lumen can be delivered on request.

Equipped with programmable driver for outdoor environments. Delivered with CLO as standard. Enables functions as DALI, nightDIM and different lumen outputs. Lifetime 100 000h with max 10% failure.

Luminare housing in aluminum and steel. Opal mid part in high impact acrylic, for higher resistance against external violence. Supplied with hardened protection glass.

As standard Stockholm is painted for environments corresponding to corrosivity category C3. Can be used in environments like urban and industrial atmospheres with a moderate sulphur dioxide pollution or areas with some influence from the coast. For environments with a high sulphur dioxide pollution, we can offer a special treatment for higher corrosive resistance.

For this report, the system studied was the life cycle of Stockholm (from cradle to grave) and its function is to act as a light source in an outdoor environment. The version modelled for this report has a length and width of 590 mm, a height of 484 mm, a weight of 11,1 kg and a power-rating of 55 W. It has an estimated reference service life (RSL) of 20 years.
