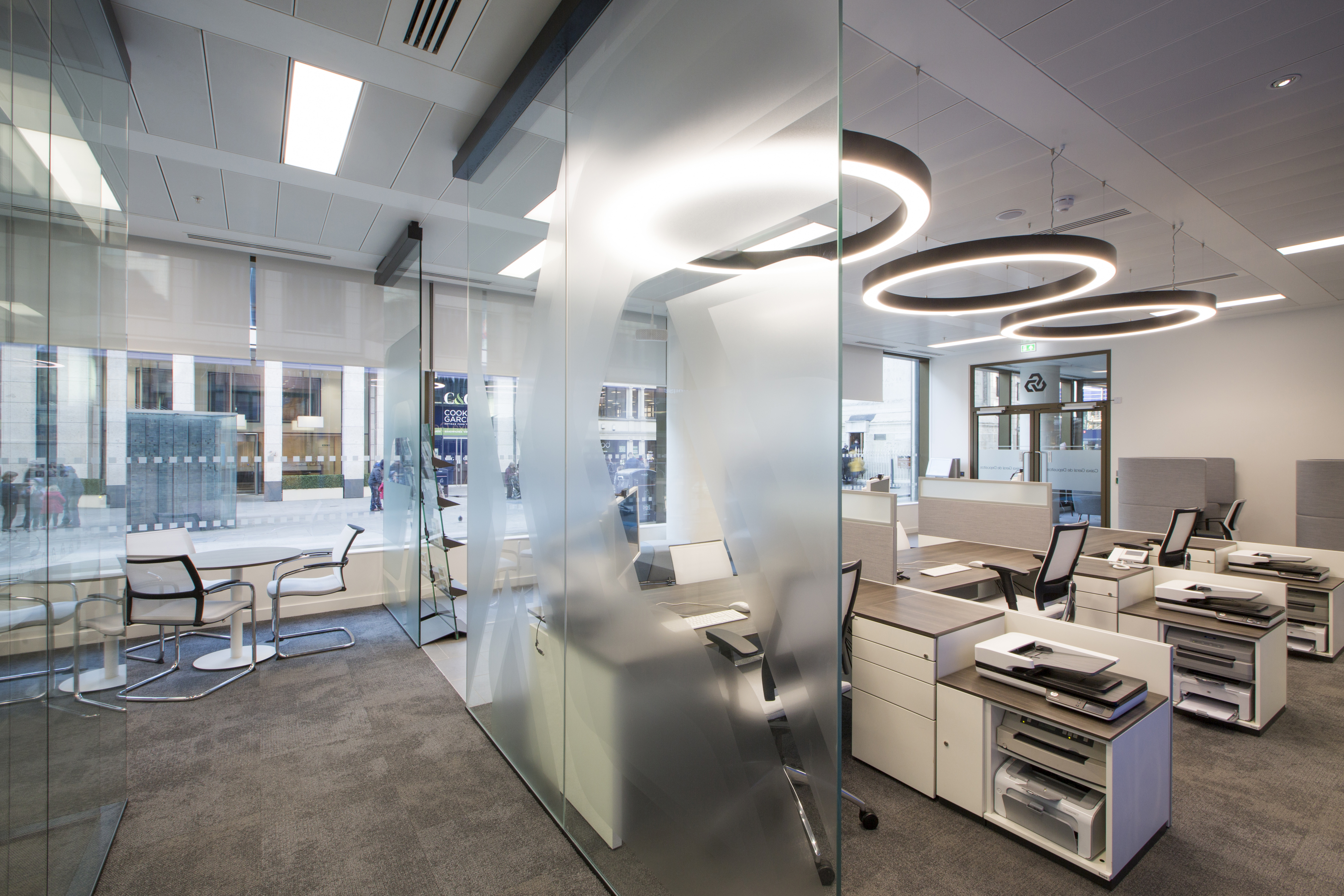

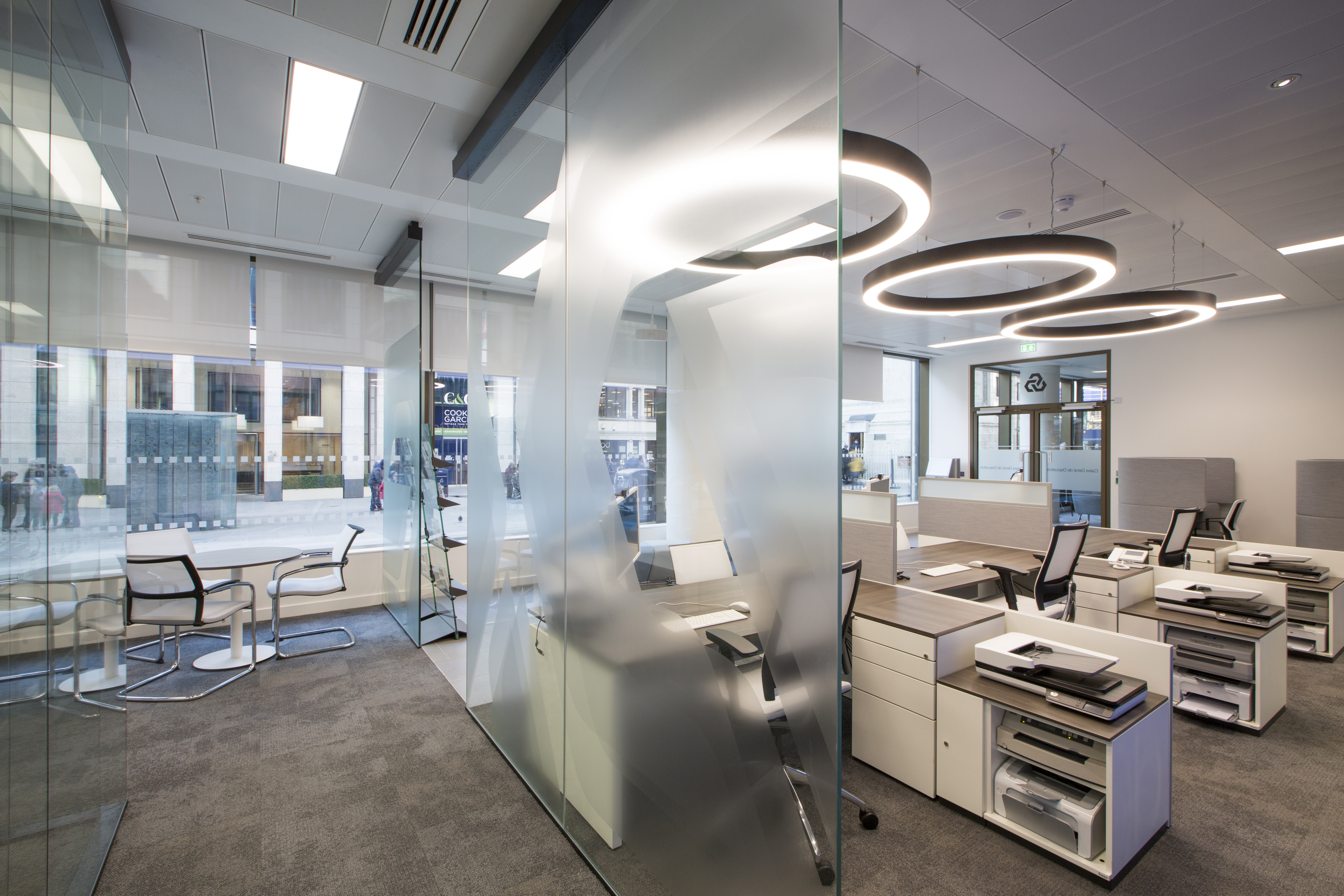

Revolution 100 Single Glazed Partition System

Revolution 100 is a stunning dry-jointed system allowing towhich maintains the same visual appearance across a workspace, whilst addressing varying acoustic requirements.

This versatile system can incorporate a number of extruded aluminium deflection heads. Both inner and outer deflection heads are available, to suit your design intent, and can accommodate up to +/-25mm or +/-40mm deflection. If there is no deflection, a simple 25mm or 50mm extruded aluminium head channel is all that is required. The aluminium base channel can either be 25mm or 50mm deep, depending upon your desired aesthetic.

Revolution 100 is also available in double-glazed form.

Another version, Revolution 100 Shoreditch Edition, features a slimline aluminium framework. Bonded to the glass it retains the structural stability and acoustic performance of the glass partition, whilst giving the appearance of cutting through the glass.

The aluminium framework of all Optima Products’ partition systems can be supplied in either powder coated or anodised finish.

Partitions are costomisable, and indeed normally customised, to suit the context in which they are installed.

This EPD applies to Revolution 100 Single-Glazed Partition Systems with 16.8mm acoustic laminated clear glass. The LCA underpinning it also considered partitions using 10mm & 12mm toughened glass, 12.8mm & 14.8mm laminated glass. The effect of changing the glass thickness on the environmental indicators obtained is discussed in the Interpretation section of this EPD.
