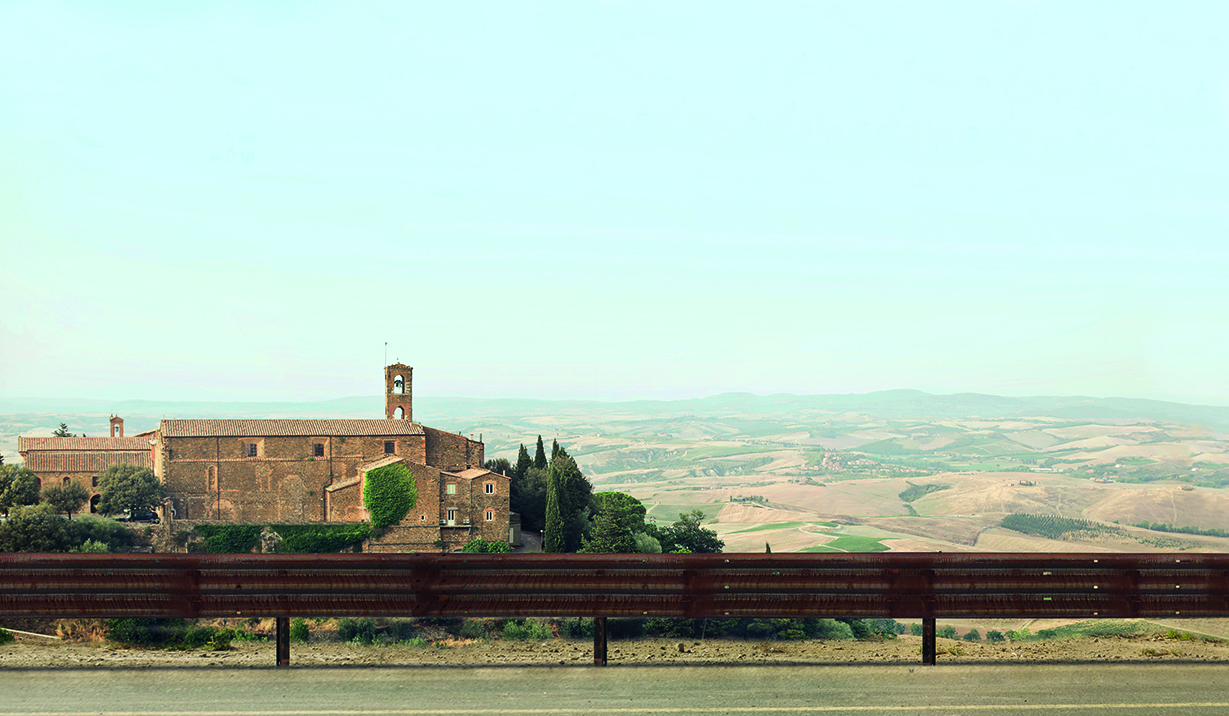

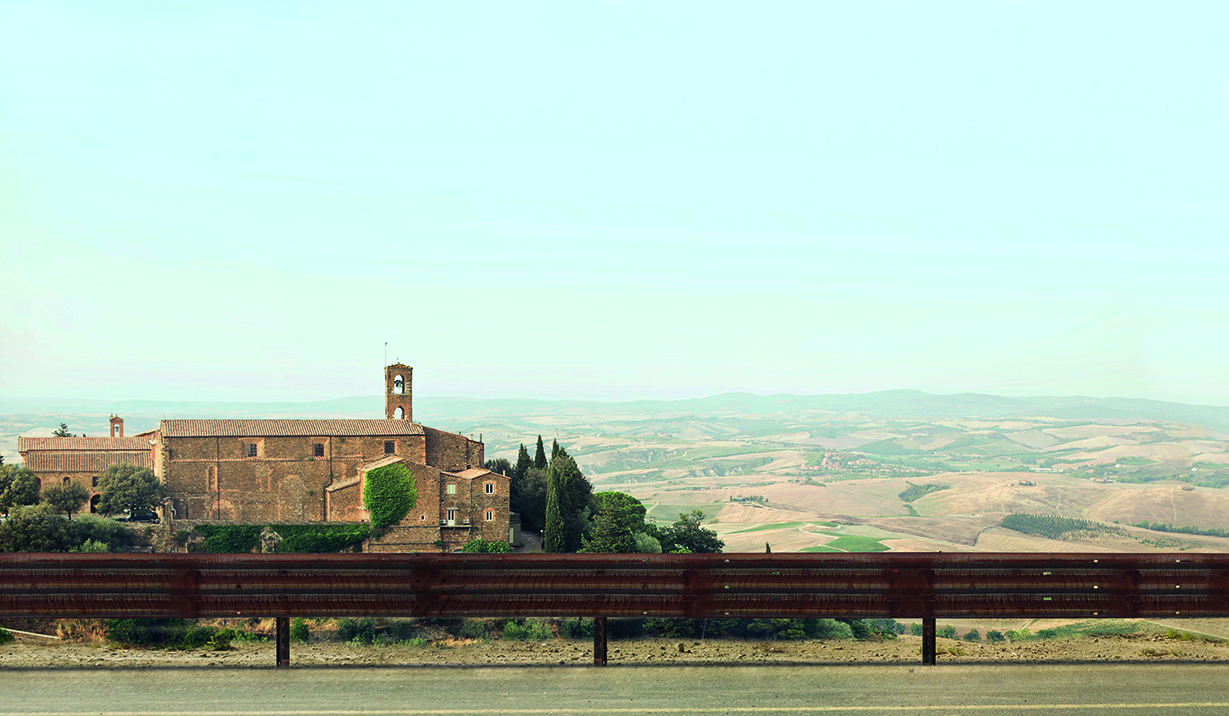

OPT.2.66.H2BL "OPTIMUS" (OPTIMUS series)

Vertical posts in S355J0WP “CORTEN®” or hot dip galvanized S355JR steel, “C” section, of dimensions 120x60x25 mm, thickness 5 mm and length 1580 mm; driven in the ground for a depth of 791 mm and placed at centers of 2660 mm. To the posts are fixed the spacers, S355J0WP “CORTEN®” or hot dip galvanized S355JR steel elements, “C” section, of dimensions 120x60x25 mm, thickness 5 mm to which are fixed the horizontal rails, S355J0WP “CORTEN®” or hot dip galvanized S355JR steel triple wave beams with dimensions 4318x502 mm, thickness 2,5 mm. The barrier can be repurposed by applying a specific wooden covering "kit" (solid or laminated) with the consequent redefinition of the device into a barrier of the same certified class. The coupling between the steel components is guaranteed by high resistance round head and bolts Cl. 6.8 M10x30 (Spacer – Post); Cl. 8.8 M16x40 (Beam – Spacer with the addition of a slot cover plate), and M16x30 (Beam – Beam); nuts and washers.
