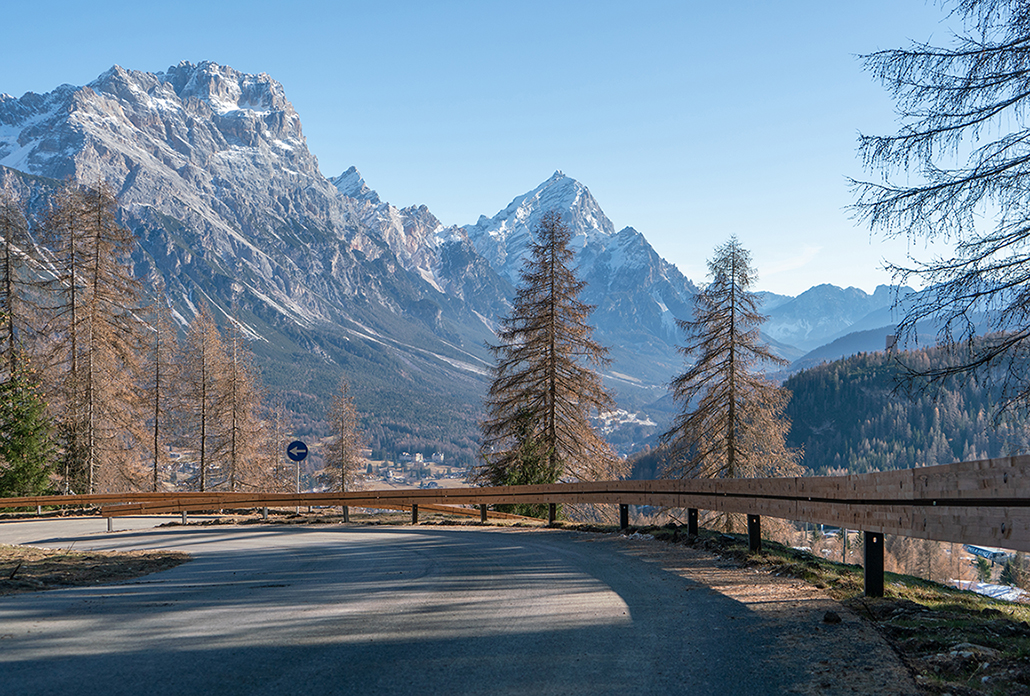

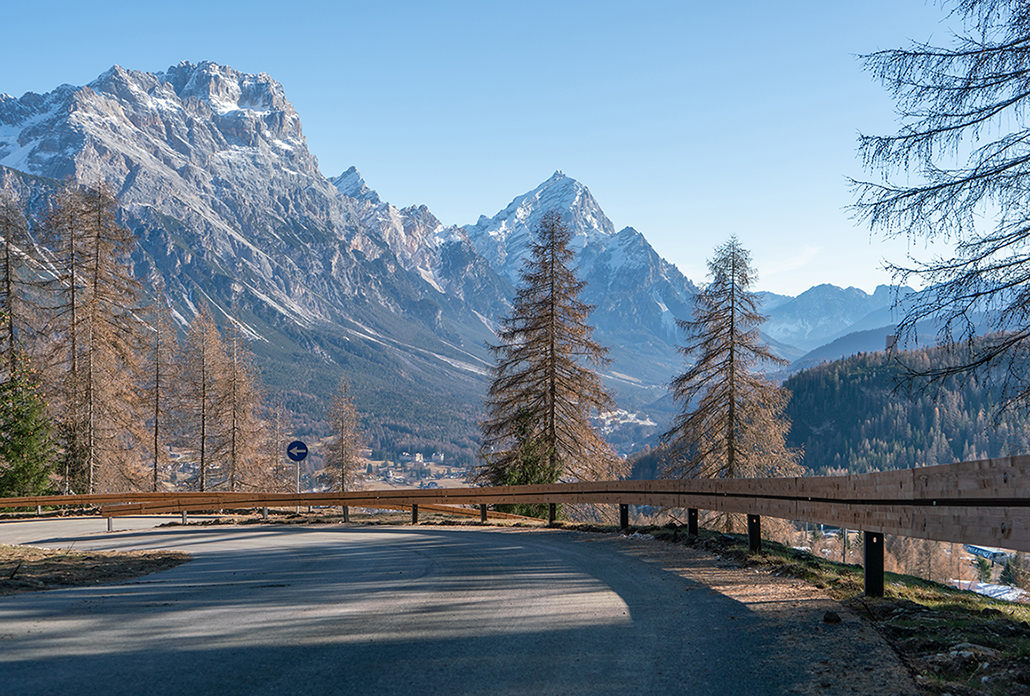

CRTH1BL2 "CORTINA" (ORION series)

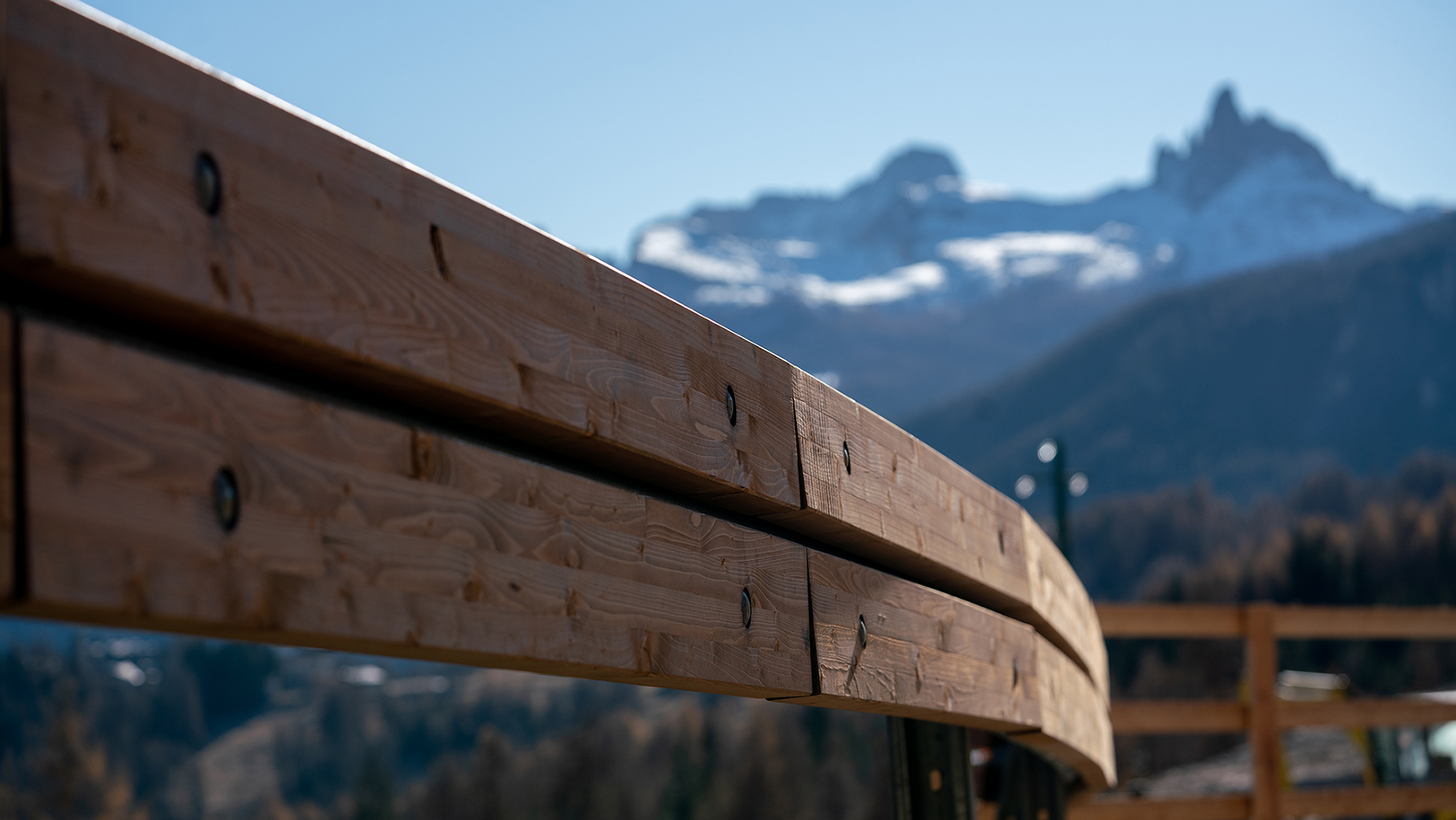

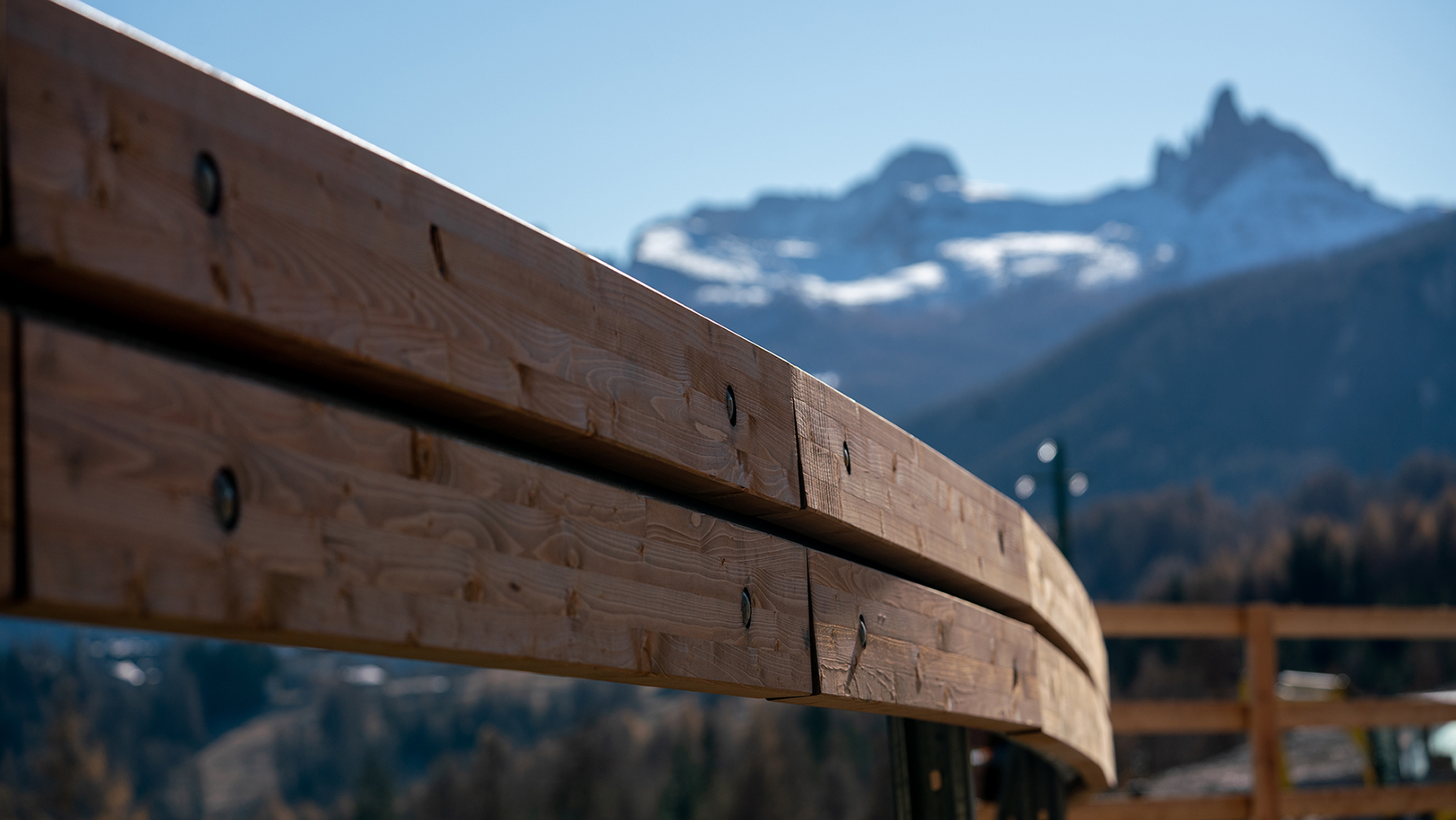

Vertical posts in S355J0WP “CORTEN®” or hot dip galvanized S355JR steel, “C” section, of dimensions 120x80x25 mm, thickness 4 mm and length 1450 mm; driven in the ground for a depth of 775 mm and placed at centers of 2000 mm. A S355J0WP “CORTEN®” or hot dip galvanized S355JR steel W beam horizontal rail is fixed to the posts, with dimensions 4318x310 mm, thickness 2,5 mm. The horizontal rail is completed with the wooden cover of the steel rail; composed of laminated wooden beams 160x60 mm and length 1990 mm suitably shaped and impregnated. The barrier can be repurposed by removing the wooden covering "kit" with the consequent redefinition of the device in a same class certified barrier. The coupling between the steel components is guaranteed by high resistance round head bolts Cl. 8.8 M16x40 (Beam-Post, with the addition of a slot cover plate), and M16x30 (Beam - Beam); nuts and washers. The fixing of the wooden beams to the steel rail is done with round head bolts Cl. 4.8 M16x60; nuts and washers.
