TRVN2BL2 "TREVIADE" (OMNIA series)

Vertical posts in S355J0WP “CORTEN” or hot dip galvanized S355JR steel, “C” section, of dimensions 120x80x25 mm, thickness 4 mm and length 1450 mm; driven in the ground for a depth of 775 mm and placed at centers of 2000 mm. A S355J0WP “CORTEN” or hot dip galvanized S355JR steel W beam horizontal rail is fixed to the posts, with dimensions 4318x310 mm, thickness 2,5 mm.

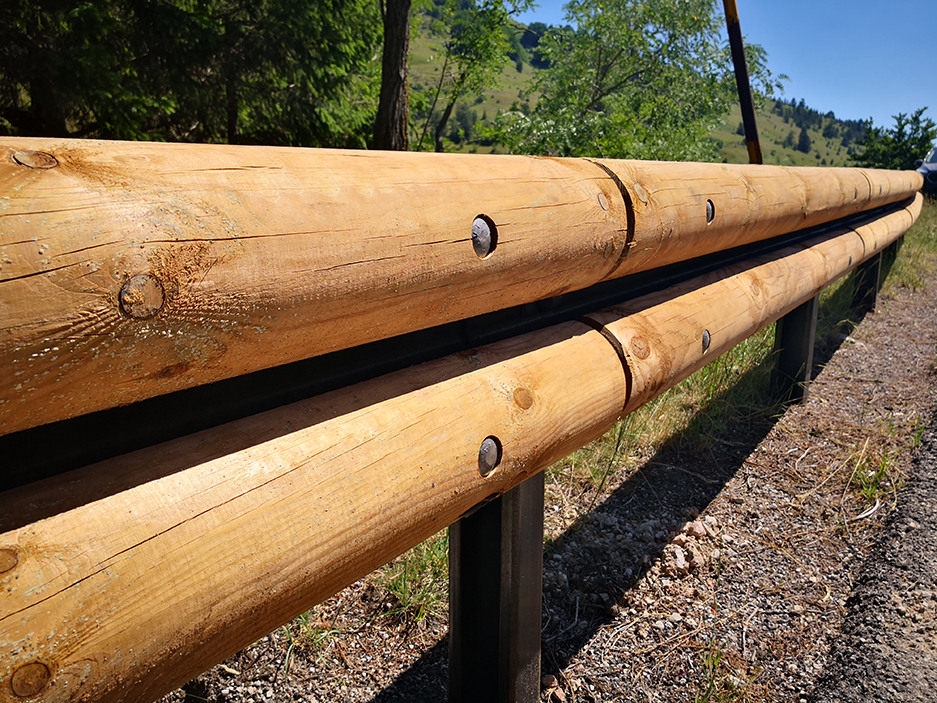

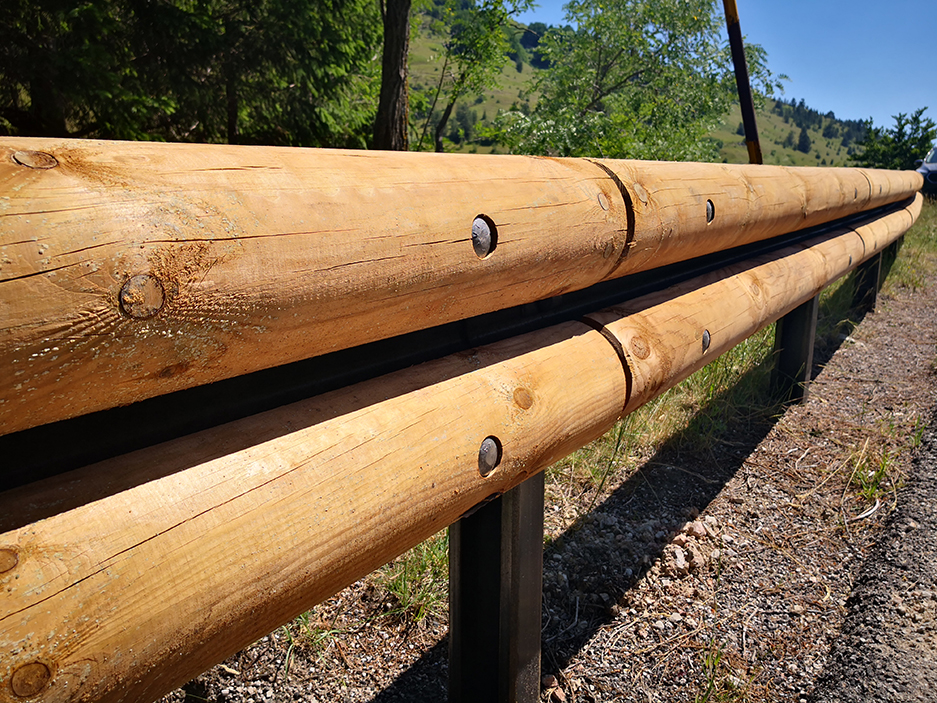

The horizontal rail is completed with the wooden cover of the steel rail; composed of solid wooden half poles, Ø 160 mm and length 1990 mm suitably shaped and pressure treated. The barrier can be repurposed by removing the wooden covering “kit” with the consequent redefinition of the device in a same class certified barrier.

The coupling between the steel components is guaranteed by high resistance round

head bolts Cl. 8.8 M16x40 (Beam-Post, with the addition of a slot cover plate), and M16x30 (Beam - Beam); nuts and washers. The fixing of the half poles to the steel rail is done with round head bolts Cl. 4.8 M16x80; nuts and washers.
