Adaptable Meeting Room (6x3m)

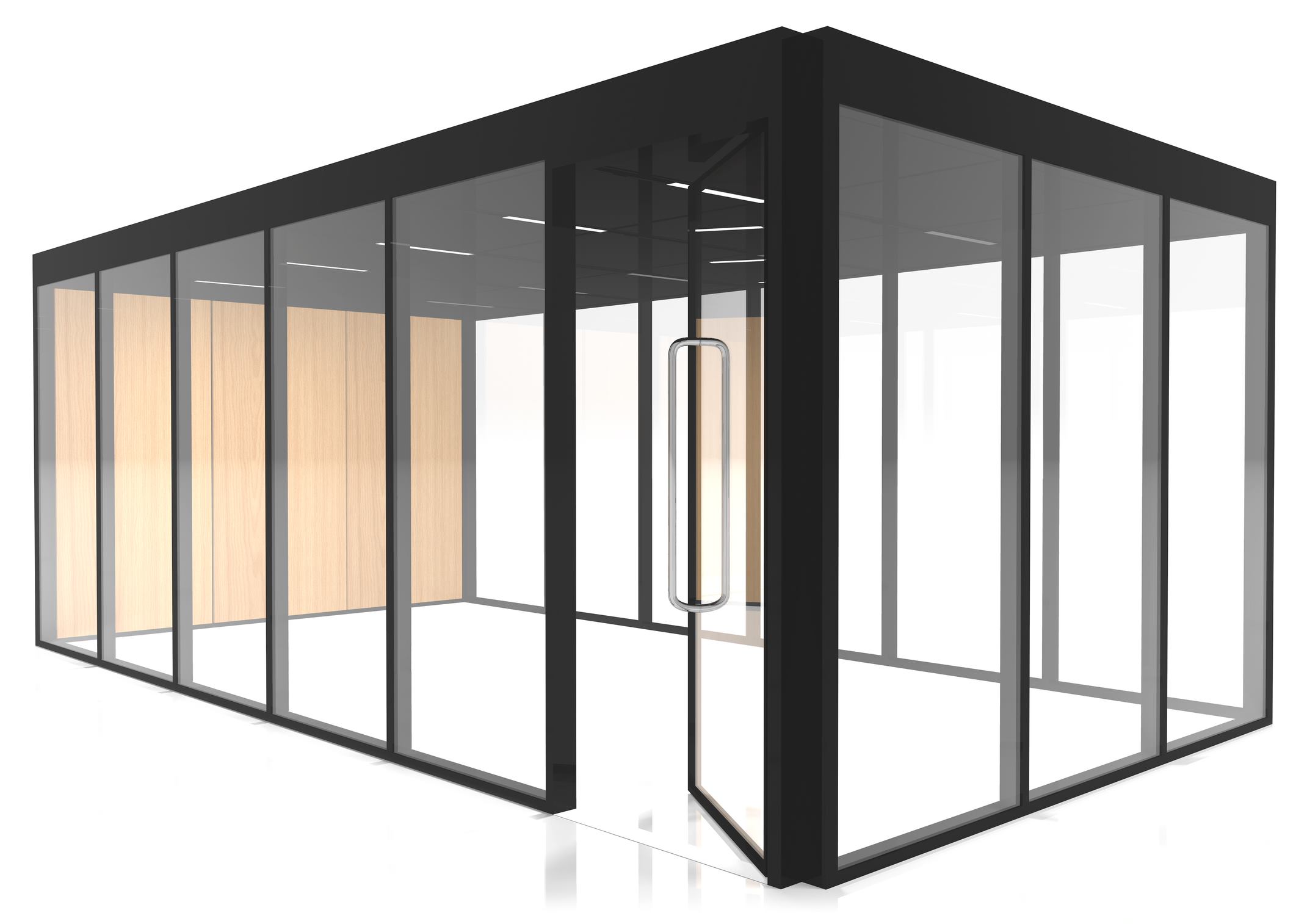

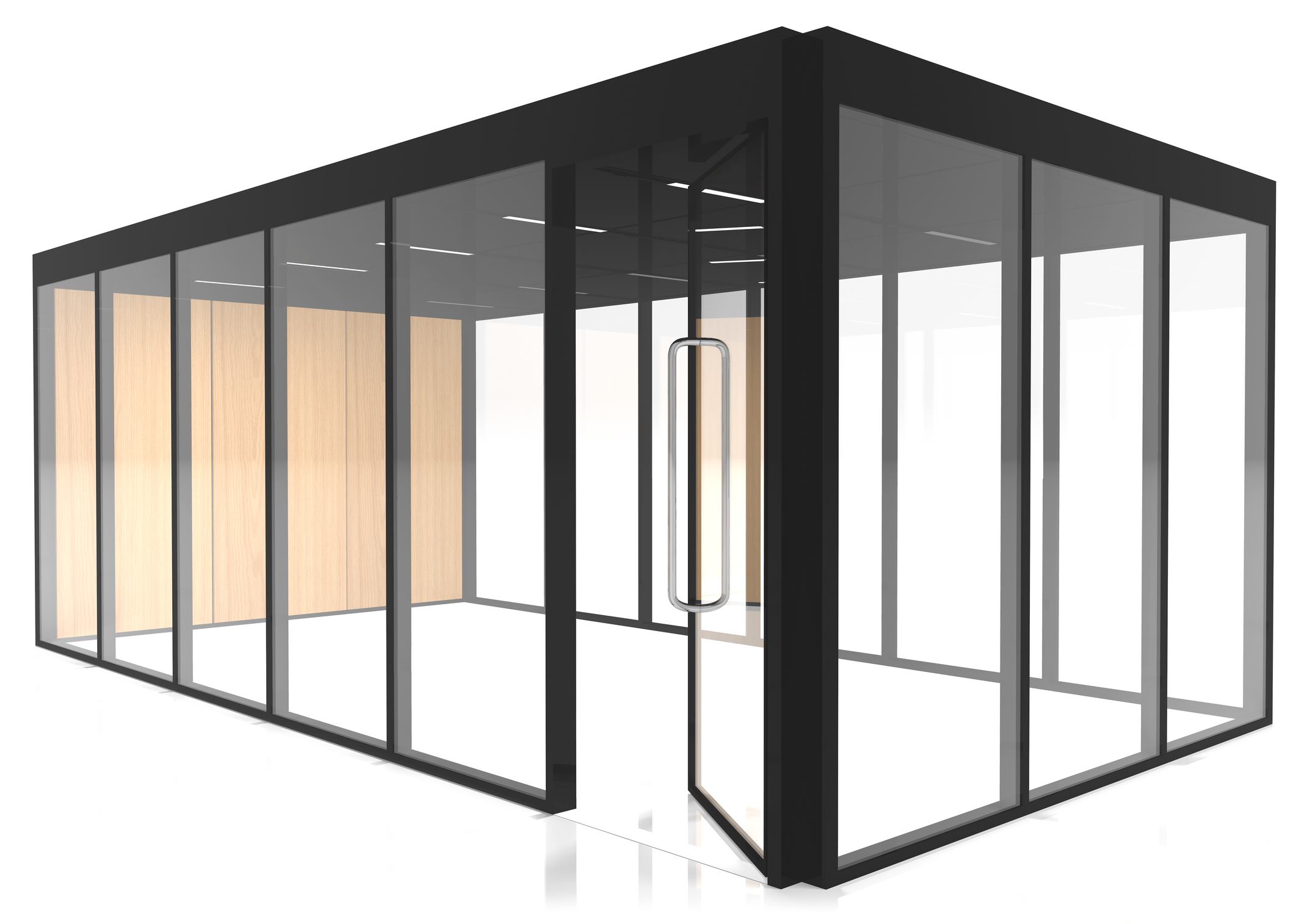

This EPD applies to an Optima 3m x 6m AMR with two 6m single-glazed walls (10.8mm laminated glass); one 3m wall comprising fabric-covered panels and one 3m wall comprising two laminate panels and one magnetic whiteboard panel (each panel 1m wide). The fabric used for the fabric-covered panels is 100% recycled polyester. The AMR includes an Optima Edge Symmetry door in the corner of one glazed wall. Internal lighting is provided by 15 LED lighting units arranged along five beams; power is supplied to the lighting and ventilation units through a single consumer box. This AMR is equipped with two top-mounted ventilation units. The AMR ventilation system is a dual-fan design that allows air to flow continuously into the room. The unglazed walls are filled with 50mm thick acoustic insulation.
Registration number | EPD-IES-0004721:002 (S-P-04721) |
---|---|
PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
Status | Valid |
Publication date | 2021-10-28 |
Valid until | 2026-10-27 |
EN 15804 compliant | Yes |
Geographical scope | United Kingdom |
LCA Practitioner | Chris Foster |
