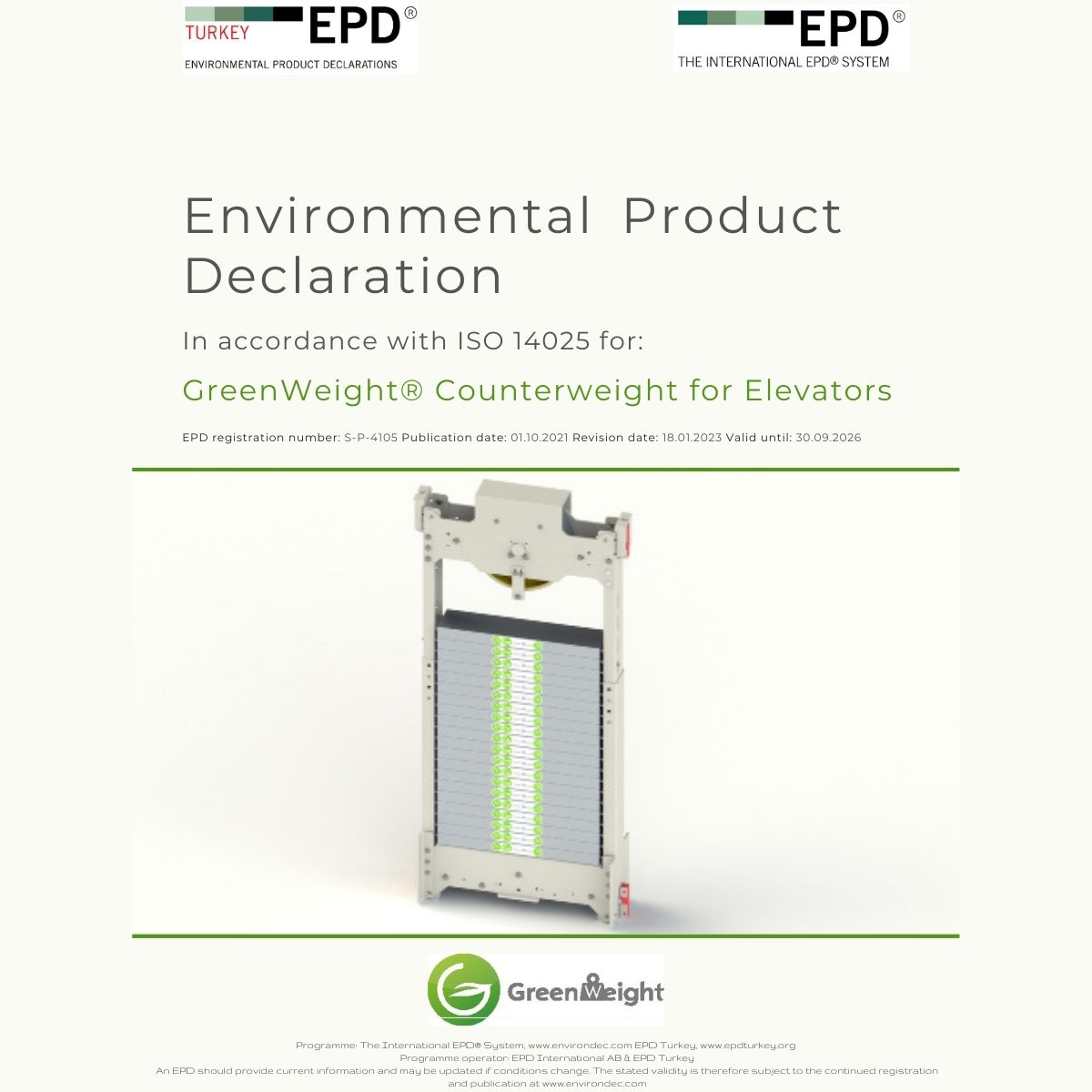

EPD-IES-0004105:002 (S-P-04105)
GreenWeight from Ergin Makina

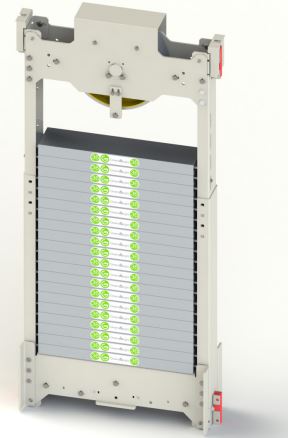

Balancing Weight (Counterweight) is a component that provides the traction force between the elevator drive pulley and the suspension ropes and consists of a series of weights to balance the weight of the cabin.
Elevator counterweight is a mechanical system that provides the balance and stability of the elevator car by applying counterforce. Its purpose is to make lifting the load more efficient, saving energy and exerting less reaction on the lifting machine. The ratio of the load in the cabin is usually taken as 50% of the rated load.
Two types of elevator filler weights are produced, with and without handles. The cross-sectional areas of the filler weights are 50x150 mm and production can be made from 250 mm to 980 mm in length.
| Registration number | EPD-IES-0004105:002 (S-P-04105) |
|---|---|
| PCR | 2014:10 Fabricated steel products, except construction products, machinery and equipment (replaced) 2.12 |
| Status | Valid |
| Publication date | 2021-10-01 |
| Valid until | 2026-09-30 |
| EN 15804 compliant | No |
| Geographical scope | Global |
