SG100 - Flush-bonded glazing door 100 mm

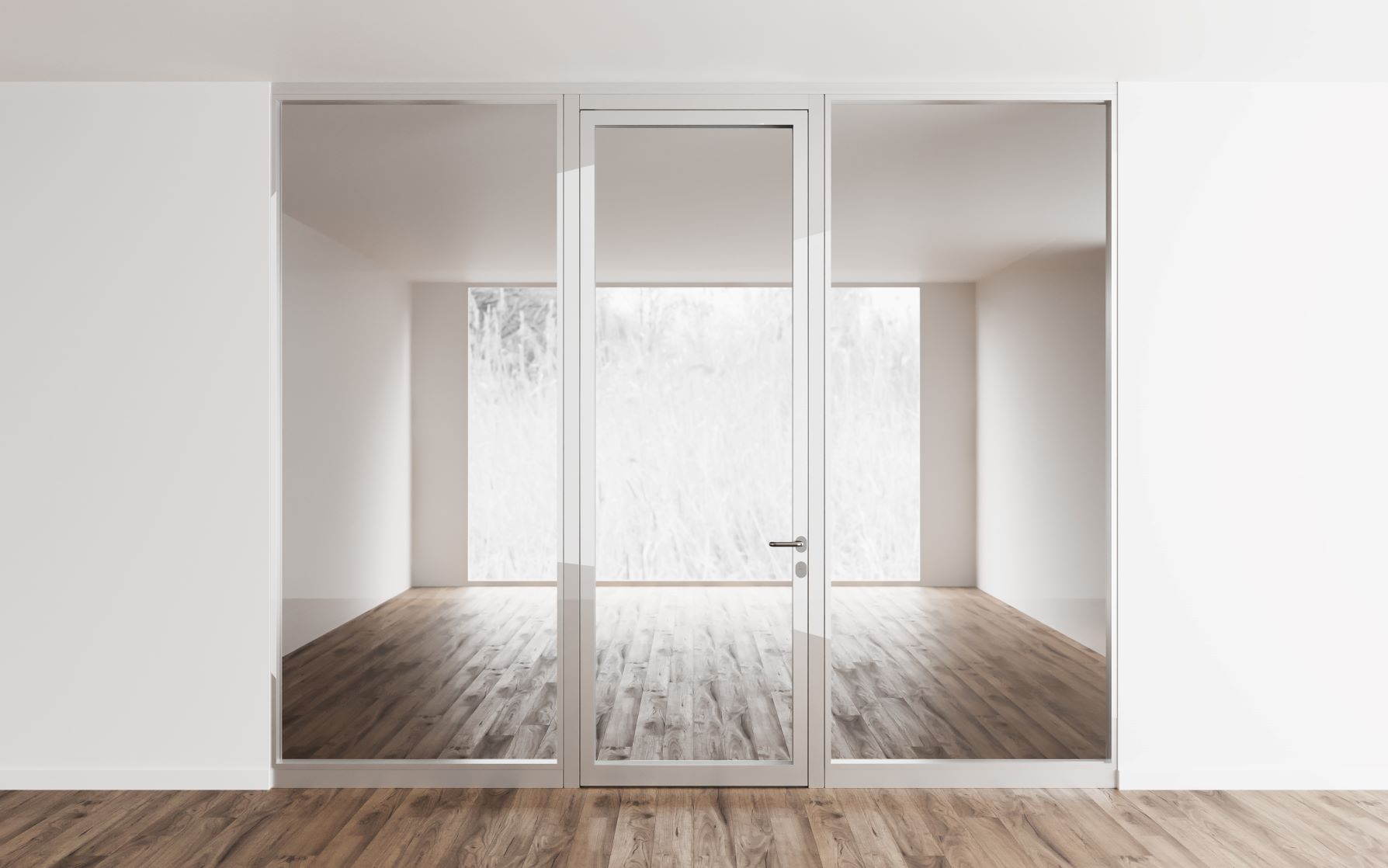

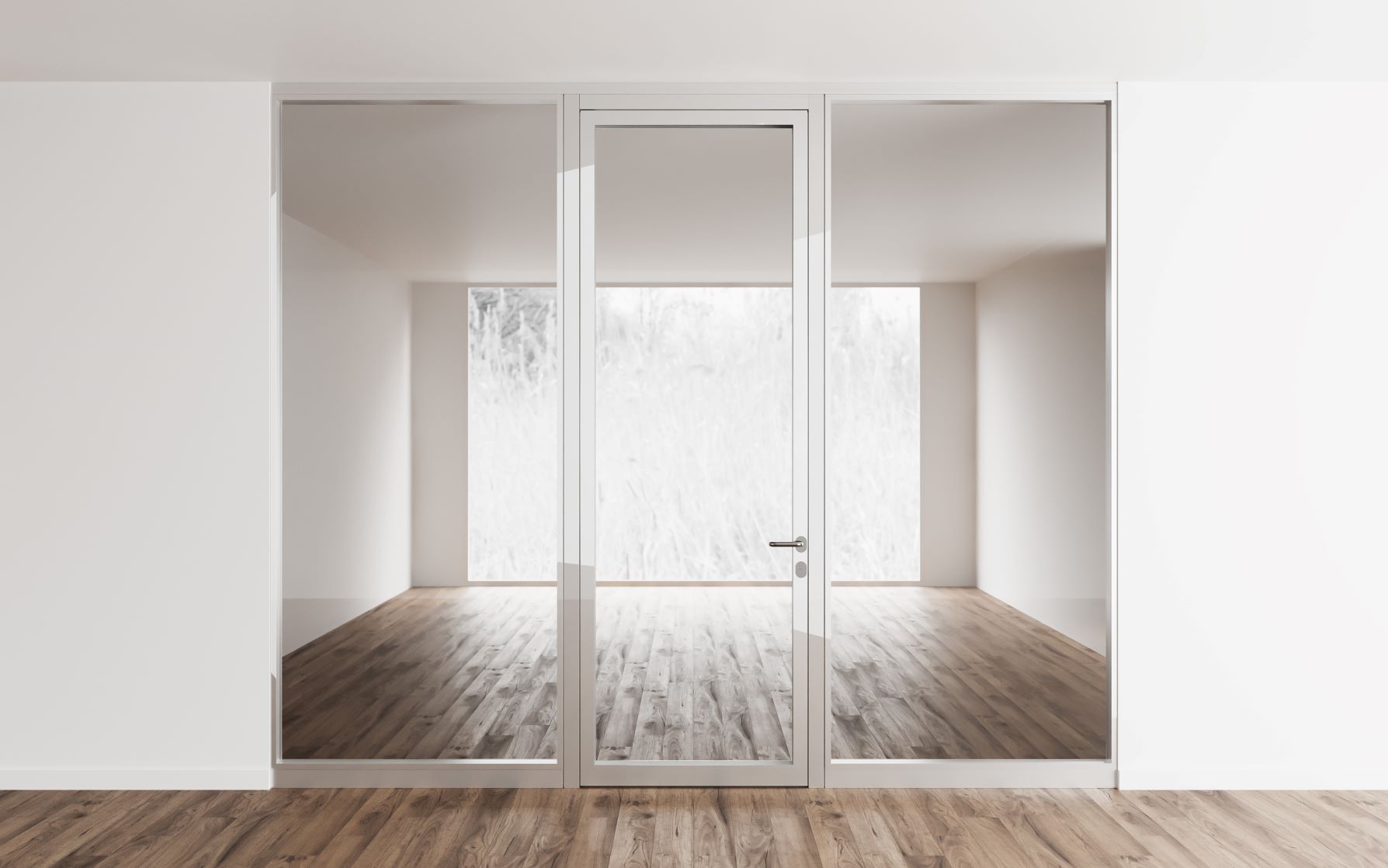

SG100 – FLUSH-BONDED DOUBLE-GLAZED DOOR

Transparent and highly soundproofed 100-mm thick door with hidden aluminium frame with double glazing, consisting of panes of 6-mm and 8-mm toughened glass.

As part of the structural glazing process, the flush-fit glazed elements on both sides are glued with a two-component adhesive onto the aluminium frame that runs around the rear. The door panel is sealed all around with two sealing profiles in the frame as well as a drop-down floor seal.

The door hinges are made from stainless steel and can be adjusted in three dimensions.

Also available as a double-leaf door. Flush-fitted with the frame on both sides.

A range of casing types means that the door can be incorporated into many partition wall systems.
