IsoTimber 300 mm wall element

Product name: IsoTimber 300 mm wall element Weight: 124 kg/m2U-value: 0,24 W/m2K

IsoTimber manufactures prefabricated wall elements in Östersund, Jämtland. The unique construction technology enables the production of heat insulating and load bearing walls consisting of mainly wood and air, no wind or plastic membrane or other insulating materials are required.

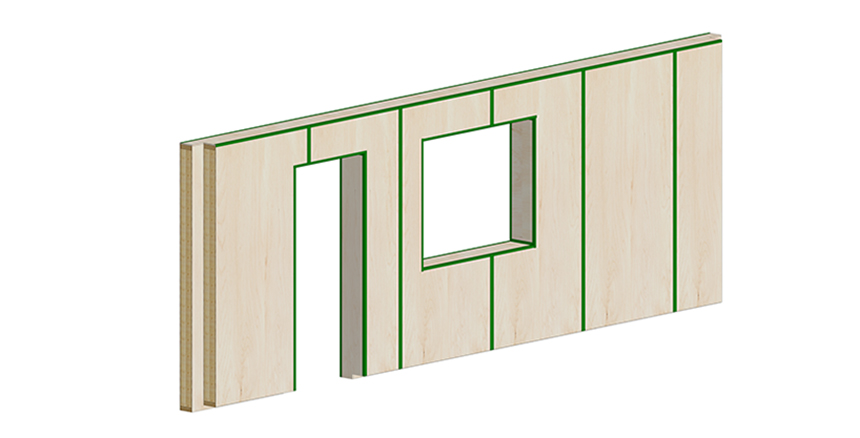

The 300 mm wall element is composed of two layers of IsoTimber panels with 150 mm thickness. The panels are produced from standing timber posts with milled air gaps, surrounded by a frame of solid timber studs, laminated between two sheets of thin plywood glued on both sides. The posts and studs are sourced from pine or spruce from Swedish forest. Two layers of panels are fixed together using screws and formed into wall elements designed for the specific building, with cut outs for doors and windows. All joints of the wall element are taped to stop air leakage.

IsoTimber delivers the wall elements to professional builders for use in all types of buildings, as external and partition walls. The wall system enables an effective building process on site.
