ABQM Flexo DN 15 -20

The reference product used for this EPD is representative of ABQM Flexo 003Z1634 (And products included in Annex). The production location is the Danfoss plant in Ljubljana, Slovenia. See more information on Danfoss Product Store.

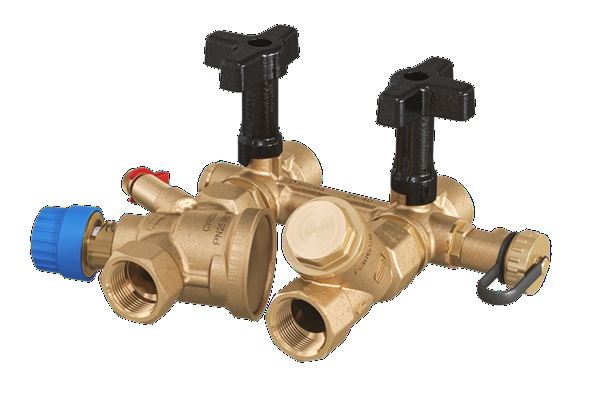

Danfoss AB-QM 4.0 Flexo with AB-QM valve, 3-way ball valve design, and 80mm centre distance is a compact and time-saving connection set. It’s designed for creating optimal hydronic balance in cooling and heating applications with the variable flow (such as fan coil units (FCU) or chilled beams). Flow is controlled by the AB-QM pressure independent control valve to avoid overflow and reduced efficiency of the thermal unit. The AB-QM Flexo product group is manufactured in two different dimensions: DN15 and DN20. Each dimension is available in both a left-hand and a right-hand version, which is only relevant for the product’s application. All products are made from the same components and differ only in their configuration. Each variant includes either a stainless-steel pipe or a strainer connection at the working connection. While all product variants use the same materials—except for the connection pipe—they differ in total mass.
