EPD-IES-0002953:002 (S-P-02953)

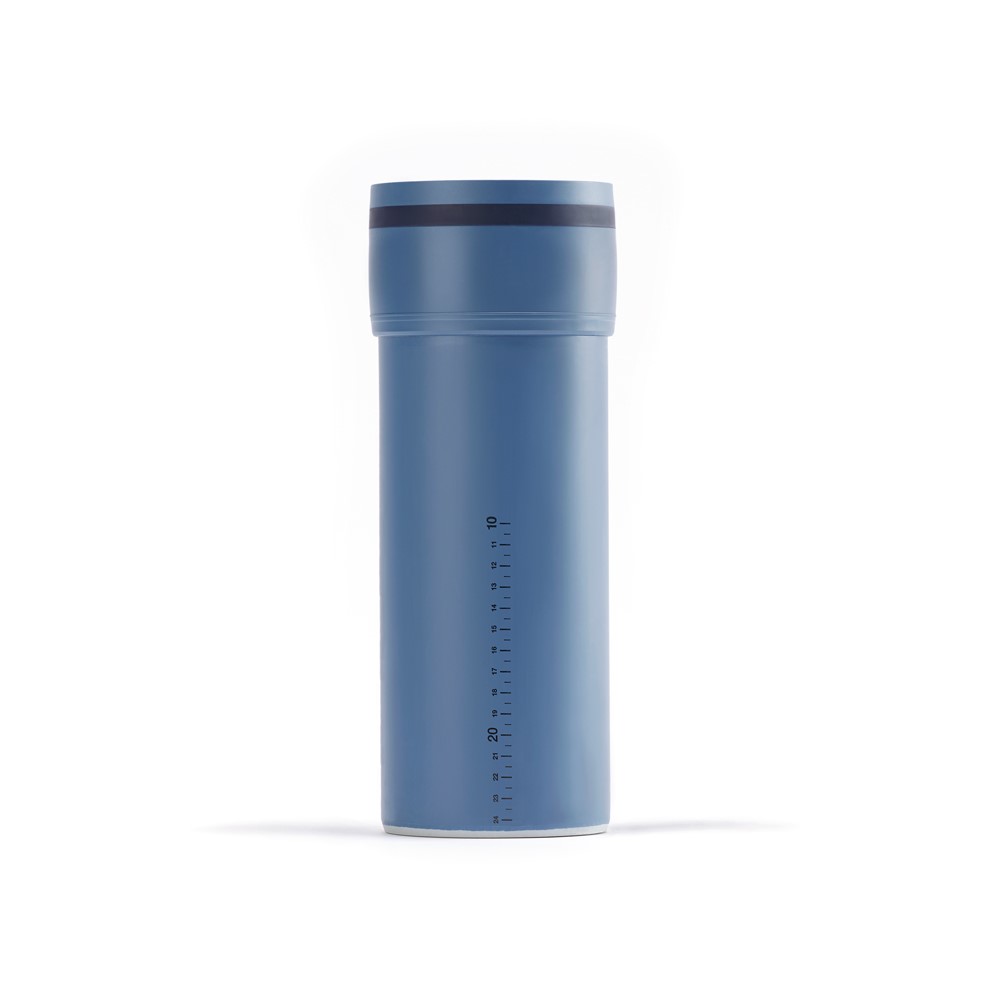

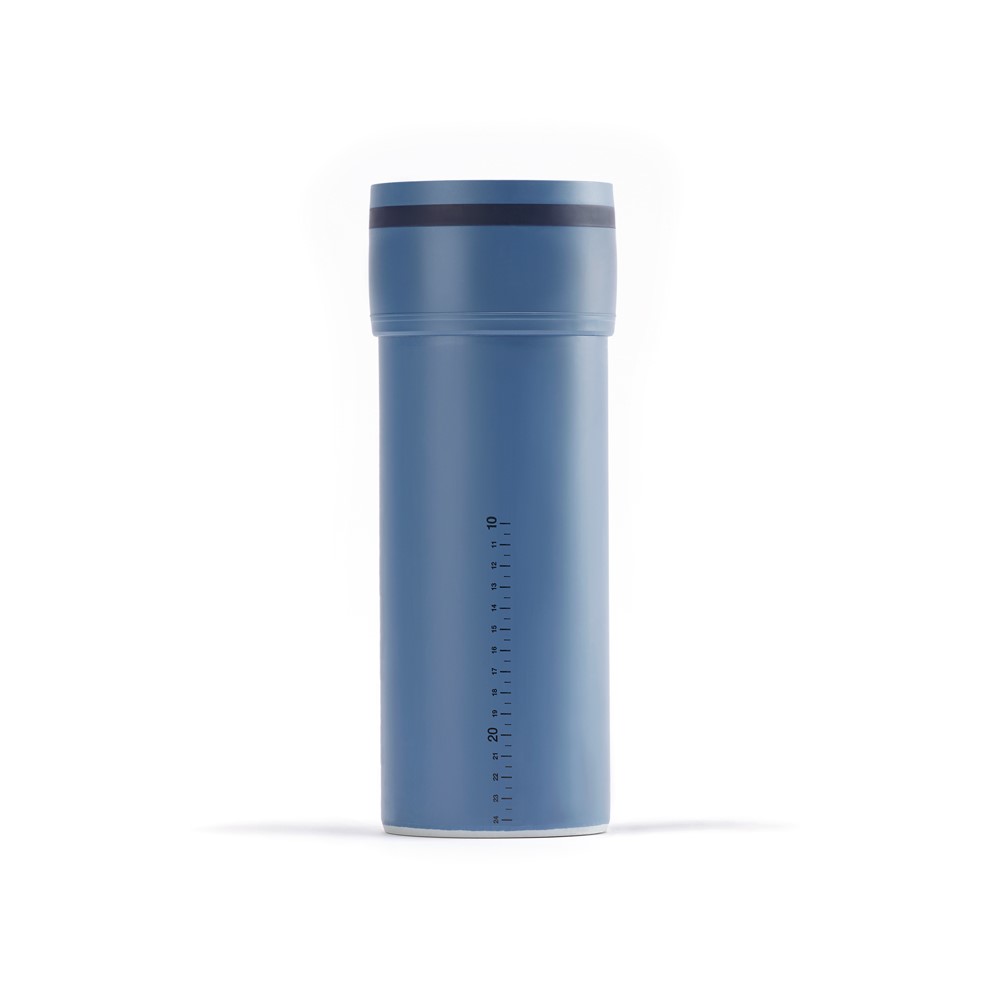

POLO-KAL XS
The POLO-KAL XS is designed as a highly sound-insulating multi-layer push-in socket pipe system for optimized transmission room values in the area of house drainage and covers a wide range of application areas.
Thanks to the innovative Monotec and funTec sleeve technology, pipe connections can be created without lubricants or chamfering. The integrated seal reduces the sleeve diameter and thus enables space-saving installation.
The ranges are divided into the following dimensions according to the outside diameter of the pipe (mm): DN32, DN40, DN50, DN75, DN90, DN110, DN125 and DN160. The wall thickness in mm/dimension: DN32-40, 1.8mm; DN 50, 2.0mm; DN75 2.6mm; DN90 3.0mm; DN110 3.4mm; DN125 3.9mm; DN160 4.9mm.
| Registration number | EPD-IES-0002953:002 (S-P-02953) |
|---|---|
| PCR | 2019:14 Construction products (EN 15804+A2) 1.3.4 |
| Status | Valid |
| Publication date | 2024-02-02 |
| Valid until | 2029-01-30 |
| EN 15804 compliant | Yes |
| Geographical scope | Europe |
