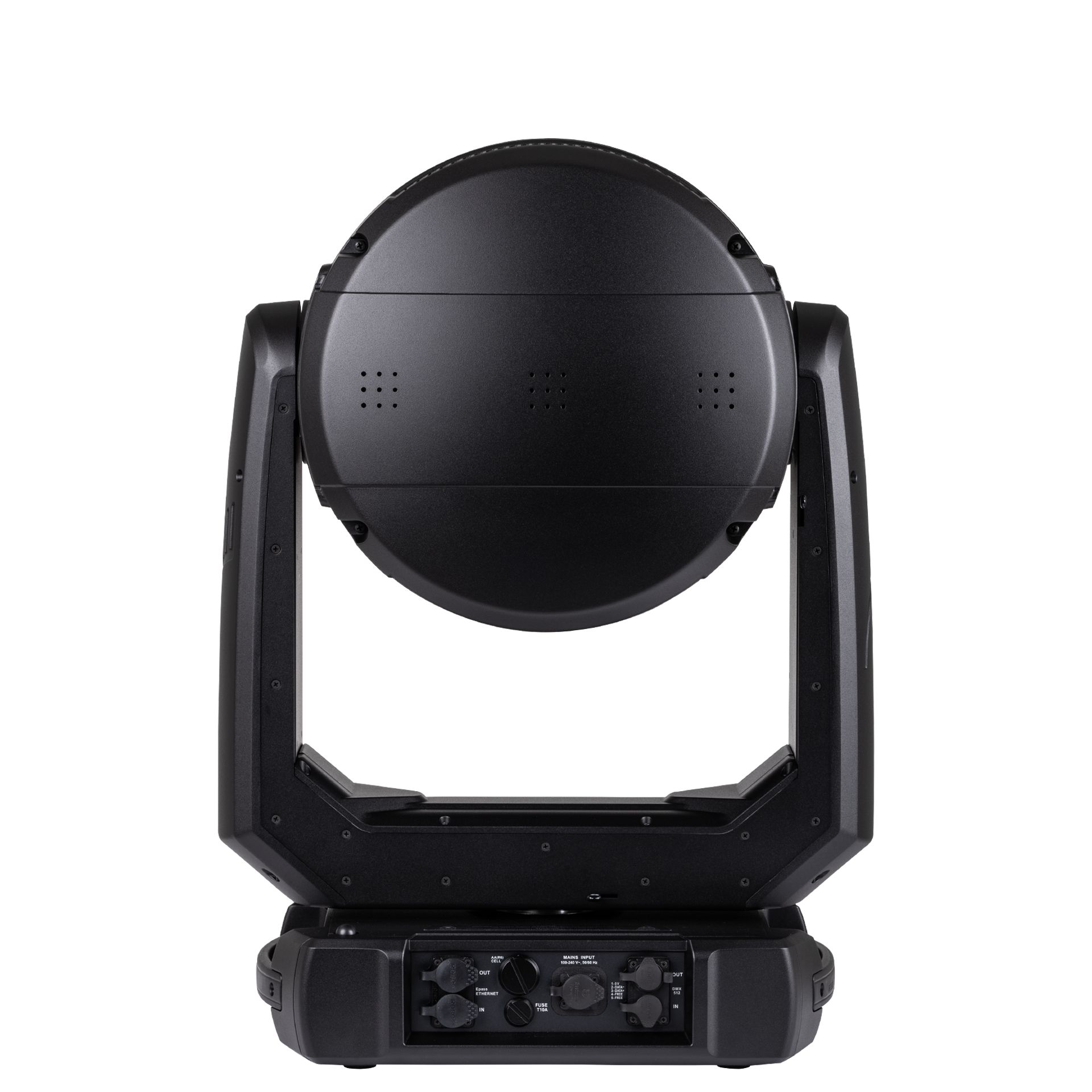

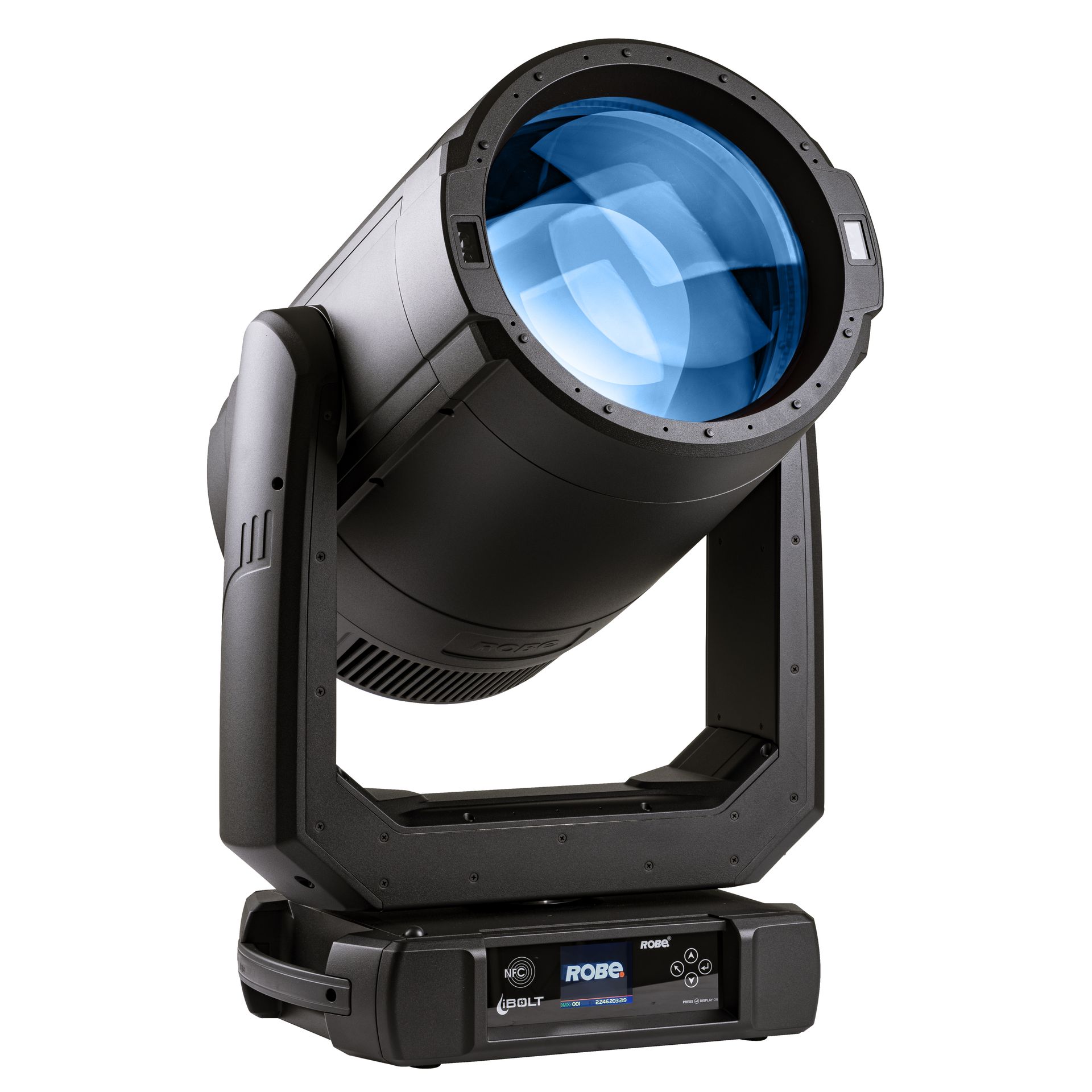

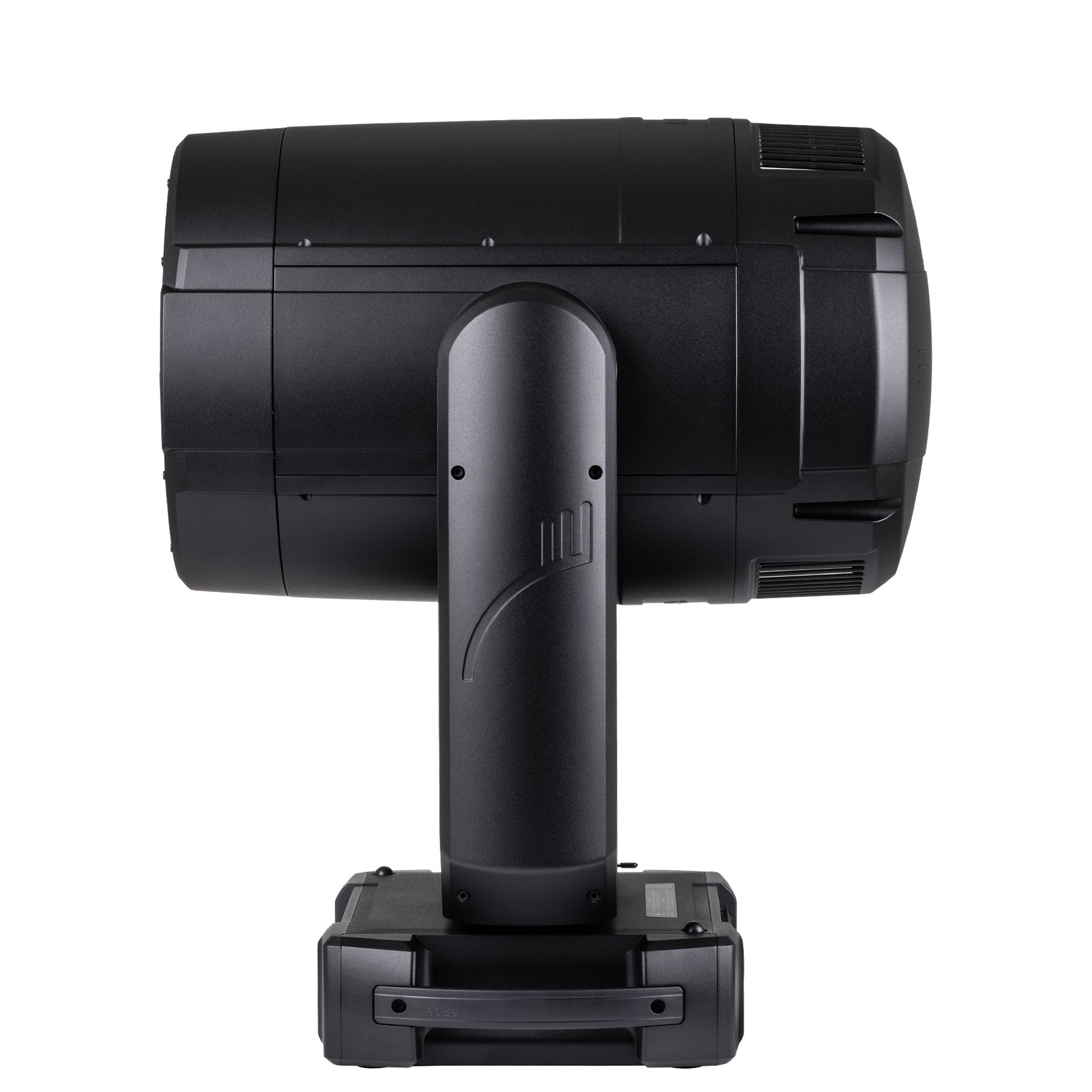

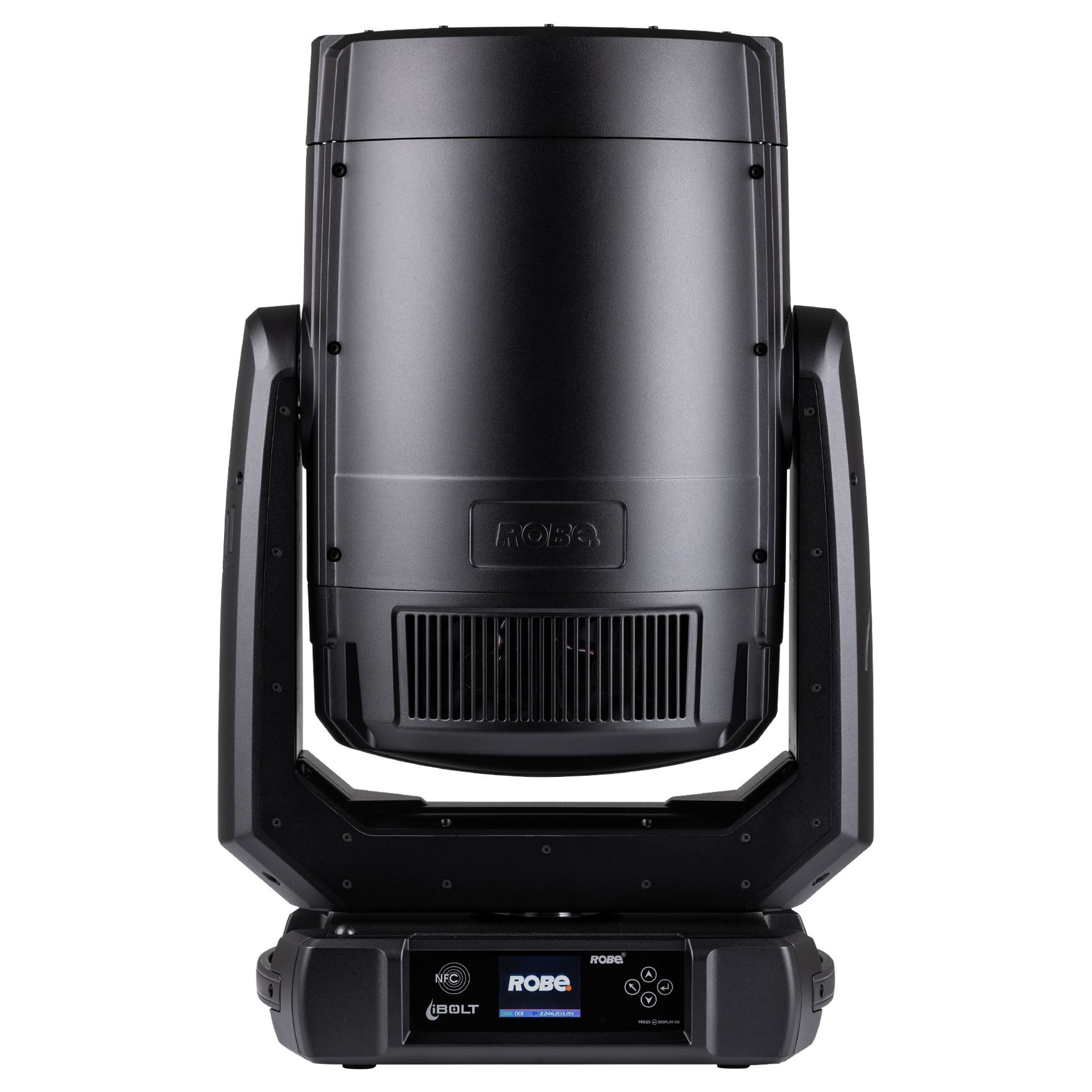

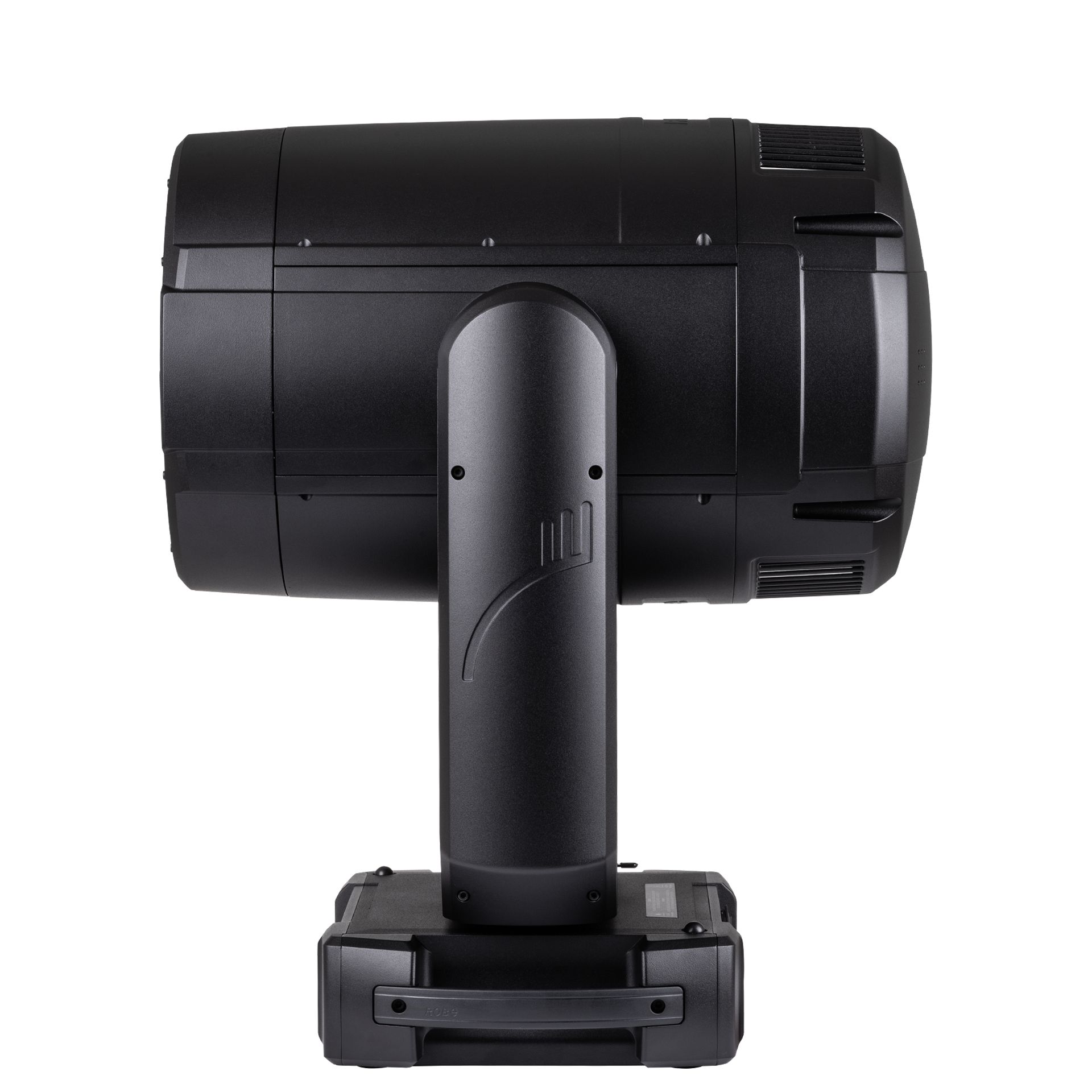

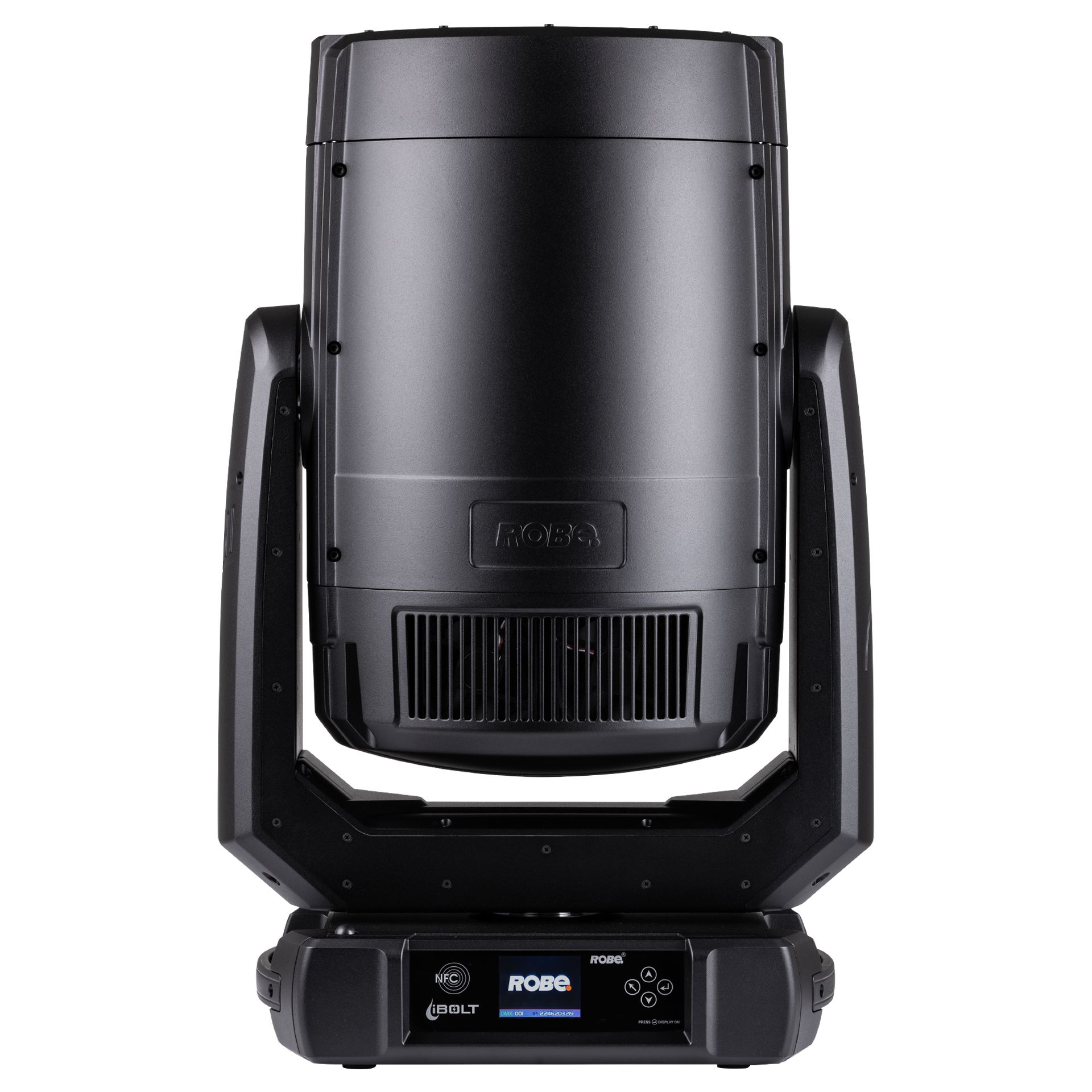

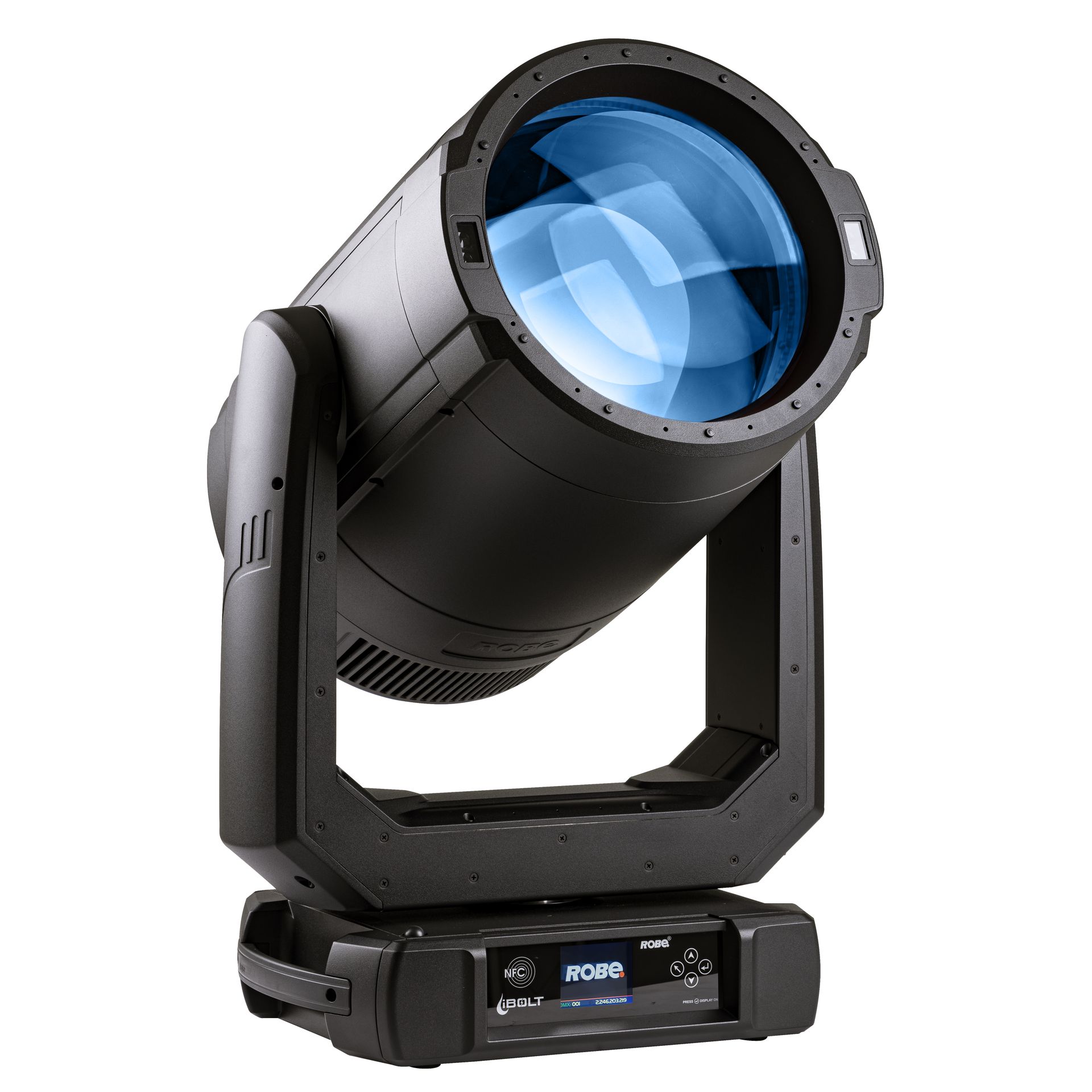

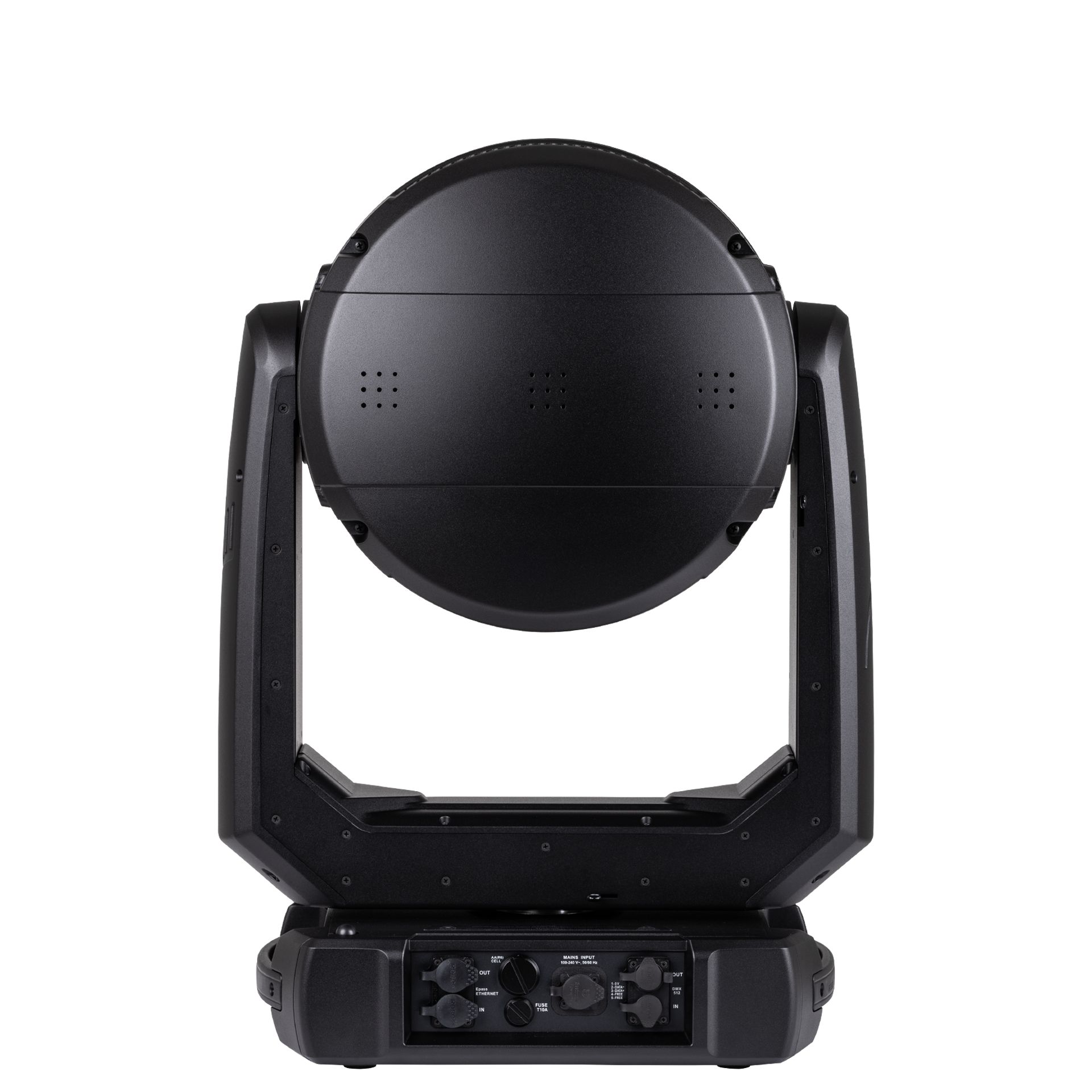

ROBIN iBOLT™

Highly and actively protected to operate in all environments, iBOLT™ projections are visible from kilometres away.

Designed to generate strong power, and be perfectly safe to use, was developed the LSW-5™ engine. Its white 500W Phosphor Laser source produces an incoherent beam with an incredible intensity of 1.100.000 lx @ 20 m (42.000 lx @ 100 m).

Harnessing the power to deliver such presence, the large 300mm front lens in combination with the optical chain delivers incisive beam definition. iBOLT™ has a zoom ratio of 40:1 with a zoom range of 0.4° - 8.5° hard edge, up to 16° soft edge, guaranteeing the creation of aerial shafts of light.

Maximising colour options, iBOLT™ features a CMY colour mixing system and a colour wheel with 13 dichroic colours and an onboard DataSwatch™ colour library, including the most commonly used whites, you have the tools to cover everything from the dense saturates to the most refined pastel tones.

iBOLT™ offers an expansive effects suite, boasting static and rotating gobo wheels along with beam reducers tailored for in-air effects (f.e. SpektraBeam™ effects).

The inclusion of a CMY + Colour wheel, complemented by the DataSwatch™ library, grants access to an extensive palette of colours. Within the comprehensive iBOLT™ effects package, you‘ll find gobo wheels and our patented MLP™ stackable multi-level prisms, which enable independent speed and direction control. Combined with continuous PAN rotation, this unlocks a plethora of effects.

To swirl around the sky, iBOLT™ has a pan movement range of 540° with continuous rotation control. The MAPS™ Motionless Absolute Positioning System removes the need for pre-use pan and tilt calibration movement, while EMS™ Electronic Motion Stabilizer technology negates fixture hysteresis, removing irritating beam shake often associated with larger fixtures.

For all environment operation, iBOLT™ has the most advanced, patented IP65 protection available. The RAINS™ Robe Automatic Ingress Protection System not only prevents ingress, it actively manages the fixture‘s internal microclimate, removing internal moisture build-up automatically. The system even runs an ingenious Self Pressure Test, without specialised tools, to check internal pressure buildup, ensuring maximum protection.

For operation in extreme cold, the iBOLT™ has our innovative POLAR+™ technology. When activated, the POLAR+™ standby mode will automatically maintain an internal temperature level, allowing instant operability down to minus 50 degrees centigrade.

iBOLT™ has a patented, constantly scanning ScanGuard™ system which instantly reduces fixture output if someone gets within a direct, unsafe viewing distance.

Ideally suited for remote outdoor installations, iBOLT™ uses REAP™ Robe Ethernet Access Portal communication software, viewed as a web browser, giving real-time fixture monitoring of all parameters, including complete RAINS™ status information.

Parameters:

• Light source: LSW-5™ 500W White Laser Source
• Light output: 42.000 lx @ 100 m, 1.100.000 lx @ 20 m, 16.500.000 lx @ 5 m
• Zoom range: 0.4° - 8.5° hard edge, up to 16° soft edge
• Zoom optical system: 40:1
• Effects: Frost, Static gobo wheel, Rotating gobo wheel, colour wheel, continual PAN
