EPD-IES-0029262:001

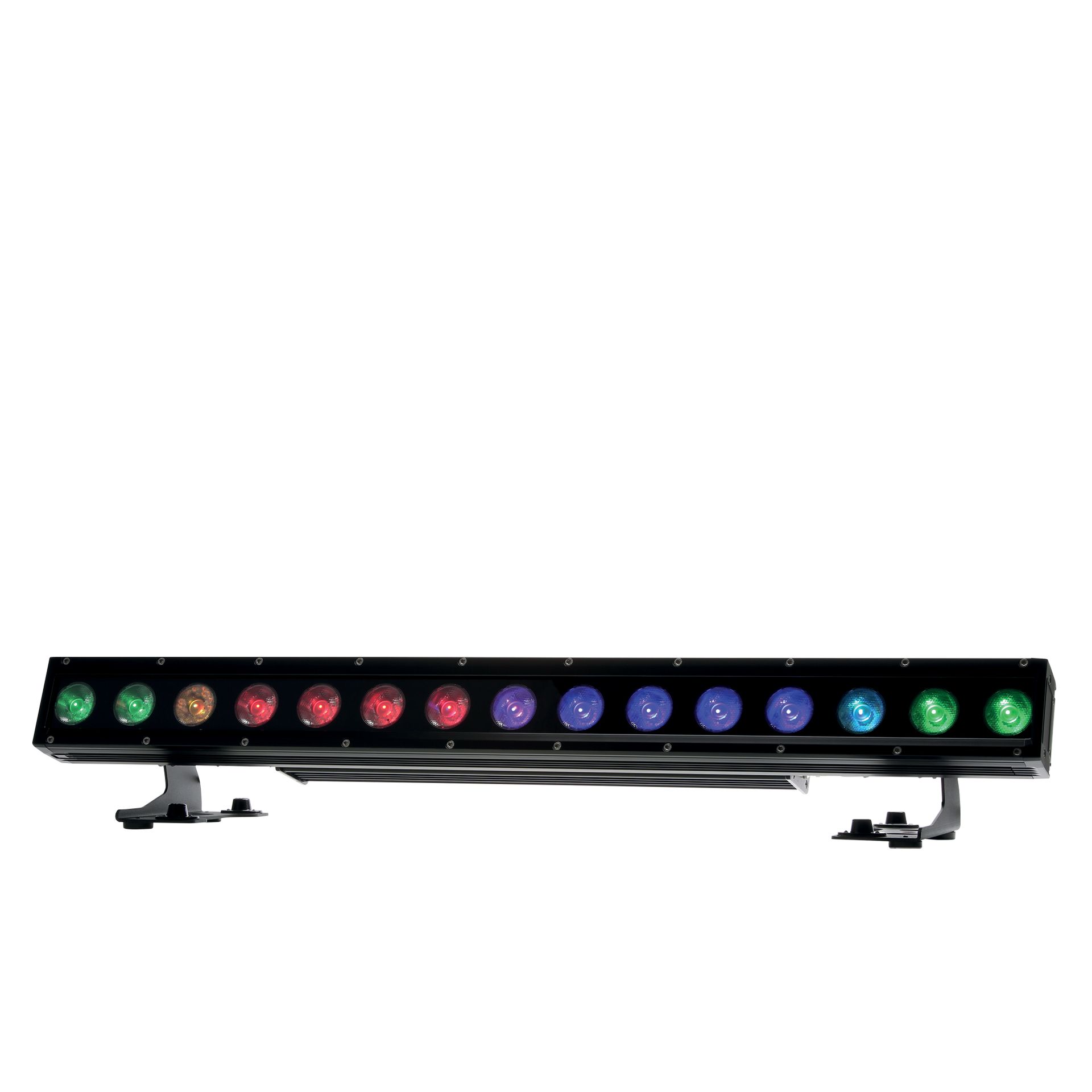

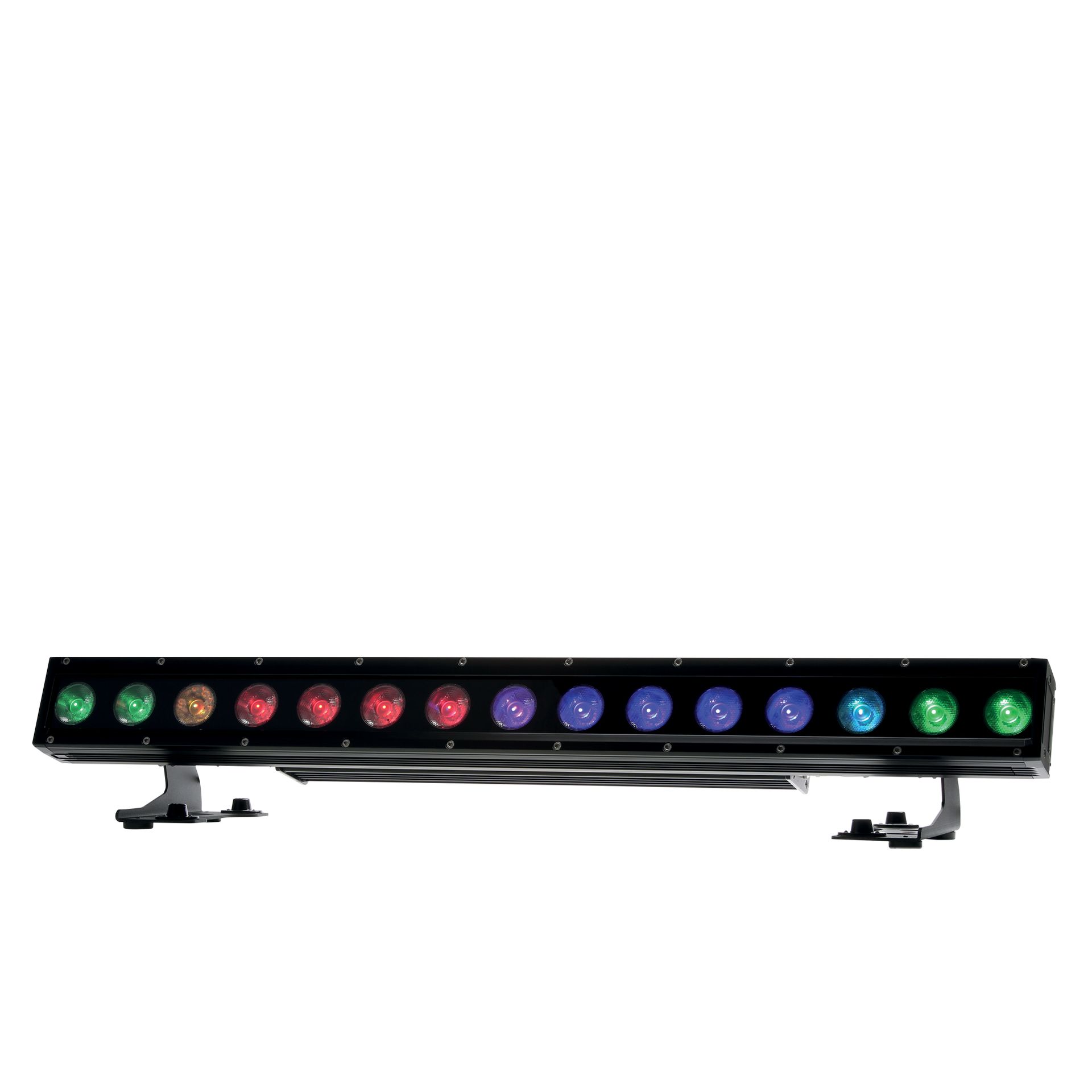

ROBIN iBar 15™

iBar 15 is a lightweight static IP65 rated 1.000mm linear bar which uses 15 equally spaced new generation of 30% brighter 15W RGBW multichip LEDs for enhanced 18-bit smooth colour mixing and linear diming without RGB 'breakup' or grey shadows.

A fixed 7.5° but redefinable beam angle offers optional diffusers, now with a new system of split filters allowing three different beam angles per entire iBar and generating asymmetrical light output for use as a high-quality cyc light. Optional barn door can trim the beam if required. The advanced pixel control based driver software provides special features including a virtual colour wheel with pre-programmed colours and a set of true whites with CTO Tungsten lamp emulation and more. The practical and highly readable small display provides a menu with personality settings plus DMX and RDM protocols.

The two combined feet / brackets can now be easily adjusted by sliding them in the profile at the back of bar to fit various different types of trusses without using any tools.

Parameters:

  • Light source: 15x 15W RGBW LED multichips
  • Light output: 5.920 lx @ 5 m / 6.280 lm
  • Zoom range: 7.5° + optional diffusers
  • Effects: pixel control, colour rainbow effect, pre-programmed colours and whites
New
Registration numberEPD-IES-0029262:001
StatusValid
Version date2026-03-16
Validity date2031-03-16
PCR2024:06 Electronic and electric equipment, and electronic components (non-construction) (EN 50693) 1.0.1
c-PCR2024:06-c-PCR-002 Luminaires 1.0.0
Standards conformanceISO 14025:2006
Geographical scopeGlobal, Czech Republic, Europe
LCA PractitionersTatiana Trecakova, tatiana.trecakova@lcastudio.cz, LCAstudio
