EPD-IES-0028656:001

100% recycled (PCR) Plastic Cable Drums

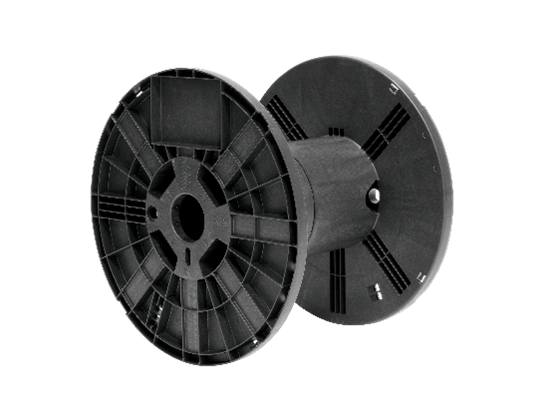

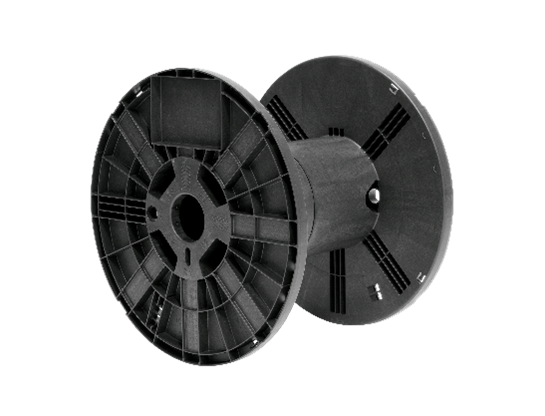

Cable drum, 100% Recycled (PCR), used for cable packaging.

Registration number	EPD-IES-0028656:001
Status	Valid
Version date	2026-04-13
Validity date	2031-04-12
PCR	2019:14 Construction products (EN 15804+A2) (version 2.0.1)
Standards conformance	ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021
Geographical scope	Europe

Company name	Axjo Europe AB
Country	Sweden
Contact	invoice@axjo.com
Website	https://www.axjo.com
LCA Practitioner	Hanna Andreasson, hannaandreasson@miljogiraff.se oline@miljogiraff.se

All products included in this EPD are plastic cable drums, 100% recycled (PCR). 199 variations will be included in this product group, and they all consist solely out of 100% post-consumer recycled plastic. Each product has the same type of composition, and only the size and dimensions of the products differ. All included products share the same geographical scope and production site. The cable drum “400/300 light (dimension 400*175*75*337*301), product code 240269010” was chosen as representative product as it is the most sold of all the products in this product group. Since the products only consist of 1 material and because the declared unit is 1 kg of product, there will be no difference in the result for the included products of this group in this EPD. However, the total weight of the included products differs between around 0.4-10 kg.

Product code Dimension of the cable drums (mm)

228033010 Reel 280 * 110 * 33 * 165 * 145 mm.

228035015 Reel 280 * 110 * 70 * 165 * 145 mm

228037010 Reel 280 * 110 * 75 * 165 * 145 mm with U-hole

228037015 Reel 280 * 110 * 75 * 165 * 145 mm

228038010 Reel 280 * 110 * 56 * 165 * 145 mm

228040014 Reel 282 * 120 * 75 * 183 * 172 mm

228040016 Reel 280 * 180 * 75 * 181 * 176 mm

228040018 Reel 282 * 180 * 75 * 180 * 171 mm

228040023 Reel 282 * 180 * 75 * 180 * 171 mm

228042015 Reel 282 * 180 * 75 * 180 * 171 mm

228050010 Reel 280 * 120 * 101 * 181 * 176 mm

228050015 Reel 280 * 180 * 101 * 181 * 176 mm

228067010 Reel 280 * 110 * 75 * 200 * 180 mm

228067019 Reel 280 * 110 * 75 * 200 * 180 mm with U-hole

228133010 Reel 280 * 110 * 33 * 250 * 230 mm.

228137010 Reel 280 * 110 * 75 * 250 * 230 mm.

228177010 Reel 280 * 110 * 75 * 300 * 280 mm.

228240010 Reel 280 * 120 * 75 * 181 * 176 mm

228240015 Reel 282 * 120 * 75 * 183 * 172 mm

228242010 Reel 282 * 180 * 75 * 184 * 174 mm

230155019 Reel 318 * 148 * 70 * 294 * 264 mm V-hole

230158010 Reel 318 * 148 * 70 * 294 * 264 mm

230158019 Reel 318 * 148 * 70 * 294 * 264 mm V-hole

230159010 Reel 318 * 148 * 75 * 294 * 264 mm

230159019 Reel 318 * 148 * 75 * 294 * 264 mm V-hole

230160019 Reel 318 * 148 * 75 * 294 * 264 mm V-hole

230165019 Reel 318 * 148 * 83 * 294 * 264 mm V-hole

233877010 Reel 338 * 115 * 111 * 380 * 372 mm

235570010 Reel 355 * 170 * 32 * 337 * 305 mm

235571010 Reel 355 * 171 * 38,5 * 337 * 305 mm

235572010 Reel 355 * 171 * 75 * 337 * 305 mm

235573010 Reel 355 * 171 * 75 * 337 * 305 mm

235575010 Reel 355 * 171 * 38,5 * 337 * 305 mm

235576019 Reel 355 * 171 * 75 * 337 * 305 mm / V-hole

236569010 Reel 365 * 130 * 80 * 320 * 310 mm

237515018 Reel 375 * 200 * 196 * 71 * 65 mm.

237517018 Reel 375 * 200 * 196 * 118 * 110 mm / Special

237538010 Reel 375 * 160 * 156 * 170 * 165 mm

237838010 Reel 378 * 160 * 156 * 170 * 161 mm

239073010 Reel 390 * 200 * 75 * 360 * 320 mm with caps

239074019 Reel 390 * 200 * 75 * 360 * 320 mm with caps / V-hole

239084019 Reel 390 * 125 * 56 * 445 * 415 mm

239085010 Reel 390 * 125 * 56 * 445 * 415 mm

239085019 Reel 390 * 125 * 56 * 445 * 415 mm / NKT

239086010 Reel 390 * 125 * 75 * 445 * 415 mm

239086019 Reel 390 * 125 * 75 * 445 * 415 mm

239087010 Reel 390 * 125 * 83 * 445 * 415 mm

240068010 Reel 400 * 175 * 75 * 340 * 300 mm. V-hole

240068012 Reel 400 * 175 * 75 * 340 * 300 mm. V-hole

240068017 Reel 400 * 175 * 75 * 340 * 300 mm Light

240068019-L Reel 400 * 175 * 75 * 340 * 300mm. V-hole

240071011-L Reel 400 * 175 * 75 * 340 * 300mm

240071015 Reel 400 * 175 * 75 * 340 * 300 mm.

240071015-L Reel 400 * 175 * 75 * 340 * 300mm

240133010 Reel 400 * 175 * 36 * 146 * 106 mm

240146010 Reel 400 * 175 * 100 * 210 * 170 mm

240146015 Reel 400 * 175 * 100 * 210 * 170 mm

240147010 Reel 400 * 175 * 36 * 210 * 170 mm

240147015 Reel 400 * 175 * 36 * 210 * 170 mm

240148010 Reel 400 * 175 * 75 * 210 * 170 mm.

240157010 Reel 400 * 175 * 75 * 275 * 235 mm

240157019 Reel 400 * 175 * 75 * 275 * 235 mm V-hole

240158010 Reel 400 * 175 * 100 * 275 * 235 mm

240159010 Reel 400 * 175 * 36 * 275 * 235 mm

240160019 Reel 400 * 175 * 80 * 275 * 235 mm V-hole

240168010 Reel 400 * 175 * 56 * 318 * 300 mm. U-hole

240168019 Reel 400 * 175 * 75 * 340 * 300mm. V-hole

240169010 Reel 400 * 175 * 75 * 318 * 300 mm. U-hole

240170010 Reel 400 * 175 * 56 * 340 * 300 mm

240170015 Reel 400 * 175 * 56 * 340 * 300 mm

240170019 Reel 400 * 175 * 56 * 340 * 300 Windak

240171010 Reel 400 * 175 * 83 * 340 * 300 mm

240172010 Reel 400 * 175 * 75 * 340 * 300 mm

240172015 Reel 400 * 175 * 75 * 340 * 300 mm

240172019 Reel 400 * 175 * 75 * 340 * 300 mm V-hole

240173019 Reel 400 * 175 * 56 * 340 * 300 mm U-hole

240174819 Reel 400 * 175 * 80 * 340 * 300 mm. V-hole

240175019 Reel 400 * 175 * 66,75 * 343 * 300 mm

240176019 Reel 400 * 175 * 66 * 343 * 300 mm

240177010 Reel 400 * 202 * 75 * 380 * 340 mm

240177015 Reel 400 * 202 * 75 * 380 * 340 mm

240177019 Reel 400 * 202 * 75 * 370 * 330 mm V-hole

240178010 Reel 400 * 202 * 80 * 380 * 340 mm

240179019 Reel 400 * 150 * 75 * 440 * 400 mm. V-hole

240180019 Reel 400 * 175 * 75 * 340 * 300 mm

240182019 Reel 400 * 202 * 75 * 440 * 400 mm. V-hole

240183019 Reel 400 * 202 * 75 * 440 * 400 mm / V-hole

240184019 Reel 400 * 202 * 75 * 440 * 400 mm / V-hole

240184819 Reel 400 * 202 * 82 * 440 * 400 mm V-hole

240185019 Reel 400 * 202 * 82 * 440 * 400 mm

240250019 Reel 400 * 150 * 75 * 256 * 220 mm / V-hole

240252019 Reel 400 * 150 * 80 * 256 * 220 mm / V-hole

240268010 Reel 400 * 175 * 76 * 337 * 301 mm / V-hole

240269010 Reel 400 * 175 * 76 * 337 * 301 mm / V-hole (representative product)

240270019 Reel 400 * 175 * 76 * 337 * 301 mm / V-hole

240275015 Reel 400 * 150 * 75 * 346 * 310 mm / V-hole

240275019 Reel 400 * 150 * 75 * 346 * 310 mm / V-hole

240275019-15 Reel 400 * 150 * 75 * 346 * 310 mm / V-hole

240277019 Reel 400 * 150 * 75 * 346 * 310 mm / V-hole

240278019 Reel 400 * 150 * 83 * 346 * 310 mm / V-hole

240280119 Reel 400 * 150 * 56 * 455 * 415 mm U-hole

240281119 Reel 400 * 150 * 56 * 455 * 415 mm U-hole

240282019 Reel 400 * 150 * 80 * 455 * 415 mm U-hole

240285019 Reel 400 * 150 * 75 * 505 * 465 mm / V-hole

240287019 Reel 400 * 150 * 82 * 505 * 465 mm / V-hole

240469010 Reel 400 * 175 * 76 * 337 * 301 mm / V-hole / G4

243585010 Reel 435 * 125 * 56 * 445 * 415 mm

243587010 Reel 435 * 125 * 83 * 445 * 415 mm

243587019 Reel 435 * 125 * 83 * 445 * 415 mm

243590019 Reel 435 * 125 * 56 * 485 * 445 mm

243592019 Reel 435 * 125 * 56 * 485 * 445 mm

245170015 Reel 450 * 250 * 75 * 330 * 300 mm U-hole + labelplate

245170019 Reel 450 * 250 * 75 * 330 * 290 mm / V-hole

245171010 Reel 450 * 250 * 83 * 330 * 300 mm

245171019 Reel 450 * 250 * 83 * 330 * 300 mm U-hole

245172019 Reel 450 * 250 * 75 * 330 * 300 mm U-hole

245173019 Reel 450 * 250 * 82 * 330 * 290 mm / V-hole

248150019 Reel 480 * 202 * 75 * 380 * 340 mm

248151019 Reel 480 * 202 * 75 * 380 * 340 mm / V-hole * 4

248156010 Reel 480 * 202 * 75 * 380 * 340 mm

248157010 Reel 480 * 202 * 75 * 380 * 340 mm

248157015 Reel 480 * 202 * 75 * 380 * 340 mm

248158010 Reel 480 * 202 * 75 * 380 * 340 mm

248160010 Reel 480 * 202 * 75 * 380 * 340 mm

248175019 Reel 480 * 202 * 75 * 440 * 400 mm V-hole

248176019 Reel 480 * 202 * 75 * 440 * 400 mm V-hole

248177019 Reel 480 * 202 * 80 * 440 * 400 mm V-hole

250184011 Reel 500 * 150 * 56 * 444 * 404 mm U-hole

250184015 Reel 500 * 150 * 56 * 444 * 404 mm

250184016 Reel 500 * 150 * 56 * 444 * 404 mm. / Small V-hole

250184017 Reel 500 * 150 * 56 * 444 * 404 mm U-hole

250184018 Reel 500 * 150 * 56 * 444 * 404 mm U-hole

250184019 Reel 500 * 150 * 56 * 444 * 404 mm U-hole

250184030 Reel 500 * 150 * 56 * 444 * 404 mm

250185010 Reel 500 * 150 * 75 * 444 * 404 mm

250185015 Reel 500 * 150 * 75 * 444 * 404 mm U-hole

250186010 Reel 500 * 150 * 83 * 444 * 404 mm

250186019 Reel 500 * 150 * 83 * 444 * 404 mm V-hole

250187019 Reel 500 * 150 * 80 * 444 * 404 mm U-hole

250188019 Reel 500 * 150 * 56 * 444 * 404 mm / Big u-hole

250189019 Reel 500 * 150 * 56 * 444 * 404 mm / Big u-hole

250190019 Reel 500 * 150 * 56 * 444 * 404 mm / Big u-hole

260126019 Reel 600 * 250 * 83 * 340 * 300 mm

260127010 Reel 600 * 250 * 56 * 340 * 300 mm

260127015 Reel 600 * 250 * 75 * 340 * 300 mm / Square-hole

260127019 Reel 600 * 250 * 75 * 340 * 300 mm / Square-hole

260128010 Reel 600 * 250 * 75 * 340 * 300 mm

260128019 Reel 600 * 250 * 75 * 340 * 300 mm V-hole

260129019 Reel 600 * 250 * 83 * 340 * 300 mm V-hole

260130010 Reel 600 * 250 * 83 * 340 * 300 mm

260130015 Reel 600 * 250 * 83 * 340 * 300 mm

260130019 Reel 600 * 250 * 83 * 340 * 300 mm V-hole

260131010 Reel 600 * 250 * 83 * 352 * 300 mm

260134010 Reel 600 * 250 * 83 * 352 * 300 mm

260149019 Reel 600 * 250 * 56 * 440 * 400 mm U-hole

260151010 Reel 600 * 250 * 75 * 440 * 400 mm

260152019 Reel 600 * 250 * 75 * 440 * 400 mm/ Square-hole

260153010 Reel 600 * 250 * 83 * 440 * 400 mm V-hole

260154019 Reel 600 * 250 * 80 * 440 * 400 mm U-hole

260157010 Reel 600 * 250 * 75 * 440 * 400 mm

260157019 Reel 600 * 250 * 75 * 440 * 400 mm U-hål

260158010 Reel 600 * 250 * 75 * 440 * 400 mm

260158015 Reel 600 * 250 * 75 * 440 * 400 mm U-hole

260158019 Reel 600 * 250 * 75 * 440 * 400 mm U-hole

260159019 Reel 600 * 250 * 75 * 440 * 400 mm

260160010 Reel 600 * 250 * 83 * 440 * 400 mm

260160019 Reel 600 * 250 * 83 * 440 * 400 mm U-hål

260161019 Reel 600 * 250 * 75 * 440 * 400 mm U-hole

260260010 Drum 600 * 250 * 56 * 470 * 400 mm

260260019 Drum 600 * 250 * 56 * 470 * 400 mm V-hole x 4

260262019 Drum 600 * 250 * 75 * 470 * 400 mm V-hole x 4

260263819 Drum 600 * 250 * 81 * 470 * 400 mm V-hole x 2

260265019 Drum 600 * 250 * 80 * 470 * 400 mm V-hole

260266019 Drum 600 * 250 * 75 * 470 * 400 mm V-hole

260267010 Drum 600 * 250 * 80 * 470 * 400 mm

260268010 Drum 600 * 250 * 83 * 470 * 400 mm

260269019 Drum 600 * 250 * 75 * 470 * 400 mm V-hole

260270010 Drum 600 * 250 * 75 * 470 * 400 mm

260270015 Drum 600 * 250 * 75 * 470 * 400 mm / Bigpack

260270018 Drum 600 * 250 * 75 * 470 * 400 mm

260270019 Drum 600 * 250 * 75 * 470 * 400 mm V-hole x 4

260271010 Drum 600 * 250 * 75 * 470 * 400 mm

260271013 Drum 600 * 250 * 75 * 470 * 400 mm

260271015 Drum 600 * 250 * 75 * 470 * 400 mm

260271018 Drum 600 * 250 * 75 * 470 * 400 mm

260273010 Drum 600 * 250 * 83 * 470 * 400 mm / Eldra

260274010 Drum 600 * 250 * 83 * 470 * 400 mm

260275019 Drum 600 * 250 * 75 * 470 * 400 mm / V-hole

260361019 Drum 600 * 250 * 75 * 470 * 400 mm / V-hole * 4

260362010 Drum 600 * 250 * 80 * 470 * 400 mm

260363019 Drum 600 * 250 * 75 * 470 * 400 mm / V-hole * 4

260364019 Drum 600 * 250 * 75 * 470 * 400 mm / V-hole * 4

260370019 Drum 600 * 250 * 83 * 470 * 400 mm / V-hole * 4

260474010 Drum 595 * 250 * 75 * 470 * 400 mm / G6

270275010 Drum 700 * 325 * 75 * 580 * 500 mm

270279019 Drum 700 * 325 * 75 * 580 * 500 mm V-hole

270280019 Drum 700 * 325 * 75 * 580 * 500 mm V-hole

270284010 Drum 700 * 325 * 83 * 580 * 500 mm
