Recycled HDPE pipes - Monotube and Tritube configurations

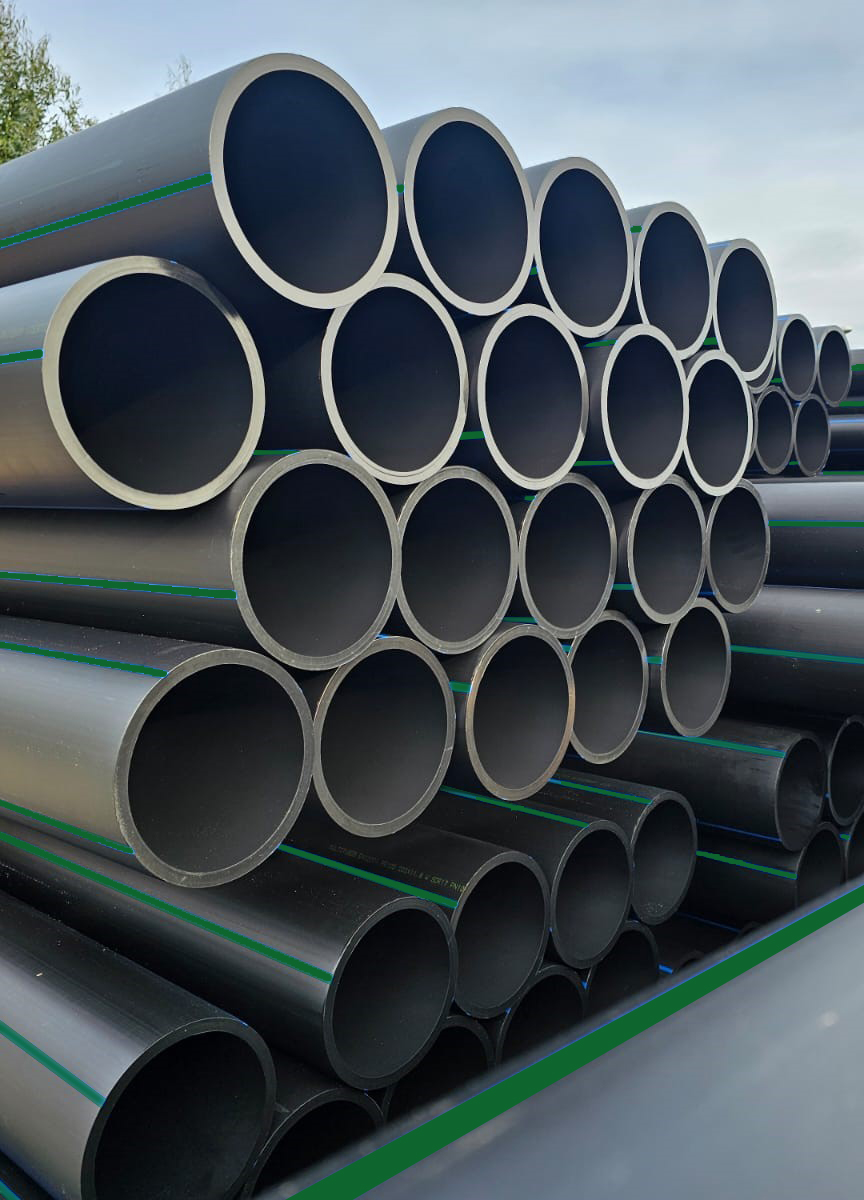

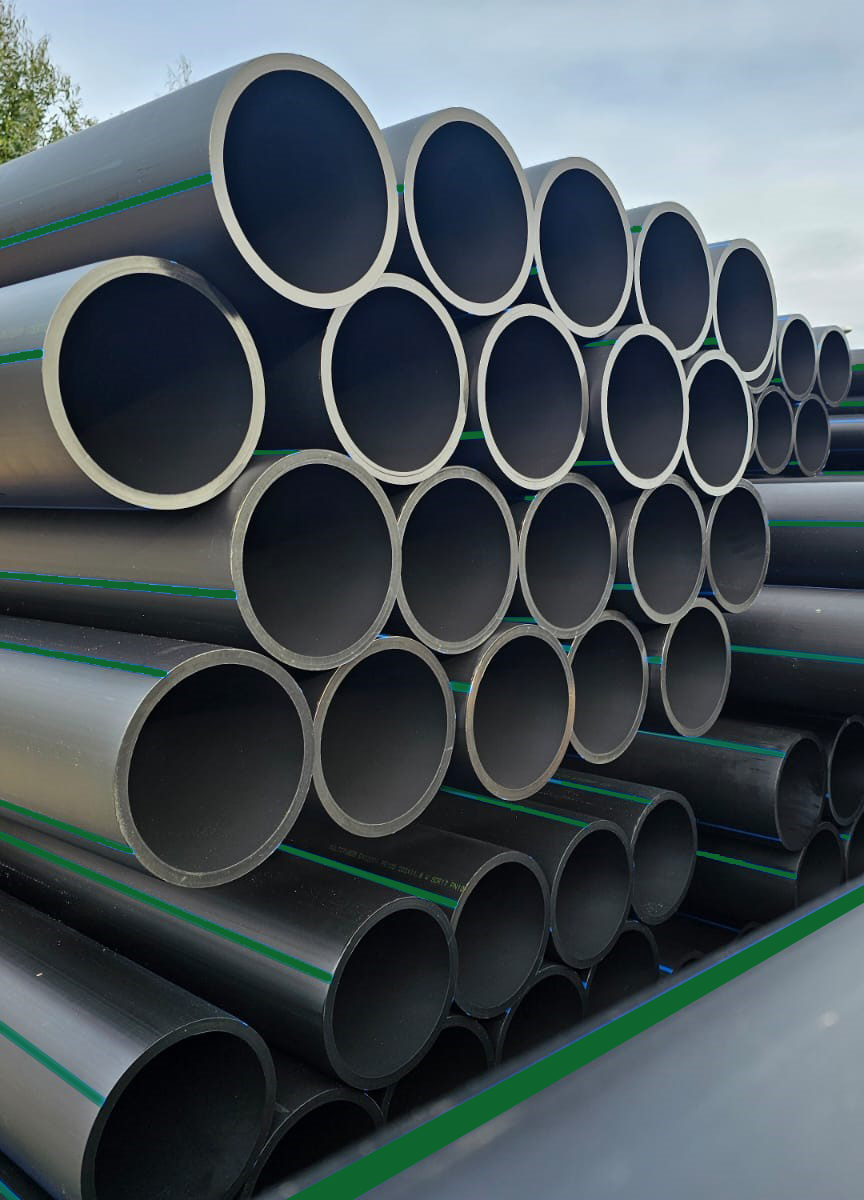

The monotube configuration is available in all standard sizes and pressure classes. HDPE pipes are offered in a wide range of configurations according to Standard Dimension Ratio (SDR), outside diameter, and pressure class. Available SDP values include 26, 21, 17.6, 17, 13.6, 11 and 9, which determine the pipe thickness and corresponding pressure resistance. Pipes are manufactured using PE80 and PE100 resins, with nominal pressures ranging from 5 to 16 kg/cm2 for PE80, and from 6.3 to 20 for PE100, depending on the SDR. Outside diameters range from 16 mm to 225 mm, each associated with a specific wall thickness. Pipes up to 63 mm in diameter are typically supplied in 100 meter coils, while larger diameters are delivered in 12 meter straight lengths.

The tritube configuration is available with an outside diameter of 40 mm, an inner diameter 34 mm ± 0.5 mm, and wall thickness of 3 mm ± 0.3 mm.
