EPD-IES-0028601:002

Optidrive Coolvert

The products covered by this EPD are the Optidrive Coolvert variable frequency drive range produced by Invertek Drives Ltd. This covers all variants in the range, including power ratings from 1.5 kW to 40 kW, single-phase and three-phase input options, heatsink and coldplate versions, and frame sizes 2 to 5. The representative reference product is the Size 4 model (CV-440580-3FHE, 30 kW / 40 HP, 380-480 V ±10%, 3-phase, 58 A). The most common configuration is the three-phase input with heatsink or coldplate technology.

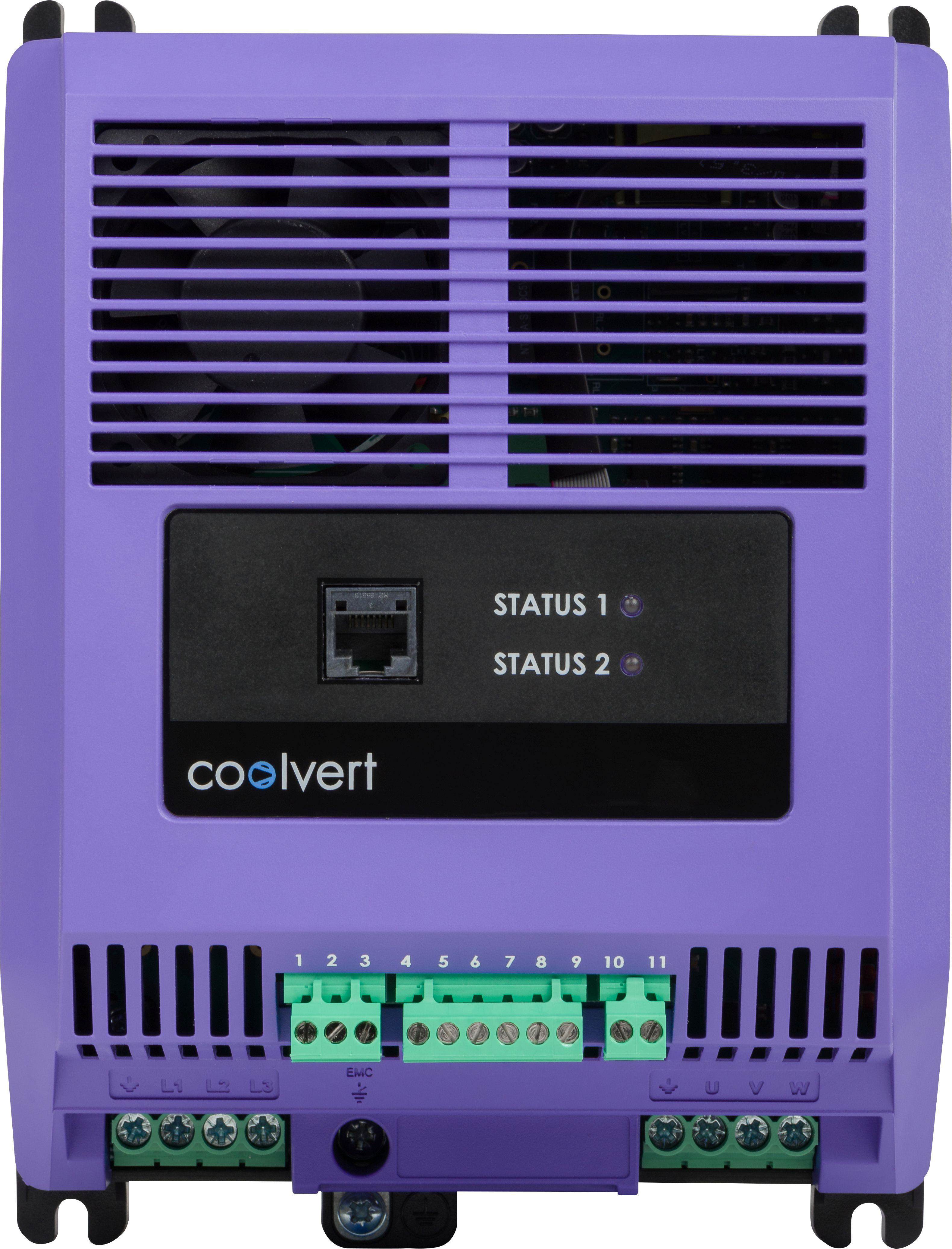

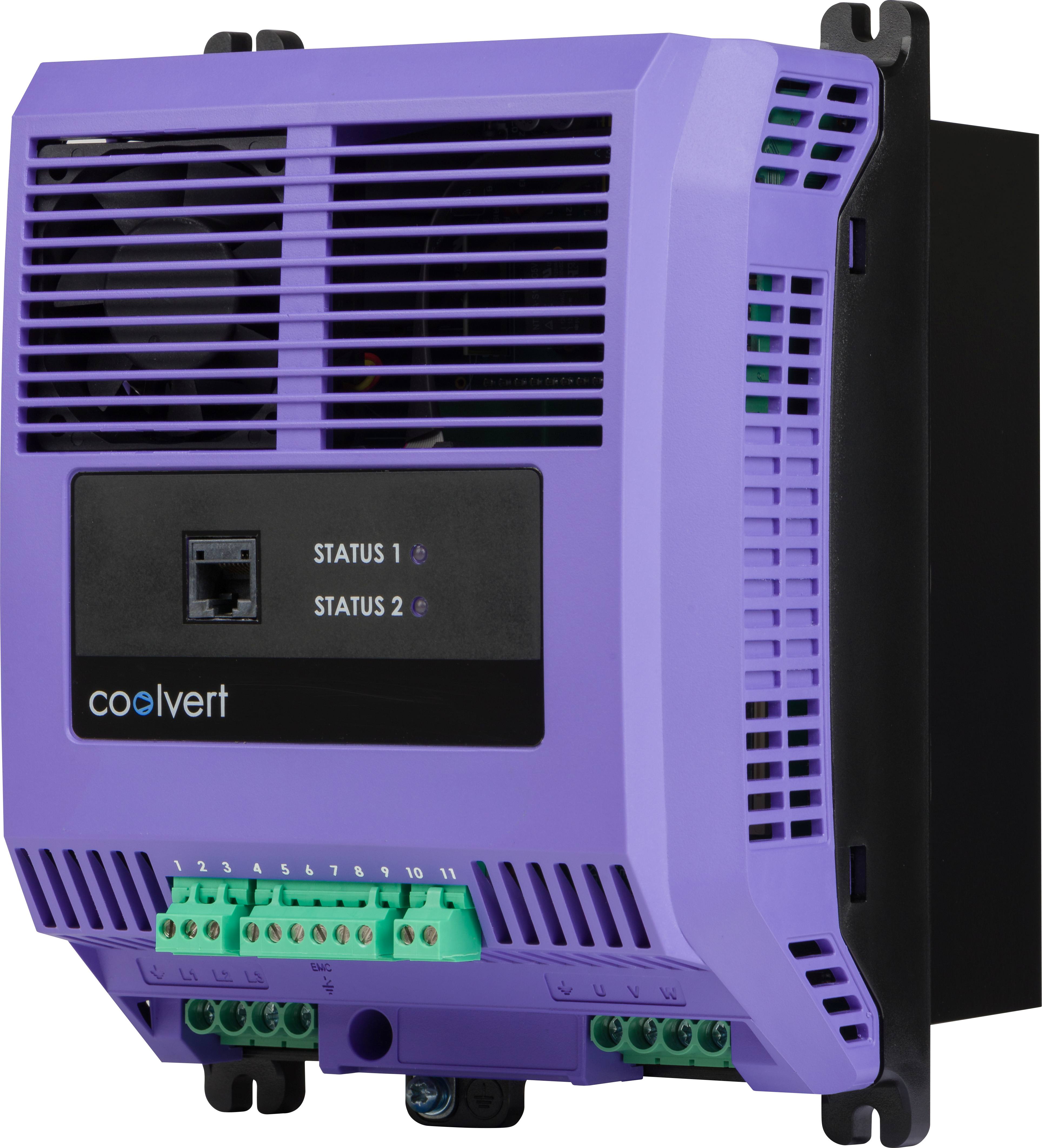

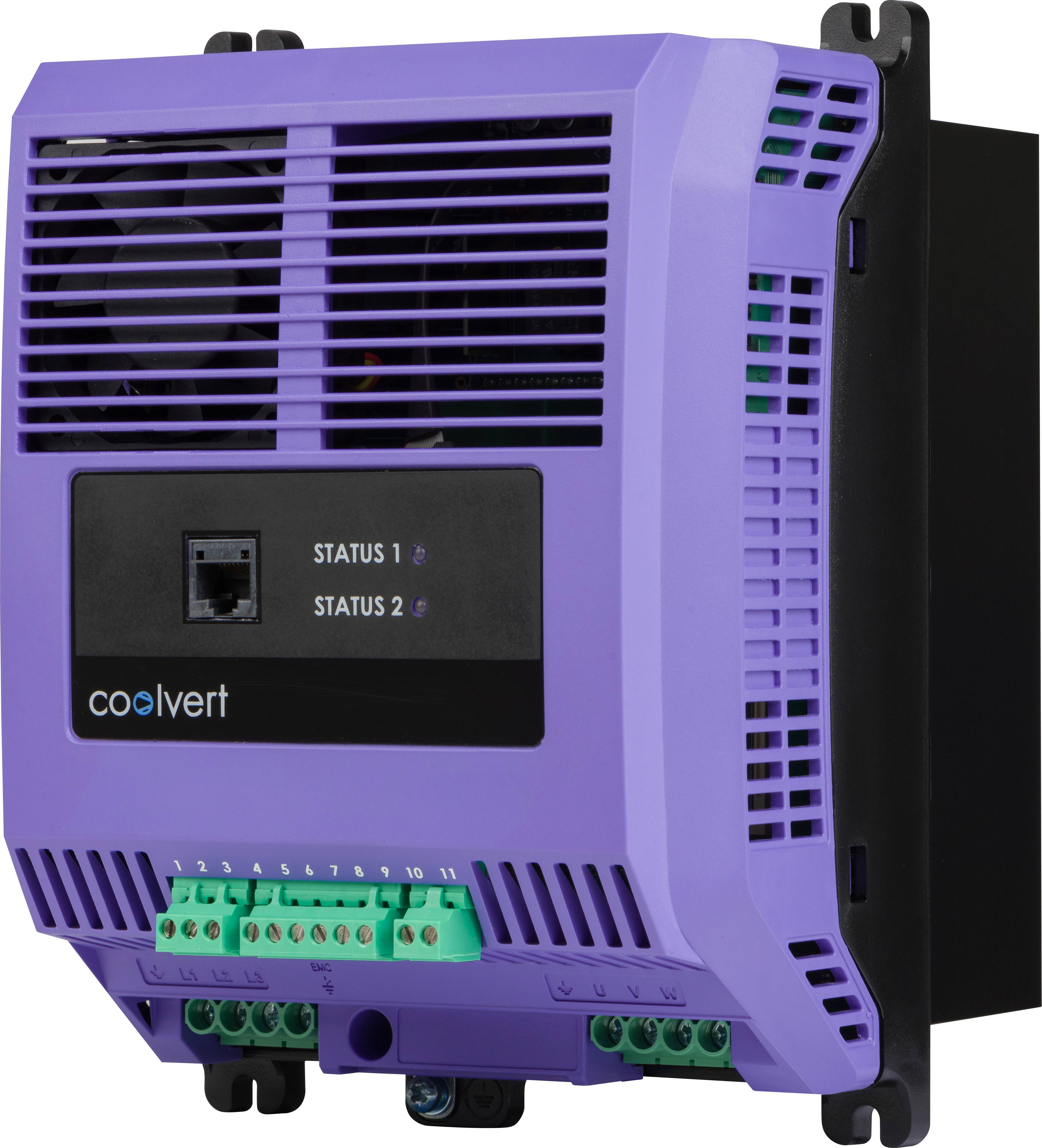

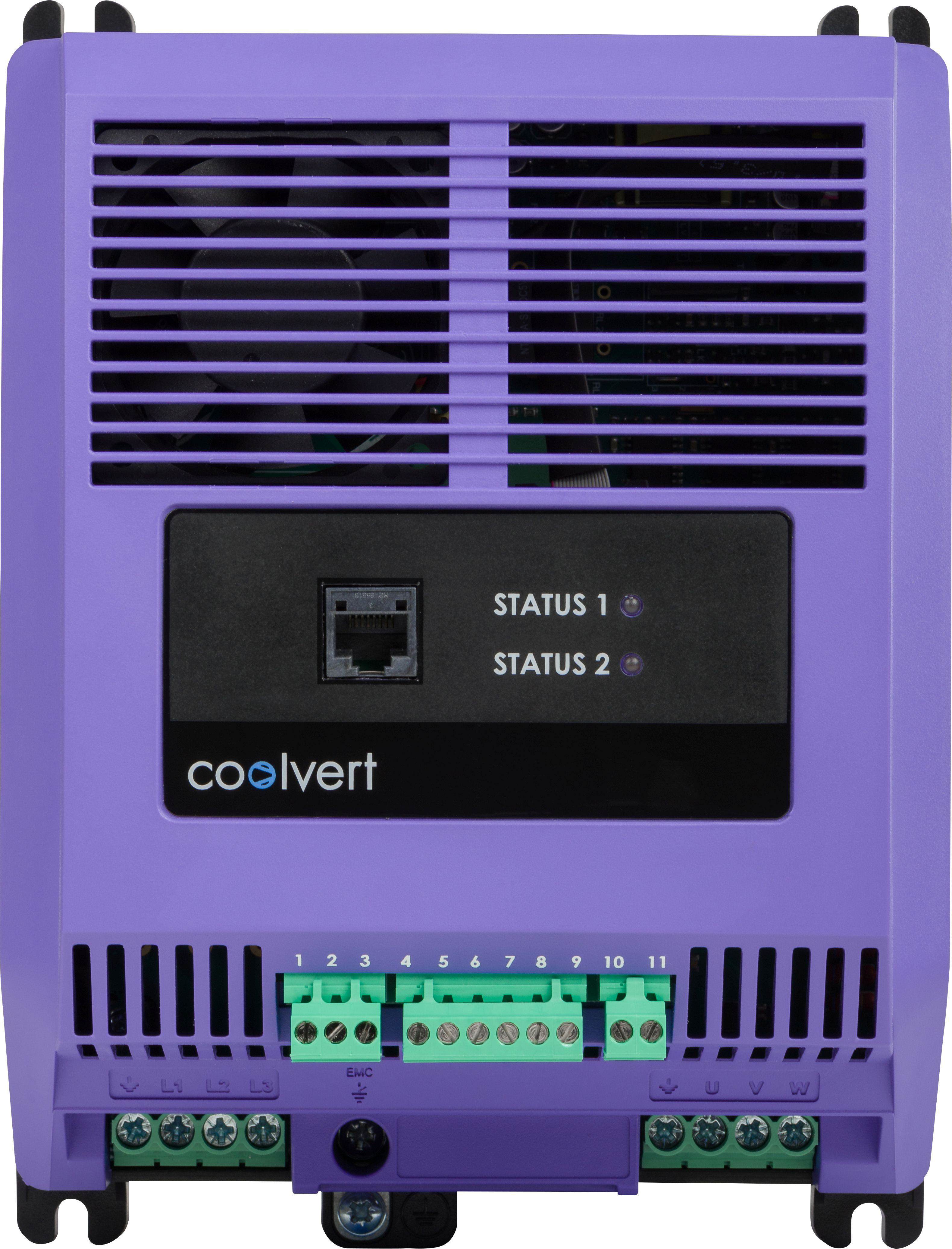

Coolvert Pictures_Page_1 reduced jpg.jpg

Registration number	EPD-IES-0028601:002
Status	Valid
Version date	2026-02-20
Validity date	2031-02-19
PCR	2024:06 Electronic and electric equipment, and electronic components (non-construction) (EN 50693) 1.0.1
Standards conformance	ISO 14025:2006
Geographical scope	Europe

Company name	Invertek Drives Ltd
Country	United Kingdom
Contact	stephanie.walton@shi-g.com
Website	www.invertekdrives.com
LCA Practitioner	Aaron Yeardley, aaronyeardley@tunley-environmental.com

Single-phase input (200–240 V ±10%, 1 phase)

Frame 2:

1.5 kW / 2 HP / 7.0 A → CV-220070-1F#P
3 kW / 4 HP / 12 A → CV-220120-1F#P
4 kW / 5.5 HP / 16 A → CV-220160-1F#P
5.5 kW / 7.5 HP / 20 A → CV-220200-1F#P

Three-phase input (380–480 V ±10%, 3 phase)

Frame 2:

5.5 kW / 7.5 HP / 14 A → CV-240140-3F#E
7.5 kW / 10 HP / 18 A → CV-240180-3F#E
11 kW / 15 HP / 24 A → CV-240240-3F#E

Frame 3:

15 kW / 20 HP / 30 A → CV-240300-3F#E
18.5 kW / 25 HP / 39 A → CV-240390-3F#E

Frame 4:

22 kW / 30 HP / 46 A → CV-240460-3F#E
30 kW / 40 HP / 58 A → CV-240580-3F#E - (representative reference product)

Frame 5:

37 kW / 45 HP / 65 A → CV-240650-3F#E
40 kW / 50 HP / 75 A → CV-240750-3F#E
