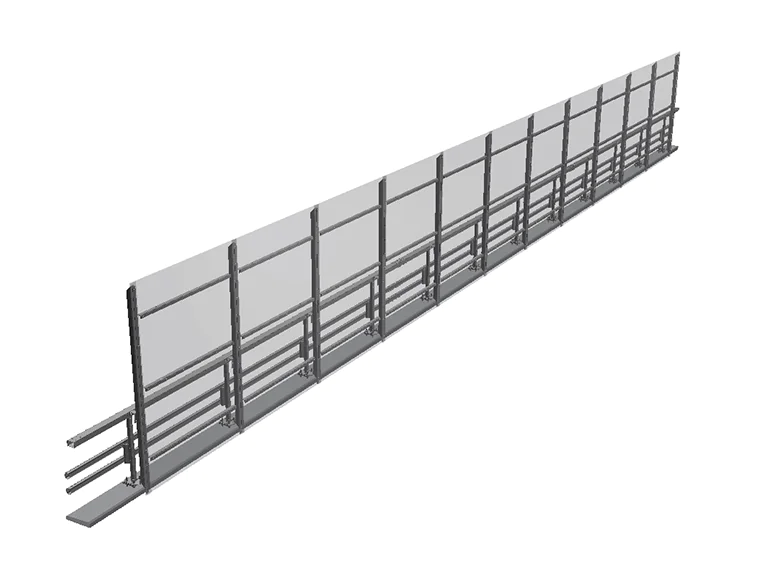

Noise barrier with PC
Noise barrier with PC (Polycarbonate) for installation on Safety Barriers (Nordic R H2 High, Nordic W H2 High, Nordic R H4b and Nordic R H4b Ground)
Harmonized standard: EN1317-5:2007 / A2:2012
The construction width is 1.0-5.0 meter and the height is 1.8/2.0 m meter.
The safety barrier has a containment level at H2/H4b and an impact severity level at B. R H4b Ground: A.
The normalized working width is class W2 (0.7 m), W3 (0.9m) W5 (1.5 m) with a post spacing at 2 meter.
Vehicle intrusion class: VI3(1.0m), VI4(1.1m), VI4(1.3m), VI5(1.4m).
Dynamic deflection R H2 High/W H2 High 0.5 m, R H4b 0.8m, R H4b Ground1.4m
Sound Insulation PC B3 30dB
Color PC: Transparent with bird protection or any color (NCS or RAL)
The steel is hot dip galvanized coatings according to SS-EN ISO 1461:2009 National Annex. Fe/Zn 115.
| Registration number | EPD-IES-0028496:001 |
|---|---|
| Status | Valid |
| Initial version date | 2026-02-02 |
| Validity date | 2031-02-02 |
| PCR | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
| c-PCR | 2019:14-c-PCR-010 Guardrails and bridge parapets (c-PCR to PCR 2019:14) 1.0.0 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Geographical scope | Global, Nordic countries |
