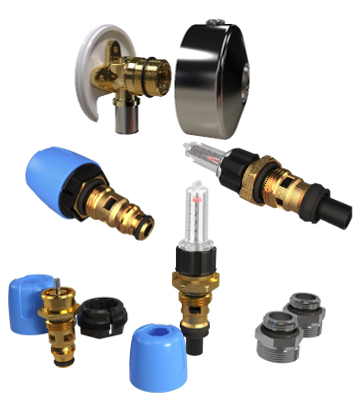

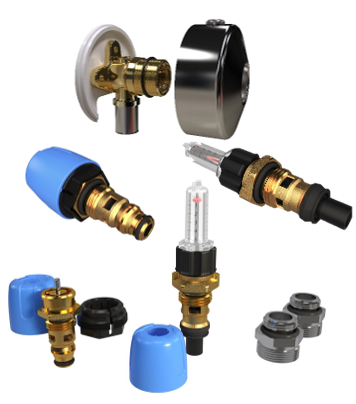

LK Valves for VKF RF

Adjustment valve with flow indicator 0,5-5 l/min.

LK Valvebox with pre-shut-off valve can be used as connection coupling with straight external ¾” for mounting mixer according to international standard or valve bracket with connection in / out ½” / ¾” thread. Three mounting screws included.

Press fitting for LK PAL and LK PE-X Universal pipes.

Return valve complete with handle and actuator adapter VA 26.

LK Valve kit VKF RF is used when you need to expand an existing manifold to include another floor heating circuit.

LK Valve kit VKF RF replaces the manifold’s drain valve and refill valve and both its air bleeding valves.

Production takes place in Foshan, China, and includes melting of plastic granulate followed by injection moulding of plastic components.

Brass components are manufactured through machining and hot forging.

The finished products are then packaged and prepared for delivery.

Values correspond to product number 2410308, which has been selected as the representative product since it accounts for almost 40% of the total sales volume for the product group.

Recycled materials:

Brass - 40%

Climate impact from recycled material is 2,04 kg CO2 eq. per kg (GWP-GHG).

Climate impact from the energy mix in production is 0,953 kg CO2 eq. per kWh (GWP-GHG)
