Devar LMG 670 (DS800) High-Density Galvanised PSB Core Raised Access Floor Panel System

Product Name: Devar LMG 670 (DS800) High-Density Galvanised PSB Core Raised Access Floor Panel System

Dimensions: 600mm x 600mm x 36mm

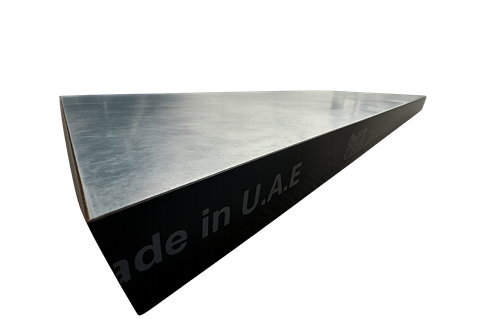

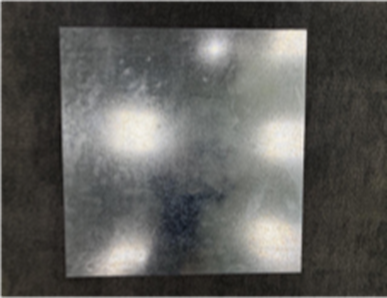

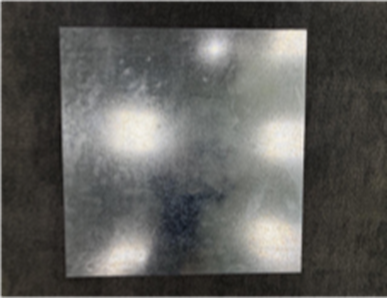

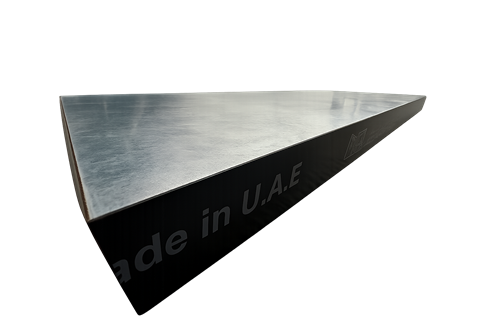

Description of the product: The Devar LMG 670 (DS 800) is a medium-grade, high-density core with galvanised sheet encapsulating it. The panel measures 600 x 600 x 36 mm and is designed as a loose-lay (gravity-lay) type. It is engineered to withstand a concentrated load of 3 kN over a 25 x 25 mm area and 4.5 kN over a 300 x 300 mm area with a safety of 2 or 3, in compliance with CISCA or PSA standards. Installation is carried out using galvanized circular steel pedestals equipped with conductive gaskets. Stringers may be added as required, forming the complete substructure assembly.

Applications:

The panel is used in

• High Density / populated commercial offices buildings Panel ideal for carpet tile, vinyl or other soft floor finish applications
• The product is used as a raised access flooring system in data centers, server rooms, IDF rooms, and commercial spaces (office, retail etc.).
• Technical Lifespan The product is engineered for long-term durability with a technical service life of 25 years or more under standard commercial operating conditions, assuming proper installation and maintenance in accordance with manufacturer instructions.
