EPD-IES-0027453:001
HyDra FB Membrane 3080 Plus
HyDra FB membrane 3080 PLUS is a pre-applied high-density polyethylene (HDPE) waterproofing membrane. It consists of a thick HDPE film, pressure-sensitive adhesive and weather resistance granular layer. One long edge of the membrane has a reserved 80-mm wide self-adhesive overlap or a 100mm wide welding strip, used for watertight lap joint construction.
General information
| EPD Owner | Hydratec Scandinavia AB |
|---|---|
| Registration number | EPD-IES-0027453:001 |
| EPD type | EPD of a single product from a manufacturer/service provider |
| Status | Valid |
| Version date | 2026-03-06 |
| Validity date | 2031-03-06 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Geographical scope | Europe |
| An EPD may be updated or depublished if conditions change. This is the latest version of the EPD. | |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | 2019:14 Construction products (EN 15804+A2) (version 2.0.1) 2.0.1 |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
Verification
| LCA accountability | Gustaf Öster, gustaf.oster@hydratec.se, Hydratec Scandinavia AB |
|---|---|
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
| Third-party verifier | Freddy Navarro (LCACHECK S.A.S de C.V) |
| Approved by | International EPD System |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.environdec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | Hydratec Scandinavia AB |
|---|---|
| Contact person name | Ulf Davidsson |
| Contact person e-mail | ulf.davidsson@hydratec.se |
| Organisation address | Sweden Hallsberg 69435 Hallsbergsterminalen 11 |
Description of the organisation of the EPD Owner
Hydratec Scandinavia AB is a supplier of construction products in the field of concrete accessories for all types of concrete structures. HyDratec's motto is to have a high level of flexibility where the customer is always at the center. Water- and radon-proof products/solutions for concrete structures are part of our specialist areas. With our wide range of concrete accessories in stock and our own production of, among other things, waterproof stop end panels, we not only ensure fast deliveries but also the opportunity to choose the right product for your construction and its conditions. Together: HyDratec is part of the same group as HauCon Norway, HauCon Denmark and HauCon Finland, which guarantees good synergy benefits for product development, purchasing, the environment and logistics.
Organisation logo
Product information
| Product name | HyDra FB Membran 3080 Plus |
|---|---|
| Product identification | 1320001 |
| Product description | HyDra FB membrane 3080 PLUS is a pre-applied high-density polyethylene (HDPE) waterproofing membrane. It consists of a thick HDPE film, pressure-sensitive adhesive and weather resistance granular layer. One long edge of the membrane has a reserved 80-mm wide self-adhesive overlap or a 100mm wide welding strip, used for watertight lap joint construction. |
| Technical purpose of product | Waterproofing of concrete structures |
| Manufacturing or service provision description | The manufacturing process of HyDra FB membrane 3080 PLUS product mainly includes: The raw material is mixed and heated, melted and extruded through a mold, and then the mixture is calendared into a sheet to create substrate. After cooling, the thickness of the substrate is measured, and then the surface is coated with self-adhesive and a layer of side film is laid, the protective layer is formed after sand-pressing. Cut the semi-finished product to size and curl it. The finished products are packed and sent to the warehouse. |
| Material properties | Area density: 16 kg/m2
Thickness: 12 m Area density: 16 kg/m2 Thickness: 12 m |
| Manufacturing site | - China - ... |
| UN CPC code | 3633. Plates, sheets, film, foil and strip, of plastics, not self-adhesive, non-cellular and not reinforced, laminated, supported or similarly combined with other materials |
| Geographical scope | Europe |

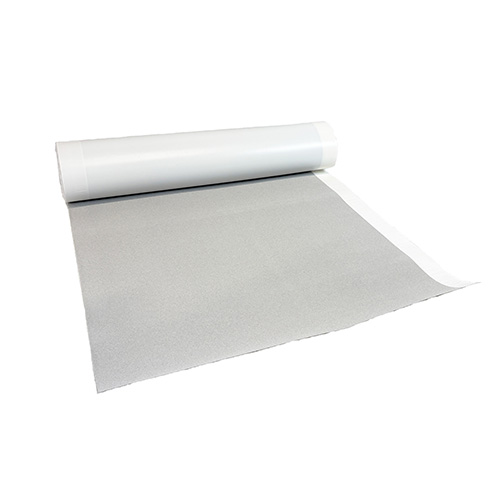

Product images
Content declaration
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
|---|
Product content
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| 4009 | 0.57 | |||
| PPB-M02D | 0.31 | |||
| DFDA-7042 | 0.02 | |||
| SIS-1615 | 0.02 | |||
| Synthetic polymer sand | 0.42 | |||
| Hot-melt pressure sensitive adhesive | 0.25 | |||
| Silicon-coated isolation film | 0.01 | |||
| Total | 1.6 | 0 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
Packaging materials
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| color printed packaing bags | 0.04 | ||
| spool paper | 0.03 | 0.013 | |
| Starch paste | 0.01 | 0.004 | |
| Total | 0.08 | 0 | 0.017 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | HyDra FB Membrane 3080 Plus Area: 1 m2 |
| Conversion factor to mass | 1.6 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.10 database |
| LCA Software | SimaPro SimaPro 9.6 |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | The characterisation method applied is the EN 15804+A2 (EF 3.1) impact assessment method as implemented in SimaPro. This includes the EF 3.1 characterisation factors for all mandatory indicators, with the biogenic methane CF manually adjusted from 27 to 29.8 as required by the EN 15804+A2 methodology. |
| Technology description including background system | HyDra FB membrane 3080 PLUS is a pre-applied waterproofing membrane made of HDPE film, pressure-sensitive adhesive and a protective granular layer. The product is manufactured by mixing, extruding and laminating polymer-based raw materials, followed by cutting and packaging. Background processes for raw materials, transport and energy use are modelled with Ecoinvent 3.10. The membrane is installed directly under poured concrete and is assumed to be landfilled at end of life in accordance with the applied PCR |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | The data quality assessment follows EN 15804+A2 and PCR 2019:14. Primary data for the manufacturing stage (A3) were collected for the reference year 2024, based on actual annual production data from the factory. Primary data for packaging materials originate from 2025. Secondary datasets were taken from the Ecoinvent 3.10 database (reference years 2013–2023), which meet the time representativeness requirements of the PCR. |
|---|
Electricity data
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Specific electricity mix as generated, or purchased from an electricity supplier, demonstrated by a contractual instrument | |
| Energy sources | Hydro | 0% |
| Wind | 0% | |
| Solar | 0% | |
| Biomass | 0% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 0% | |
| Natural gas | 0% | |
| Coal | 0% | |
| Oil | 0% | |
| Peat | 0% | |
| Other | 0% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 0.51 kg CO2 eq./kWh | |
System boundary
| Description of the system boundary | e) Cradle to gate with options (A1-A3 and additional modules). The additional modules may be A4 and/or A5. |
|---|---|
| Excluded modules | Yes, there is an excluded module, or there are excluded modules |
| Justification for the omission of modules | The use stage (modules B1–B7) is excluded. The product does not require energy, water, maintenance, repair, replacement or operational resources during the use phase. All included modules (A1–A5, C1–C4 and D) are modelled according to EN 15804+A2 and the applied PCR |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | X | X | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | China | China | China | Global | Global | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Global | Global | Global | Global | Global | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 10.64% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

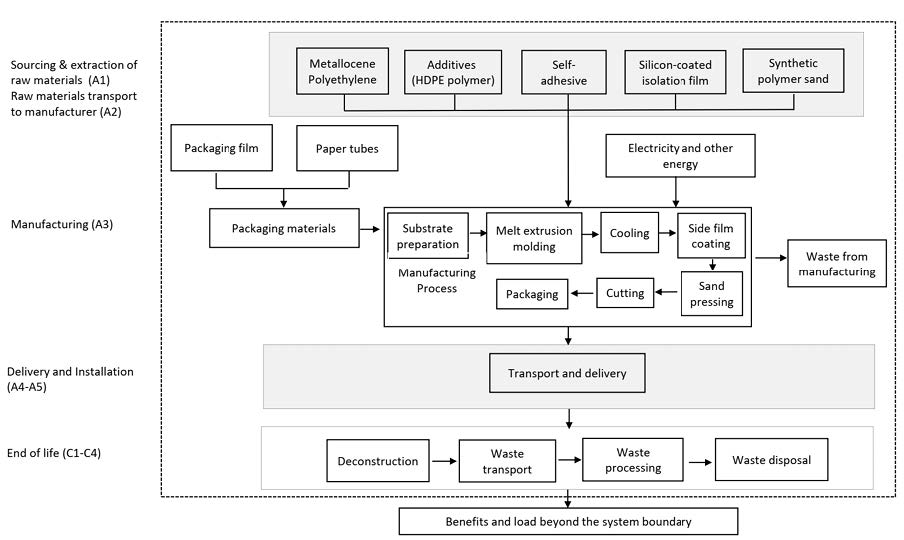

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Default scenario for A4-A5 and C1-C4 |
|---|---|
| Description of the default scenario | This default scenario includes transport to the construction site (A4), installation (A5), and end-of-life processes (C1–C4). Transport is modelled using 250 km truck transport (EURO 6). Installation assumes 1.5% product waste and no auxiliary materials. End-of-life assumes manual deconstruction, 50 km waste transport, sorting according to EU-average treatment and 100% landfilling of the membrane. |
Module A4: Transport to the building site
| Explanatory name of the default scenario in module A4 | Transport to site |
|---|---|
| Brief description of the default scenario in module A4 | Transportation from production to site |
| Module A4 information | Value | Unit |
|---|---|---|
| EURO 6 transport | 160 | km |
| Sea freight | 18000 | km |
| EURO 6 transport | 250 | km |
Module A5: Installation in the building
| Explanatory name of the default scenario in module A5 | Installation |
|---|---|
| Brief description of the default scenario in module A5 | Installation process and recycling |
| Description of the default scenario in module A5 | HyDra FB membrane 3080 PLUS is a non-self-adhesive waterproof membrane, the prepared concrete can be evenly poured directly onto the membrane to achieve the waterproof function. Furthermore, a manual vibrator shall be used to vibrate the poured concrete to ensure its uniformity and compaction. No additional fastening materials such as glue, adhesives, or mechanical fixation are needed for the installation. The impacts related to packaging disposal have been included in the installation phase. Waste packaging materials should be prioritized for disposal through local waste management authorities to align with actual national conditions. |
| Module A5 information | Value | Unit |
|---|---|---|
| Transport from construction to disposal facility | 100 | km |
Module C: End-of-life
| Explanatory name of the default scenario in module C | End-of-life C |
|---|---|
| Brief description of the default scenario in module C | Manual removal, 50 km waste transport, no treatment, 100% landfill |
| Module C information | Value | Unit |
|---|---|---|
| Waste transport | 50 | km |
| Waste disposal | 1,6 | kg |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Packaging recycling |
|---|---|
| Brief description of the default scenario in module D | Credits from recycling of packaging materials |
| Module D information | Value | Unit |
|---|---|---|
| Paper production virgin | -0,03 | kg |
| Paper production recycled | 0,03 | kg |
| HDPE granulate production recycled | 0,016 | kg |
| HDPE granulate production | -0,016 | kg |
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 4.74E+0 | 4.55E-1 | 1.20E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.56E-2 | 0.00E+0 | 1.84E-2 | -5.71E-2 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 4.79E+0 | 4.55E-1 | 4.91E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.56E-2 | 0.00E+0 | 1.82E-2 | -5.86E-2 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | -5.35E-2 | 7.07E-5 | 7.11E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.68E-6 | 0.00E+0 | 1.11E-4 | 1.34E-3 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 3.26E-3 | 2.18E-4 | 4.78E-6 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 6.23E-6 | 0.00E+0 | 1.03E-5 | 1.58E-4 |
| Ozone depletion | ODP | kg CFC-11 eq. | 2.33E-7 | 6.55E-9 | 1.50E-10 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acidification | AP | mol H+ eq. | 1.78E-2 | 9.45E-3 | 3.36E-5 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.85E-5 | 0.00E+0 | 1.94E-4 | -1.99E-4 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 7.98E-4 | 2.11E-5 | 1.05E-6 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.22E-6 | 0.00E+0 | 2.80E-5 | 6.48E-6 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 3.46E-3 | 2.34E-3 | 2.41E-5 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.03E-5 | 0.00E+0 | 4.84E-5 | -4.06E-5 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 3.62E-2 | 2.60E-2 | 1.18E-4 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.21E-4 | 0.00E+0 | 5.21E-4 | -4.68E-4 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 1.95E-2 | 7.27E-3 | 4.23E-5 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.11E-5 | 0.00E+0 | 1.83E-4 | -2.73E-4 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 2.42E-5 | 7.57E-7 | 4.77E-8 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.01E-8 | 0.00E+0 | 4.02E-8 | 3.37E-8 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 1.06E+2 | 5.80E+0 | 9.08E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.19E-1 | 0.00E+0 | 3.98E-1 | -1.34E+0 |
| Water use | WDP1 | m3 world eq. deprived | 1.55E+0 | 1.73E-2 | -1.63E-3 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.89E-4 | 0.00E+0 | -2.55E-1 | -7.06E-3 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 4.80E+0 | 4.55E-1 | 5.89E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.56E-2 | 0.00E+0 | 1.84E-2 | -5.71E-2 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 3.58E+0 | 5.36E-2 | 1.60E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.77E-3 | 0.00E+0 | 5.41E-3 | -3.20E-1 |
| PERM | MJ, net calorific value | 5.25E-1 | 0.00E+0 | -5.25E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| PERT | MJ, net calorific value | 4.11E+0 | 5.36E-2 | -3.65E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.77E-3 | 0.00E+0 | 5.41E-3 | -3.20E-1 |
| PENRE | MJ, net calorific value | 1.06E+2 | 5.80E+0 | 8.08E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.19E-1 | 0.00E+0 | 4.68E+1 | -1.34E+0 |
| PENRM | MJ, net calorific value | 4.75E+1 | 0.00E+0 | -1.16E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | -4.64E+1 | 0.00E+0 |
| PENRT | MJ, net calorific value | 1.53E+2 | 5.80E+0 | -3.49E-1 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.19E-1 | 0.00E+0 | 3.98E-1 | -1.34E+0 |
| SM | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 3.90E-2 | 5.38E-4 | -2.84E-5 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.96E-5 | 0.00E+0 | -5.92E-3 | 1.61E-4 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 2.60E-3 | 9.94E-5 | 4.12E-4 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.51E-6 | 0.00E+0 | 1.83E-4 | -5.33E-4 |
| NHWD | kg | 2.56E-1 | 8.51E-2 | 1.97E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.03E-2 | 0.00E+0 | 1.60E+0 | 4.35E-3 |
| RWD | kg | 3.58E-5 | 8.29E-7 | 6.26E-8 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.41E-8 | 0.00E+0 | 8.65E-8 | -4.58E-7 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 0.00E+0 | 0.00E+0 | 4.54E-2 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MER | kg | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | 0.00E+0 | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Abbreviations
Not applicable
References
CEN standard EN 15804 serves as the Core Product Category Rules (PCR). Product Category Rules (PCR): PCR 2019:14, version 2.0.1 and c-PCR-032 Flexible sheets for waterproofing (EN 17388-2024).
PCR review was conducted by: The Technical Committee of the International EPD System.
GENERAL PROGRAMME INSTRUCTIONS FOR THE INTERNATIONAL EPD SYSTEM, V5.0.1
Version history
Version 001-2026-03-06
