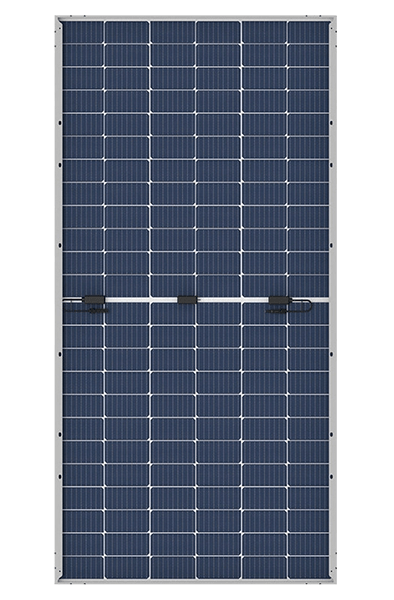

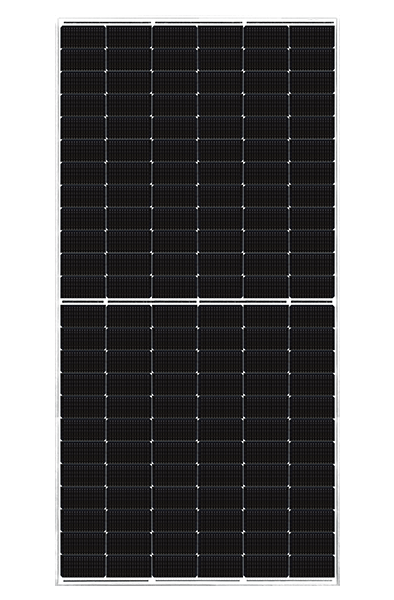

L’LIOS 580-600 Wp N-Type Topcon 16BB Bifacial (Glass to Glass) Solar Photovoltaic Module

The Rayzon N-Type TOPCon Bifacial (Glass-to-Glass) solar module is designed for high-efficiency energy generation. Each module contains 144 half-cut N-type TOPCon bifacial cells, delivering 580-600 Wp with a module efficiency of up to 23.25% under Standard Test Conditions (STC).

Its bifacial design allows the module to capture sunlight from both the front and rear, offering up to 25% additional energy depending on site conditions, with a bifaciality factor of 80% ±10%. The module uses anti-reflective (AR) low-iron tempered glass on both sides for improved light transmission and durability.

Mechanically, it measures 2278 × 1133 × 35 mm and weighs 32±1.5 Kg, framed with anodized aluminum alloy (6005-T6). It withstands mechanical loads of 5400 Pa (front) and 2400 Pa (back) and operates reliably between -40°C and +85°C, supporting system voltages up to 1500 V and maximum series fuse ratings of 30 A.

The module is certified to IEC 61215, IEC 61730, IEC 62804, IEC 61853, IEC 61701, IEC 62716, and IS 14286, and complies with ISO 9001, ISO 14001, and ISO 45001 standards for quality, environment, and safety management.
