ALPHA-PF-PLUS Panels

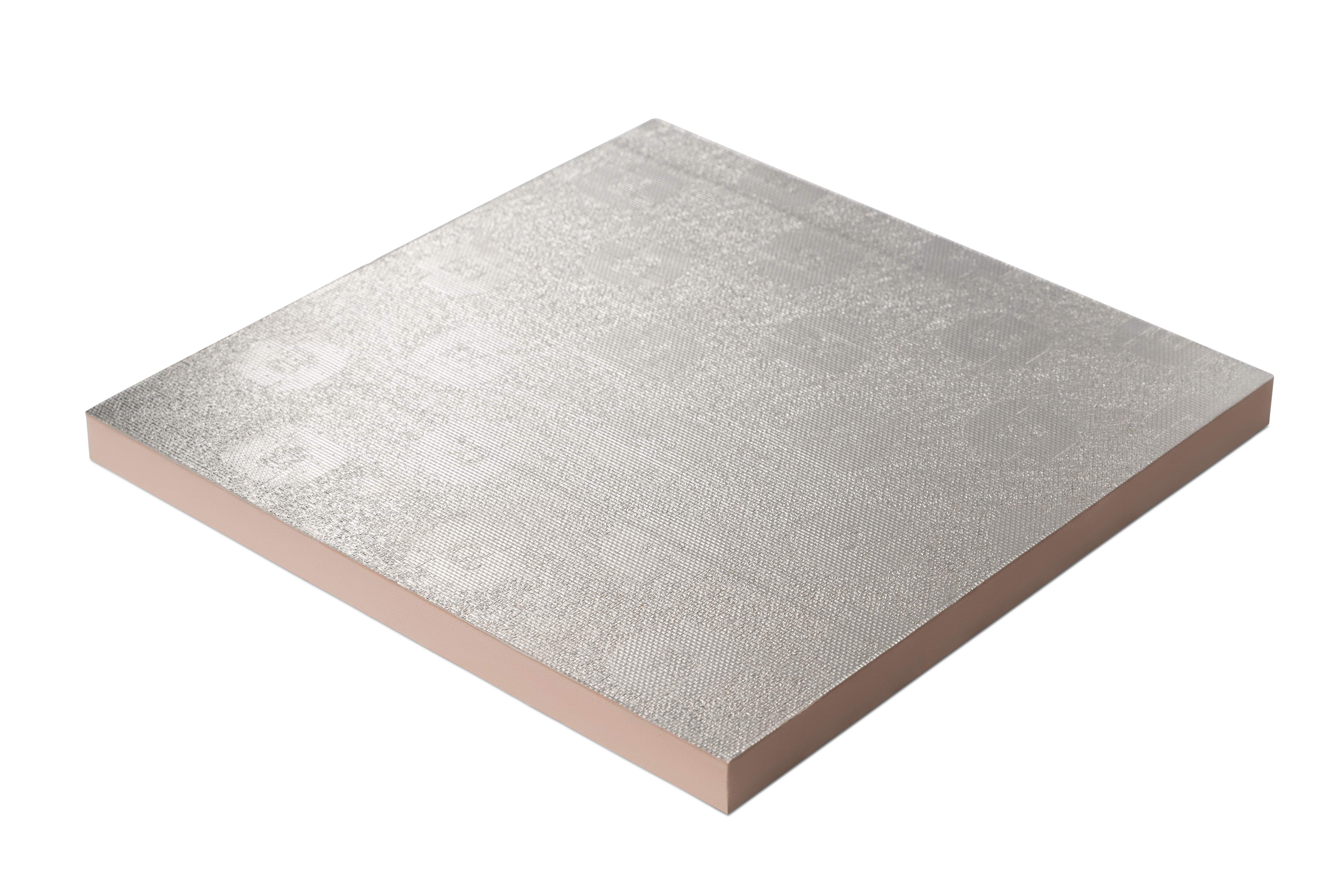

ALPHA-PF-PLUS panels consist of a fiber free, high performance rigid thermoset Phenolic foam core faced on both sides with an extremely durable, protective, low vapor permeability aluminum foil reinforced with fiberglass.

Features

• Light weight

• Installation speed

• CFC and HCFC free

• Zero ODP

• GWP < 5

• Moisture resistance

• Low leakage

Physical Properties

• Thermal conductivity: 0.023 W/mK at 10ºC, 0.024 W/mK at 24ºC | ASTM C518

• Minimum foam core density: 55 kg/m3

• Minimum panel density: 72 kg/m3

• Water vapor transmission: zero | ASTM E96

• Compressive strength: > 200 kPa | ASTM D1621

• Flexural strength: > 1200 kPa | ASTM C203

• Closed cell content: > 90% | BS EN ISO 4590

• Pressure: up to 1000 Pa

• Air velocity: up to 15 m/s

• Available thickness: 20 mm and 30 mm

Fire Properties

• Class 1 listing | UL 181

• Fire propagation class 0 | BS 476-6

• Surface spread of flame class 1 | BS 476-7

ALPHA-PF-PLUS panels are physiologically and chemically inert, insoluble, vermin and fungus proof, resistant to mold, anti-bacterial and non-metabolisable.

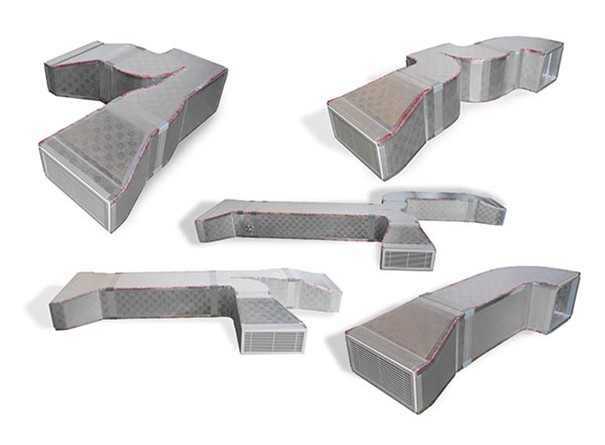

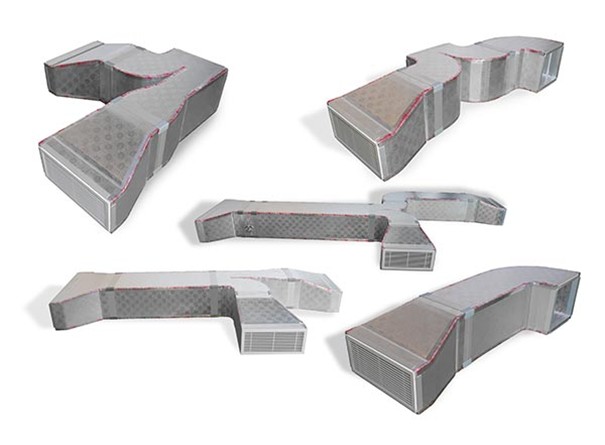

ALPHA-PF-PLUS panels are the essential component of Air Duct System - High Performance and Safety for HVAC. The ALPHA-PF-PLUS air duct system is a closed-cell Phenolic pre-insulated duct system, certified as a Class 1 Air Duct under UL 181.

Manufactured in compliance with NFPA 90A, NFPA 90B, International Mechanical Code, and Uniform Mechanical Code, it ensures superior safety and performance.

Suitable for both indoor and outdoor above-ground installations, ALPHA-PF-PLUS is recommended for supply, return, fresh, and exhaust air systems in air conditioning, heating, and ventilation applications. Choose ALPHA-PF-PLUS for reliable and safe air ducting solutions.
