Fan Coils – Carisma FLY-ECM

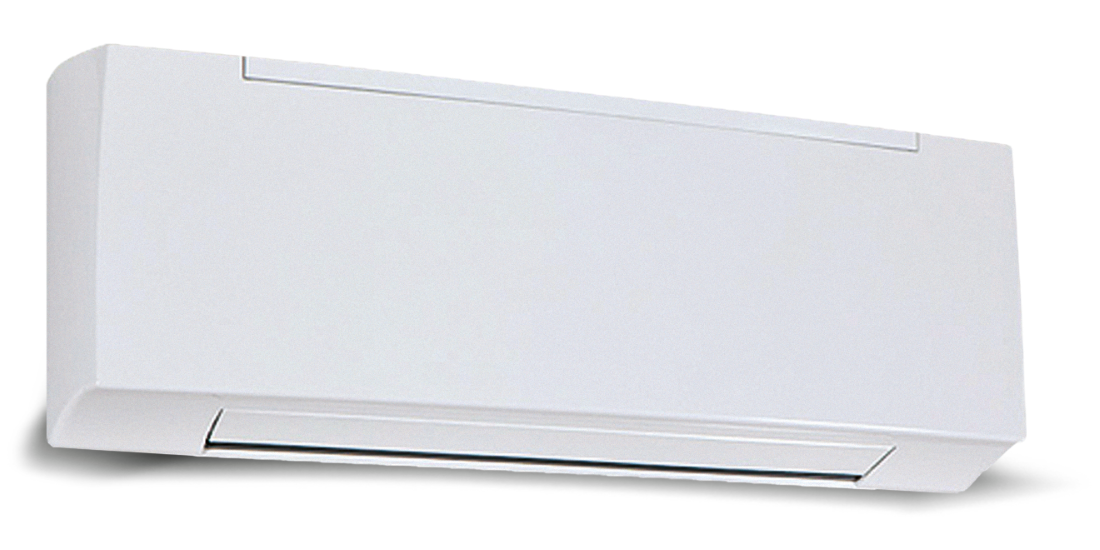

Carisma FLY-ECM is the high wall fan coil unit designed and manufactured in Italy by Sabiana, in 5 sizes and many different models. Carisma Fly is easy to install like a standard fan coil: without any extra frame, 2 way or 3 way valves and condensate pump can be mounted into the casing.

The innovative synchronous electronic motor with permanent magnets, is controlled by an inverter board designed and developed in Italy.

The air flow rate can be varied continuously by means of a 1-10 V signal generated by Sabiana controls or by independent control systems. The continuous air flow control mproves the acoustic comfort and allows a quicker response to the variation of the thermal loads and a greater stability of the requested ambient temperature.

The fan motor high efficiency, also at low speed, makes it possible to greatly reduce electrical consumption under normal operating conditions. The full compliance with the

Electromagnetic Compatibility Directive and with the other severe Standards in force is certified by an independent institute.

The electric power supply required for the machine is therefore single-phase with voltage of 230 V and frequency of 50 - 60 Hz.
