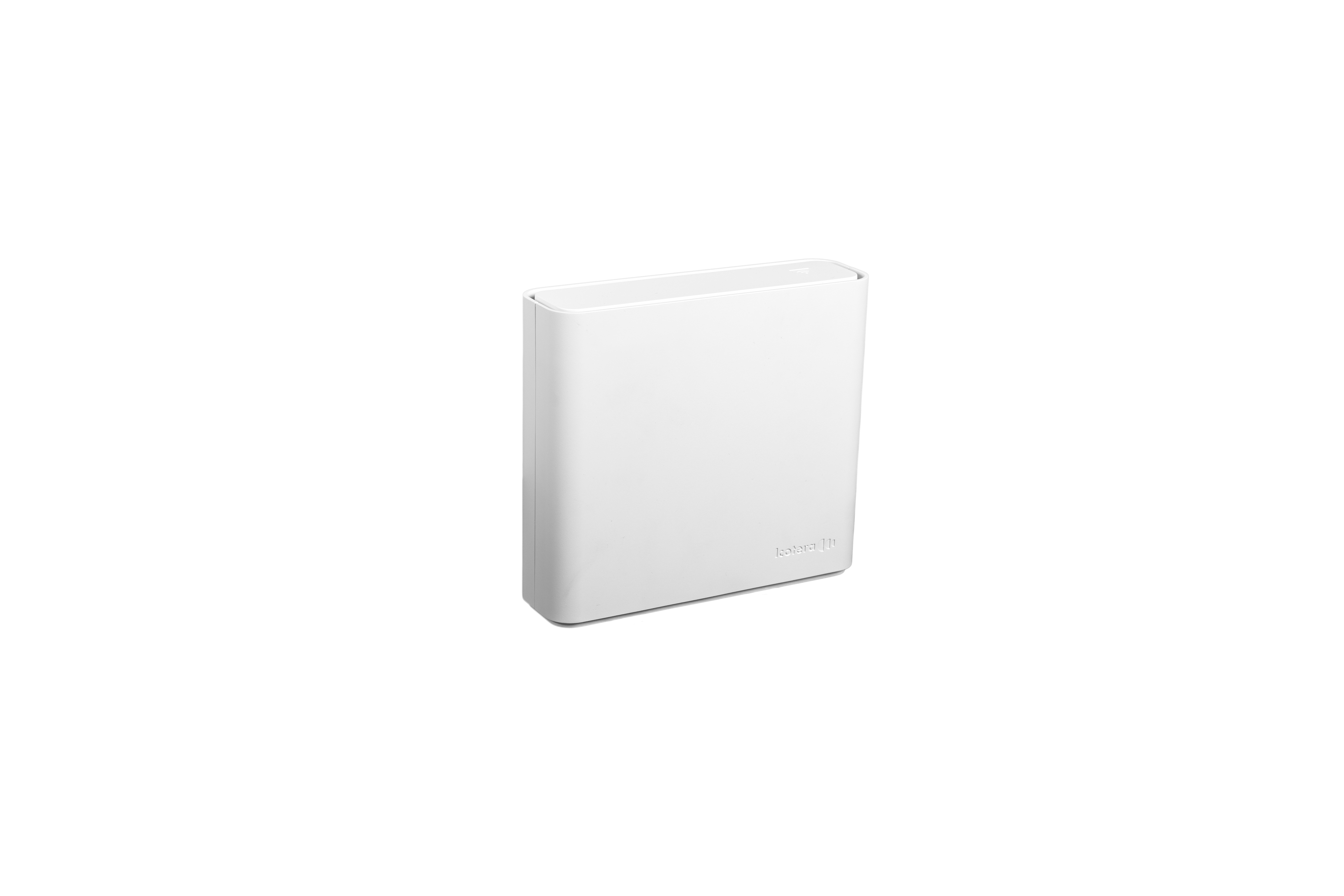

r2501, Sága Wi-Fi 7 Router

Product name: r2501, Sága Wi-Fi 7 Router

Product description: The Icotera r2501, Sága Wi-Fi 7 Router provides superior Wi-Fi 7 connectivity making it an ideal choice for building powerful home mesh systems. Designed with a focus on three main pillars: security, performance, and longevity, the Icotera r2501, Sága Wi-Fi 7 Router combines advanced features with a minimalistic and beautiful Danish design. Powered by prplOS, the r2501, Sága Wi-Fi 7 Router provides a secure, standardised software platform that supports third-party container applications. Powered by the Dragonwing N7 Platform featuring a powerful CPU and 2 GB RAM, the r2501, Sága Wi-Fi 7 Router routers ensure top-level performance. The product lifespan of an r2501, Sága Wi-Fi 7 Router is 5 years.

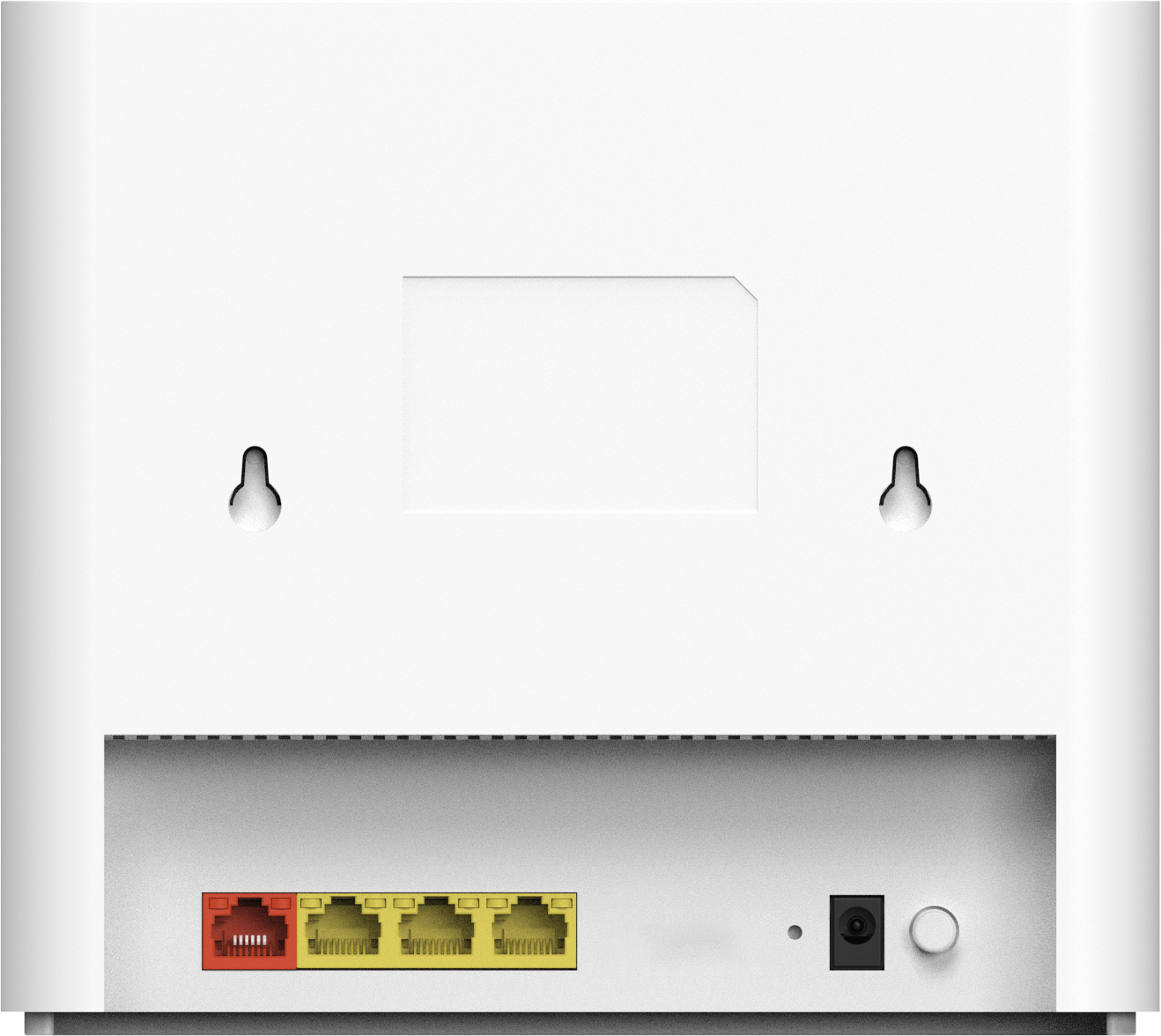

Gateway Interface Configurations:

• Model : r2501
• Uplink: 2.5 WAN (RJ45)
• LAN: 1x 2.5G, 2x 1G
• Wi-Fi: Wi-Fi 7
• Peak Wi-Fi link rate: 15.1 Gbps (BE15100)
• Radio chains: 2 + 4 + 2

Wi-Fi 7

• 802.11be 2x2 2.4 GHz + 4x4 5 GHz + 2x2 6 GHz
• BW support: 320 MHz, 240 MHz, 160 MHz, 40 MHz
• Downlink MU-MIMO and OFDMA
• Up to 4096-QAM modulation with full support for MCS 13 in all modes
• Support for LDPC, STBC
• Support for restricted target wake time (R-TWT)
• Full support for multi-link multi-radio MLO
• Static preamble puncturing

Features

• Tri-band Wi-Fi 7 networking platform
• Non-blocking 1 Gbps architecture
• Wi-Fi link rate up to 5.99 Gbps
• Up to a GB flash memory
• Up to 2 GB RAM

Operational Specifications

DC 12 V input

Operating temperature: 5°C – 45°C

Storage temperature: -20°C – 85°C

Humidity: 5% – 95% (noncondensing)
