EPD-IES-0025133:003
SERIE SC
The SC series air handling units are available in various standard dimensional configurations capable of guaranteeing air flow rates of up to 45,000 m³/h. The combination of the various modular sections proposed for each size allows the creation of units suitable for various needs of air intake/extraction/cooling/heating/recovery/energy recovery/filtering in the environment for which the installation is intended. The SC series can also be configured in "non-standard" versions specifically designed and sized according to the specific needs of the Customer.
For the purposes of the environmental assessment conducted through the LCA methodology, a worst-case approach was adopted, selecting the SC305 model as the representative declared unit. This model, belonging to the SC series, has the maximum dimensions and the highest air flow rate, thus being the most burdensome in terms of consumption of materials, energy and potential environmental impacts. This choice allows us to guarantee a precautionary assessment.
General information
| EPD Owner | IDROAIR SRL |
|---|---|
| Registration number | EPD-IES-0025133:003 |
| PCR | 2019:14 Construction products (EN 15804+A2) 2.0.1 |
| c-PCR | 2019:14-c-PCR-018 Ventilation components (c-PCR under PCR 2019:14) Adopted from EPD Norway |
| Status | Valid |
| Initial version date | 2025-09-19 |
| Validity date | 2030-09-18 |
| EN 15804 compliant | Yes |
| Geographical scope | Global |
Programme information
| Programme | International EPD System |
|---|---|
| Address | EPD International AB Box 210 60 SE-100 31 Stockholm Sweden |
| Website | www.environdec.com |
| support@environdec.com |
Product category rules
| CEN standard EN 15804 serves as the Core Product Category Rules (PCR) | |
| Product Category Rules (PCR) | PCR 2019:14 Construction products (EN 15804+A2) (2.0.1) |
|---|---|
| PCR review was conducted by | The Technical Committee of the International EPD System. See www.environdec.com for a list of members. Review chair: Rob Rouwette (chair), Noa Meron (co-chair). The review panel may be contacted via the Secretariat www.environdec.com/support. |
| Complementary Product Category Rules (c-PCR) | PCR 2019:14-c-PCR-018 Ventilation components (c-PCR under PCR 2019:14) (Adopted from EPD Norway) Version: Adopted from EPD Norway |
| c-PCR review was conducted by | The Technical Committee of the International EPD System |
Verification
| LCA accountability | SERENA MANTOVANI, commerciale@idroair.eu, IDROAIR SRL |
|---|---|
| Independent third-party verification of the declaration and data, according to ISO 14025:2006, via | |
| Third-party verifier | TÜV Italia S.r.l. |
| Accredited by | Accredia |
| Accredited certification body address | Italy |
| Procedure for follow-up of data during EPD validity involves third party verifier | |
| *EPD Process Certification involves an accredited certification body certifying and periodically auditing the EPD process and conducting external and independent verification of EPDs that are regularly published. More information can be found in the General Programme Instructions on www.envrondec.com. | |
Ownership and limitation on use of EPD
Limitations
EPDs within the same product category but published in different EPD programmes, may not be comparable. For two EPDs to be comparable, they shall be based on the same PCR (including the same first-digit version number) or be based on fully aligned PCRs or versions of PCRs; cover products with identical functions, technical performances and use (e.g. identical declared/functional units); have identical scope in terms of included life-cycle stages (unless the excluded life-cycle stage is demonstrated to be insignificant); apply identical impact assessment methods (including the same version of characterisation factors); and be valid at the time of comparison.
Ownership
The EPD Owner has the sole ownership, liability, and responsibility for the EPD.
Information about EPD Owner
| EPD Owner | IDROAIR SRL |
|---|---|
| Contact person name | SERENA MANTOVANI |
| Contact person e-mail | info@idroair.eu |
| Organisation address | Italy Bovolone 37051 via dossi 1 |
Description of the organisation of the EPD Owner
IDROAIR SRL is an industrial reality based in Bovolone (Verona). The company has succeeded to develop a long-term strategy and an important commercial network thanks to design experience of technical figures and skilled manpower and also thanks to high-quality materials. Company policy consists of constant product development and improvement of service.
Organisation logo
Product information
| Product name | SC305 |
|---|---|
| Product identification | Air Treatment Units |
| Product description | The SC series air handling units are available in various standard dimensional configurations capable of guaranteeing air flow rates of up to 45,000 m³/h. The combination of the various modular sections proposed for each size allows the creation of units suitable for various needs of air intake/extraction/cooling/heating/recovery/energy recovery/filtering in the environment for which the installation is intended. The SC series can also be configured in "non-standard" versions specifically designed and sized according to the specific needs of the Customer. For the purposes of the environmental assessment conducted through the LCA methodology, a worst-case approach was adopted, selecting the SC305 model as the representative declared unit. This model, belonging to the SC series, has the maximum dimensions and the highest air flow rate, thus being the most burdensome in terms of consumption of materials, energy and potential environmental impacts. This choice allows us to guarantee a precautionary assessment. |
| Technical purpose of product | Europe market, 90% Italian market. Installation for commercial areas, hospitals, ecc. |
| Manufacturing or service provision description | 1. PROCUREMENT 2. RAW MATERIALS PROCESSING 3. ASSEMBLY 4. PRE-SHIPPING & TRANSPORT 5. ON-SITE INSTALLATION AND COMMISSIONING |
| Material properties | Volumetric mass density: 433488 kg/m3 |
| Manufacturing site | IDROAIR SRL Italy BOVOLONE 37051 VIA DOSSI 1 |
| UN CPC code | 4391. Gas generators; distilling plant; air conditioning and refrigerating equipment; filtering machinery |
| Geographical scope | Global |
| Geographical scope description | A1-A2 (EUR), A3 (ITA), C1-C4 (ITA) |
| Actual or technical lifespan | 25 year(s) |

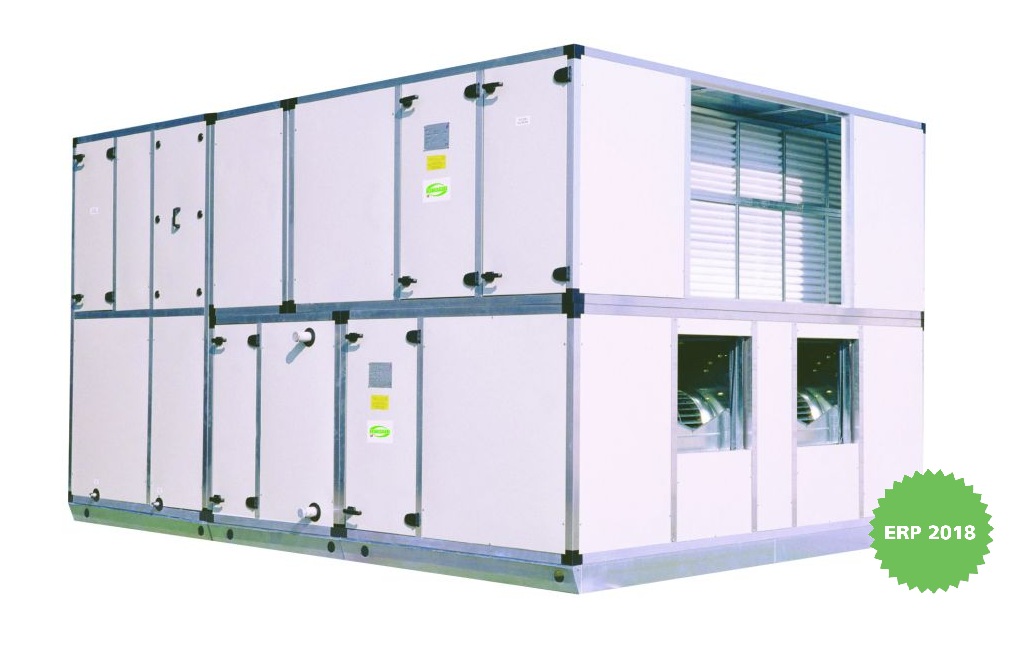

Product images
Content declaration
| Content declaration of multiple products | The mass (weight) of one unit of a product, as purchased or per declared unit: product mass 4334,88 kg without packaging. |
|---|---|
| Hazardous and toxic substances | The product does not contain any substances from the SVHC candidate list in concentrations exceeding 0.1% of its weight. |
| Content name | Mass, kg | Post-consumer recycled material, mass-% of product | Biogenic material, mass-% of product | Biogenic material1, kg C/declared unit |
|---|---|---|---|---|
| FeZn sheet metal | 2595.7 | 40 | 0 | 0 |
| AISI 304 stainless steel sheet | 61.04 | 0 | 0 | 0 |
| Liquid expanded polyurethane | 190.8 | 0 | 0 | 0 |
| Mineral Wool | 120 | 0 | 0 | 0 |
| Aluminium profiles | 123.4 | 0 | 0 | 0 |
| PVC corners/fittings/handles | 7 | 0 | 0 | 0 |
| Polypropylene droplet separator | 32 | 0 | 0 | 0 |
| Synthetic Filter G4 M5 | 40.8 | 0 | 0 | 0 |
| Rigid bag filter F7 F8 F9 | 18 | 0 | 0 | 0 |
| Hexagonal plate heat exchanger | 842.12 | 0 | 0 | 0 |
| 6R hydronic coil in Cu/Al | 189.02 | 0 | 0 | 0 |
| Plug fan | 110 | 0 | 0 | 0 |
| Accessories - Electrical parts | 5 | 0 | 0 | 0 |
| Total | 4334.88 | 40 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | |||
| Material name | Mass, kg | Mass-% (versus the product) | Biogenic material1, kg C/declared unit |
|---|---|---|---|
| Pallet | 40 | 0 | 0 |
| Cardboard | 0.53 | 0 | 0 |
| LDPE roll | 1.3 | 0 | 0 |
| PET strapping / tie roll | 0.6 | 0 | 0 |
| Adhesive tape | 0.14 | 0 | 0 |
| Total | 42.57 | 0 | 0 |
| Note 1 | 1 kg biogenic carbon is equivalent to 44/12 kg of CO2 | ||
LCA information
| EPD based on declared or functional unit | Declared unit |
|---|---|
| Declared unit and reference flow | SC305 Mass: 1 kg |
| Conversion factor to mass | 1 |
| Are infrastructure or capital goods included in any upstream, core or downstream processes? | |
| Datasources used for this EPD | ecoinvent database (general) ecoinvent 3.11 database |
| LCA Software | SimaPro SimaPro 9.6 |
| Version of the EN 15804 reference package | EF Reference Package 3.1 |
| Characterisation methods | EF 3.1 |
| Technology description including background system | Average indoor operating temperatures: 20°C at 55% relative humidity (winter), 24°C at 55% relative humidity (summer). Average outdoor temperatures: 0°C at 80% relative humidity (winter), 35°C at 50% relative humidity (summer). |
| Scrap (recycled material) inputs contribution level | Less than 10% of the GWP-GHG results in modules A1-A3 come from scrap inputs |
Data quality assessment
| Description of data quality assessment and reference years | The data quality was assessed in accordance with the Commission Recommendation 2013/179/EU (PEF) and UNI EN 15804:2019 (Annex E). For each dataset, three scores were assigned related to temporal representativeness (TiR), technical representativeness (TeR), and geographical representativeness (GR), following the criteria set out in Table 5 of the PEF Recommendation. The overall Data Quality Rating (DQR) was then calculated as the arithmetic mean of these three values: DQR = (TiR + TeR + GR) / 3. Based on the obtained value, datasets were classified into quality levels ranging from “excellent” to “poor,” with only those achieving at least a “good quality” level being considered acceptable. Overall, the data quality was considered “very good” and no data were excluded from the analysis in the LCA report. |
|---|
| Process name | Source type | Source | Reference year | Data category | Share of primary data, of GWP-GHG results for A1-A3 |
|---|---|---|---|---|---|
| hexagonal plate recuperator | Company data | Ecoinvent 3.11 | 2024 | primary | 51% |
| battery | Company data | Ecoinvent 3.11 | 2024 | primary | 11% |
| Total share of primary data, of GWP-GHG results for A1-A3 | 62% | ||||
| The share of primary data is calculated based on GWP-GHG results. It is a simplified indicator for data quality that supports the use of more primary data to increase the representativeness of and comparability between EPDs. Note that the indicator does not capture all relevant aspects of data quality and is not comparable across product categories. | |||||
| Comment on the data sources and other information in the table | Within modules A1–A3, 89,7% of the GWP-GHG results are based on primary data. The table reports the processes that contribute more than 10% to the GWP-GHG results of modules A1–A3 that are represented by the hexagonal plate recuperator and the battery |
|---|
| Electricity used in the manufacturing process in A3 (A5 for services) | ||
|---|---|---|
| Type of electricity mix | Residual electricity mix on the market | |
| Energy sources | Hydro | 0% |
| Wind | 1% | |
| Solar | 0% | |
| Biomass | 2% | |
| Geothermal | 0% | |
| Waste | 0% | |
| Nuclear | 0% | |
| Natural gas | 69% | |
| Coal | 7% | |
| Oil | 5% | |
| Peat | 0% | |
| Other | 16% | |
| GWP-GHG intensity (kg CO2 eq./kWh) | 3.72 kg CO2 eq./kWh | |
| Method used to calculate residual electricity mix | The dataset describes the residual mix on the low voltage level in Italy. The shares have been calculated based on statistics from AIB (2023) following the methodology of grexel (2020). |
|---|
System boundary
| Description of the system boundary | a) Cradle to gate with modules C1-C4 and module D (A1-A3 + C + D). |
|---|---|
| Excluded modules | No, there is no excluded module, or there are no excluded modules |
Declared modules
| Product stage | Construction process stage | Use stage | End of life stage | Beyond product life cycle | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Raw material supply | Transport | Manufacturing | Transport to site | Construction installation | Use | Maintenance | Repair | Replacement | Refurbishment | Operational energy use | Operational water use | De-construction demolition | Transport | Waste processing | Disposal | Reuse-Recovery-Recycling-potential | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module | A1 | A2 | A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modules declared | X | X | X | ND | ND | ND | ND | ND | ND | ND | ND | ND | X | X | X | X | X | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Geography | Europe | Europe | Italy | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | Italy | Italy | Italy | Italy | Italy | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Share of specific data | 62% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - products | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Variation - sites | 0% | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Disclaimer | The share of specific/primary data and both variations (products and sites) refer to GWP-GHG results only. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

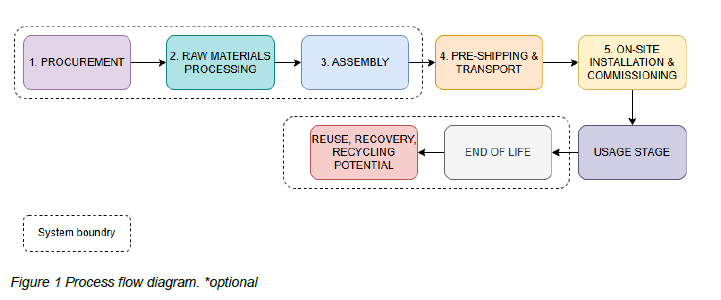

Process flow diagram(s) related images
Default scenario
| Name of the default scenario | Recycling and Disposal Scenario for Air Treatment Units |
|---|---|
| Description of the default scenario | As with EPD EPD-IES-0026332:001, a single end-of-life scenario has been indicated. Therefore, it is not considered necessary to create an alternative scenario. For the scenarios of modules C3 and C4, NPCR was followed (Table 4, section 6.3.8.4). According to the material type 68,2% of recycling was associated to both aluminum and steel in module C3, the remaining 31,8% is sent to landfilling in module C4. According to waste diversion from landfills in Europe, 17% of plastic, mineral wool, and electronics are sent to landfill in C4. And the remaining 83% in module C3 is sent to sorting and shredding. |
Module C: End-of-life
| Explanatory name of the default scenario in module C | End-of-life |
|---|---|
| Brief description of the default scenario in module C | Deconstruction, transport to waste processing and waste processing. |
| Description of the default scenario in module C | For the scenarios of modules C3 and C4, NPCR was followed (Table 4, section 6.3.8.4). According to the material type 68,2% of recycling was associated to both aluminum and steel in module C3, the remaining 31,8% is sent to landfilling in module C4. According to waste diversion from landfills in Europe, 17% of plastic, mineral wool, and electronics are sent to landfill in C4. And the remaining 83% in module C3 is sent to sorting and shredding. |
Reference service life
| Description of the default scenario in reference service life | 25 years with regular maintenance |
|---|
| Reference service life information | Value | Unit |
|---|---|---|
Reference service life | 25 | year(s) |
Module D: Beyond product life cycle
| Explanatory name of the default scenario in module D | Resource recovery stage |
|---|---|
| Brief description of the default scenario in module D | The benefits of recyclable materials. |
| Description of the default scenario in module D | The benefits of recycled metals in module C3 were considered to have a possible environmental benefit as substituted material. |
| Module D information | Value | Unit |
|---|---|---|
| Aluminium, Steel | 68,2 | % |
| plastic, mineral wool, and electronics | 83 | % |
Environmental performance
The estimated impact results are only relative statements, which do not indicate the endpoints of the impact categories, exceeding threshold values, safety margins and/or risks.
Mandatory environmental performance indicators according to EN 15804
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - total | GWP-total | kg CO2 eq. | 2.33E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.24E+0 | 1.17E+0 | 2.35E+0 | 4.85E+0 |
| Climate change - fossil | GWP-fossil | kg CO2 eq. | 2.30E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.24E+0 | 1.17E+0 | 2.26E+0 | 4.80E+0 |
| Climate change - biogenic | GWP-biogenic | kg CO2 eq. | 7.52E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.14E+0 | 7.75E+0 | 8.57E+0 | 3.21E+0 |
| Climate change - land use and land-use change | GWP-luluc | kg CO2 eq. | 1.98E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 4.73E+0 | 4.42E+0 | 4.96E+0 | 9.20E+0 |
| Ozone depletion | ODP | kg CFC-11 eq. | 1.20E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.44E+0 | 2.58E+0 | 6.06E+0 | 3.31E+0 |
| Acidification | AP | mol H+ eq. | 2.14E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.50E+0 | 7.64E+0 | 1.16E+0 | 3.21E+0 |
| Eutrophication aquatic freshwater | EP-freshwater | kg P eq. | 1.07E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 9.86E+0 | 1.07E+0 | 2.27E+0 | 2.13E+0 |
| Eutrophication aquatic marine | EP-marine | kg N eq. | 2.58E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.49E+0 | 3.18E+0 | 5.05E+0 | 5.36E+0 |
| Eutrophication terrestrial | EP-terrestrial | mol N eq. | 5.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.92E+0 | 3.48E+0 | 4.95E+0 | 5.80E+0 |
| Photochemical ozone formation | POCP | kg NMVOC eq. | 8.84E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.96E+0 | 1.09E+0 | 1.78E+0 | 1.76E+0 |
| Depletion of abiotic resources - minerals and metals | ADP-minerals&metals1 | kg Sb eq. | 8.10E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.35E+0 | 3.22E+0 | 6.39E+0 | 4.14E+0 |
| Depletion of abiotic resources - fossil fuels | ADP-fossil1 | MJ, net calorific value | 2.97E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.72E+0 | 1.85E+0 | 4.35E+0 | 5.21E+0 |
| Water use | WDP1 | m3 world eq. deprived | 6.16E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 7.33E+0 | 3.56E+0 | 4.17E+0 | 9.06E+0 |
| Acronyms | GWP-fossil = Global Warming Potential fossil fuels; GWP-biogenic = Global Warming Potential biogenic; GWP-luluc = Global Warming Potential land use and land use change; ODP = Depletion potential of the stratospheric ozone layer; AP = Acidification potential, Accumulated Exceedance; EP-freshwater = Eutrophication potential, fraction of nutrients reaching freshwater end compartment; EP-marine = Eutrophication potential, fraction of nutrients reaching marine end compartment; EP-terrestrial = Eutrophication potential, Accumulated Exceedance; POCP = Formation potential of tropospheric ozone; ADP-minerals&metals = Abiotic depletion potential for non-fossil resources; ADP-fossil = Abiotic depletion for fossil resources potential; WDP = Water (user) deprivation potential, deprivation-weighted water consumption | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The results of this environmental impact indicator shall be used with care as the uncertainties of these results are high or as there is limited experience with the indicator | ||||||||||||||||
Additional mandatory environmental performance indicators
| Impact category | Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Climate change - GWP-GHG | GWP-GHG1 | kg CO2 eq. | 2.32E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.23E+0 | 1.16E+0 | 2.24E+0 | 4.78E+0 |
| Acronyms | GWP-GHG = Global warming potential greenhouse gas. | ||||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | ||||||||||||||||
| Disclaimer 1 | The GWP-GHG indicator is termed GWP-IOBC/GHG in the ILCD+EPD+ data format. The indicator accounts for all greenhouse gases except biogenic carbon dioxide uptake and emissions and biogenic carbon stored in the product. As such, the indicator is identical to GWP-total except that the CF for biogenic CO2 is set to zero. | ||||||||||||||||
Resource use indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PERE | MJ, net calorific value | 6.41E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.98E+0 | 3.13E+0 | 5.21E+0 | 1.20E+0 |
| PERM | MJ, net calorific value | 7.95E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 7.95E+0 | 7.95E+0 |
| PERT | MJ, net calorific value | 6.41E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 3.98E+0 | 3.13E+0 | 4.42E+0 | 1.20E+0 |
| PENRE | MJ, net calorific value | 2.97E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.72E+0 | 1.85E+0 | 5.09E+0 | 5.22E+0 |
| PENRM | MJ, net calorific value | 7.36E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 7.36E+0 | 7.36E+0 |
| PENRT | MJ, net calorific value | 2.97E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.72E+0 | 1.85E+0 | 4.35E+0 | 5.21E+0 |
| SM | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| RSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| NRSF | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| FW | m3 | 3.74E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 2.77E+0 | 9.15E+0 | 5.34E+0 | 4.11E+0 |
| Acronyms | PERE = Use of renewable primary energy excluding renewable primary energy resources used as raw materials; PERM = Use of renewable primary energy resources used as raw materials; PERT = Total use of renewable primary energy resources; PENRE = Use of non-renewable primary energy excluding non-renewable primary energy resources used as raw materials; PENRM = Use of non-renewable primary energy resources used as raw materials; PENRT = Total use of non-renewable primary energy re-sources; SM = Use of secondary material; RSF = Use of renewable secondary fuels; NRSF = Use of non-renewable secondary fuels; FW = Use of net fresh water. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Waste indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD | kg | 4.70E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 1.17E+0 | 1.26E+0 | 3.05E+0 | 1.25E+0 |
| NHWD | kg | 1.37E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 5.28E+0 | 8.22E+0 | 1.25E+0 | 3.16E+0 |
| RWD | kg | 6.09E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 8.10E+0 | 5.44E+0 | 5.55E+0 | 6.69E+0 |
| Acronyms | HWD = Hazardous waste disposed; NHWD = Non-hazardous waste disposed; RWD = Radioactive waste disposed. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Output flow indicators according to EN 15804
| Indicator | Unit | A1-A3 | A4 | A5 | B1 | B2 | B3 | B4 | B5 | B6 | B7 | C1 | C2 | C3 | C4 | D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CRU | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| MFR | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 3.09E+0 | 0.00E+0 | 3.09E+0 |
| MER | kg | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EEE | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| EET | MJ, net calorific value | 0.00E+0 | ND | ND | ND | ND | ND | ND | ND | ND | ND | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 | 0.00E+0 |
| Acronyms | CRU = Components for re-use; MFR = Materials for recycling; MER = Materials for energy recovery; EEE = Exported electrical energy; EET = Exported thermal energy. | |||||||||||||||
| General disclaimer | The results of the end-of-life stage (modules C1-C4) should be considered when using the results of the product stage (modules A1-A3/A1-A5 for services). | |||||||||||||||
Information related to EPDs of multiple products
| Justification for why this is representative | The SC series air handling units are available in various standard dimensional configurations capable of guaranteeing air flow rates of up to 45,000 m³/h. The combination of the various modular sections proposed for each size allows the creation of units suitable for various needs of air intake/extraction/cooling/heating/recovery/energy recovery/filtering in the environment for which the installation is intended. The SC series can also be configured in "non-standard" versions specifically designed and sized according to the specific needs of the Customer. For the purposes of the environmental assessment conducted through the LCA methodology, a worstcase approach was adopted, selecting the SC305 model as the representative declared unit. This model, belonging to the SC series, has the maximum dimensions and the highest air flow rate, thus being the most burdensome in terms of consumption of materials, energy and potential environmental impacts. This choice allows us to guarantee a precautionary assessment. For completeness of information, the additional configurations of the SC range are reported below, ordered by increasing capacity: SC18, SC30, SC35, SC50, SC70, SC90, SC120, SC140, SC170, PAGE 4/17 SC200, SC240, SC265, SC300 and SC305.The support structure is constituted by a strong base in bent plate full of points for lifting and handling. |
|---|
Abbreviations
NOT APPLICABLE
References
a) General Programme Instructions of the International EPD® System. Version 5.0.1
b) PCR 2019:14. CONSTRUCTION PRODUCTS 2.0.1
c) c-PCR-018 Ventilation components (Adapted from EPD Norway, "Part B for ventilation com ponents" NPCR 030 version 1.1)
d) Report LCA_Idroair_2024_rev02
e) For the development of the inventory and the calculation of eco-profiles, the SimaPro 9 software was used, and the database "ECOINVENT 3.11" was selected. To characterize the inventory data in relation to the various impact categories relevant to the system under analysis, the "EN 15804 +A2 Method" was applied as the calculation method.
Version history
First year certification, original version of the EPD
Version 001, 2025-09-19
Original version of the EPD
