EPD-IES-0024949:002

Triple-glazed insulating glass unit (IGU) with uncoated and coated glass (4/12/4/12/4)

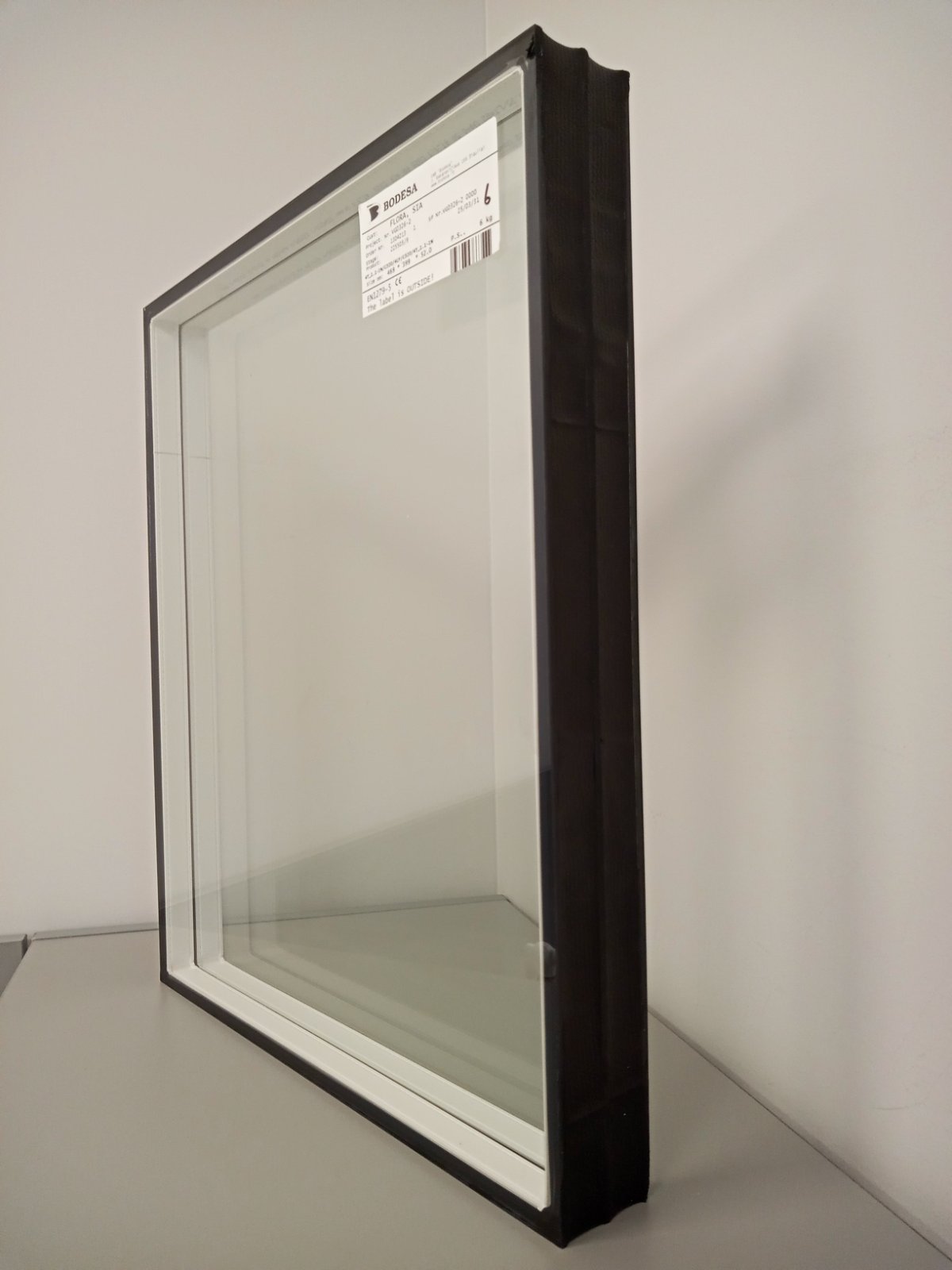

A triple-glazed insulating glass unit is made up of three 4 mm thick glass panes with spacer frames between them. The unit is hermetically sealed along its perimeter. The middle glass pane is uncoated, while the outer and inner glass panes are coated float glass. The space between the panes is filled with argon gas, and the unit features primary and secondary seals along with the spacer bars. The design, dimensions, glass coating and properties of the glass unit are selected by calculation, taking into account the application and specific performance characteristics.

Registration number	EPD-IES-0024949:002
PCR	2019:14 Construction products (EN 15804+A2) 2.0.1
c-PCR	2019:14-c-PCR-009 Being updated - Flat glass products used in buildings and other construction works (EN 17074) (c-PCR to PCR 2019:14) 1.0.0
Status	Valid
Publication date	2025-07-07
Valid until	2030-07-07
EN 15804 compliant	Yes
Geographical scope	Europe

Company name	UAB "BODESA"
Country	Lithuania
Contact	bodesa@bodesa.lt
Website	www.bodesa.lt

This EPD is representative of triple-glazed insulating glass units composed of one 4 mm thickness uncoated and two 4 mm thickness coated glass panes with spacer frames between them. The coated glass types include solar control, low-emissivity (low-E), and reflective coatings, which vary by their ability to reduce heat gain, improve insulation, and alter visual appearance (neutral, tinted, or reflective).
