EPD-IES-0024169:003

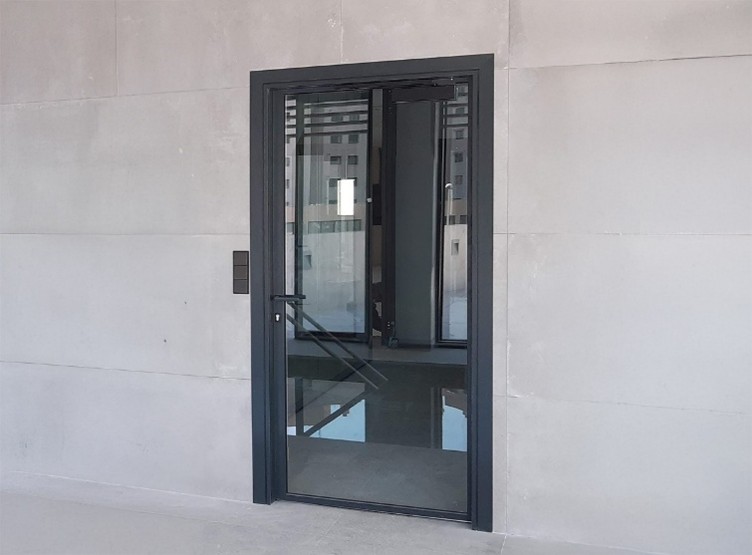

SERIE TREBE. ST-815: FRAMED SINGLE GLASS DOOR E:50 EXPANDABLE FRAME SYSTEM
The product analyzed is a straight-shaped extruded aluminum telescopic frame with a matte silver anodized finish or 9011 extra-matte black lacquer or 9010 smooth matte white lacquer. Designed to integrate perfectly into partition walls or plasterboard enclosures. The pressure-mounted system allows for partitions with thicknesses from 98 to 135 mm.
- 6+6 or 5+5 mm thick laminated glass hinged panel framed in aluminum.
- Perimeter sealing rubber seal on the extendable frame sash provides perfect cushioning and insulation for access doors.
- Stainless steel hardware (lock, handle, and hinges).
- Cradle-to-Cradle Bronze certified system.
- Mechanics and Functionality certified (UNE-EN 41955-2) for maximum use (use category 4).
Their dimensions are 2750 mm high x 1000 mm wide, with a total surface area of 2.75 m2.
Updated
| Registration number | EPD-IES-0024169:003 |
|---|---|
| Status | Valid |
| Version date | 2026-03-10 |
| Validity date | 2030-06-17 |
| PCR | 2019:14 Construction products (EN 15804+A2) (version 1.3.4) 1.3.4 |
| Standards conformance | ISO 14025:2006, EN 15804:2012+A2:2019/AC:2021 |
| Geographical scope | Global |
| LCA Practitioners | Marcel Gómez Ferrer, info@marcelgomez.com, SITAB SYSTEM S.L. |
