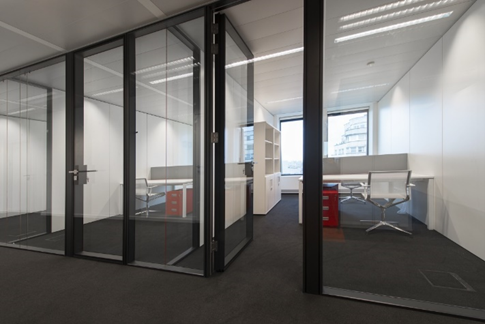

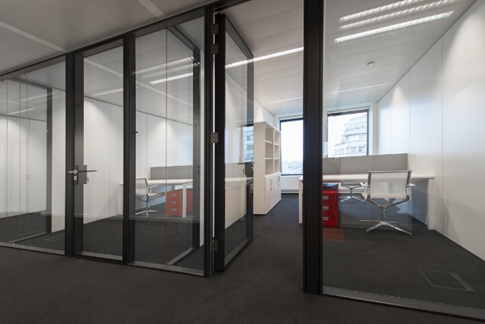

ST - 440: FRAMED GLASS DOORS E:100

• Passage door module with an interior structure made of galvanized steel and an exterior frame made of aluminum profiles.
• Swinging door panel made of 5 mm thick tempered double-pane glass with silkscreen printing and an aluminum frame.
• Stainless steel hardware (lock, handle, and hinges).
• Total system thickness: 100 mm.
• Cradle-to-Cradle Bronze certified system.
• Mechanical and Functional Certification (UNE-EN 41955-2) for maximum use (use category 4).
• Sound reduction up to 37 dB.

ST-440 is made up of 42 components from four different material groups. Its dimensions are 2750 mm high x 1000 mm wide, with a total surface area of 2.75 m2.

Optionally, the TREBE SERIES ST-440 is available in a second version that includes the KUBIK structure.

The KUBIK structure, also referred to as ST-700, is a self-supporting aluminum frame with concealed floor fixation, designed to support the various modular partition systems of the TREBE SERIES.

ST-700 consists of 18 components grouped into 3 different material categories. Its dimensions are 4200 mm in height, 4200 mm in width, and 2600 mm in length, forming a structure capable of supporting a total surface area of 61.32 m² of vertical partition system.

Since ST-700 is an optional component that can be used with all other modules, its environmental impacts will be calculated and considered accordingly. If this structure is included, the weight per square meter of each module increases by 2.12 kg/m².

For the ST-440 SERIES, incorporating the KUBIK structure results in a total weight of 33.54 kg/m².
