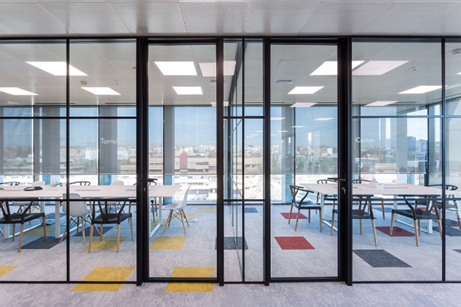

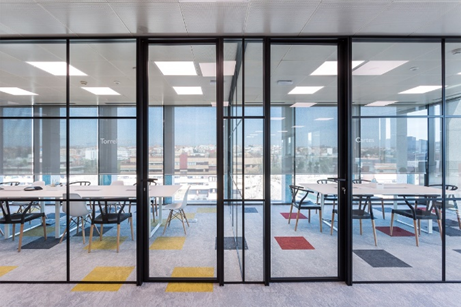

ST - 415: FRAMED ONE GLASS DOOR E:50

• Passage door module with an interior structure made of galvanized steel and an exterior frame made of aluminum profiles.
• 6+6 thick laminated glass swing sash framed in aluminum.
• Stainless steel hardware (lock, handle, and hinges).
• Total system thickness: 100 mm.
• Cradle-to-Cradle Bronze certified system.
• Mechanical and Functional Certification (UNE-EN 41955-2) for maximum use (use category 4).
• Sound reduction up to 36 dB.

ST-415 is made up of 37 components from four different material groups. Its dimensions are 2750 mm high x 1000 mm wide, with a total surface area of 2.75 m2.

Optionally, the TREBE SERIES ST-415 is available in a second version that includes the KUBIK structure.

The KUBIK structure, also referred to as ST-700, is a self-supporting aluminum frame with concealed floor fixation, designed to support the various modular partition systems of the TREBE SERIES.

ST-700 consists of 18 components grouped into 3 different material categories. Its dimensions are 4200 mm in height, 4200 mm in width, and 2600 mm in length, forming a structure capable of supporting a total surface area of 61.32 m² of vertical partition system.

Since ST-700 is an optional component that can be used with all other modules, its environmental impacts will be calculated and considered accordingly. If this structure is included, the weight per square meter of each module increases by 2.12 kg/m².

For the ST-415 SERIES, incorporating the KUBIK structure results in a total weight of 34.11 kg/m².
