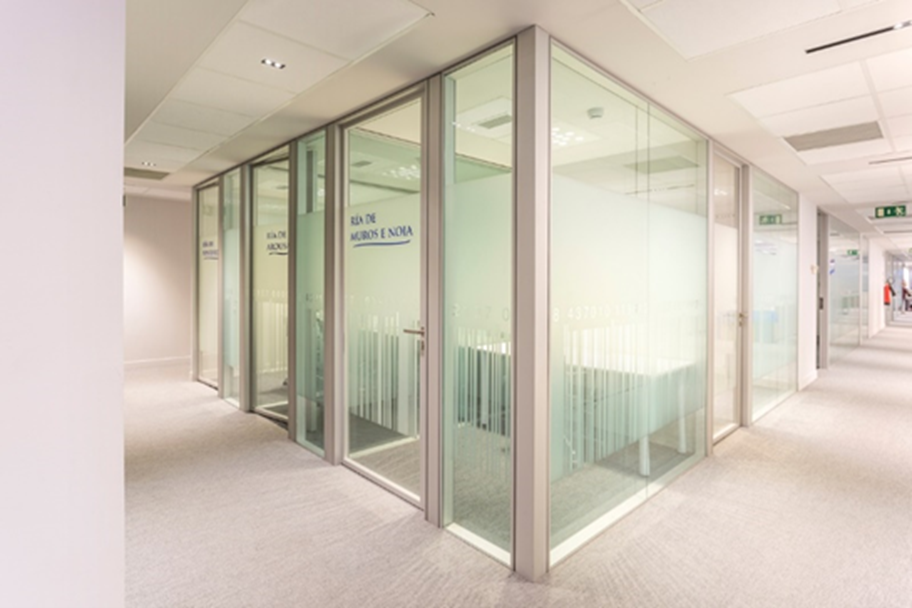

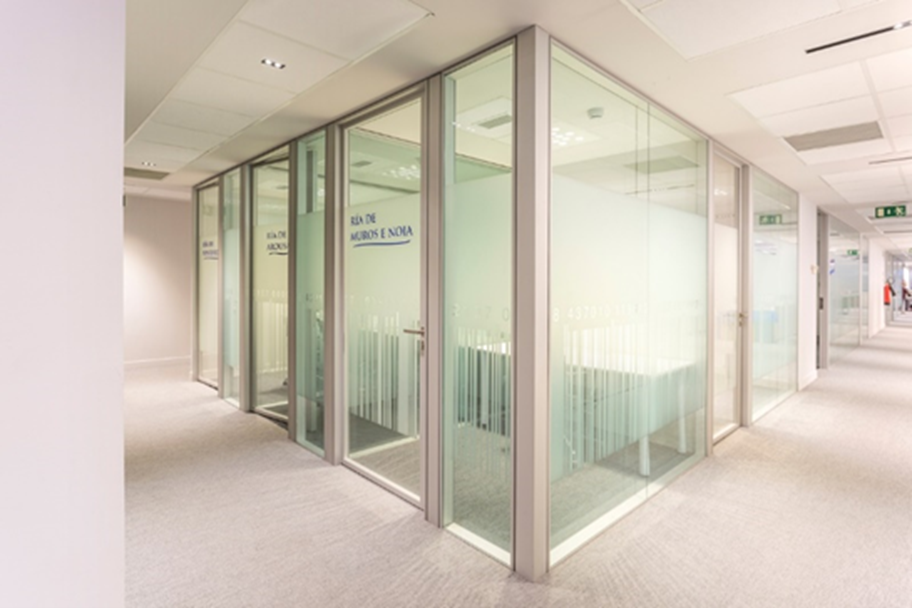

ST - 420: FRAMED GLASS DOORS E:50

• swing door module with internal structure made of galvanized steel and external frame made of aluminum profiles.
• Double-leaf door panel composed of 5 mm thick tempered glass, framed in aluminum.
• Hardware (lock, handle, and hinges) made of stainless steel.
• Total system thickness: 100 mm.
• Certified by Cradle to Cradle at Bronze level.
• Mechanics and functionality certified according to UNE-EN 41955-2 for maximum performance (use category 4).
• Acoustic reduction: up to 34 dB.

The ST-420 consists of 38 components made from 4 different material groups. Its dimensions are 2750 mm in height and 1000 mm in width, with a total surface area of 2.75 m².

Optionally, the TREBE SERIES ST-420 is available in a second version that includes the KUBIK structure.

The KUBIK structure, also referred to as ST-700, is a self-supporting aluminum frame with concealed floor fixation, designed to support the various modular partition systems of the TREBE SERIES.

ST-700 consists of 18 components grouped into 3 different material categories. Its dimensions are 4200 mm in height, 4200 mm in width, and 2600 mm in length, forming a structure capable of supporting a total surface area of 61.32 m² of vertical partition system.

Since ST-700 is an optional component that can be used with all other modules, its environmental impacts will be calculated and considered accordingly. If this structure is included, the weight per square meter of each module increases by 2.12 kg/m².

For the ST-420 SERIES, incorporating the KUBIK structure results in a total weight of 30.81 kg/m².
