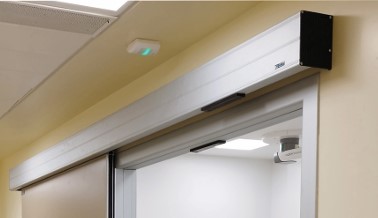

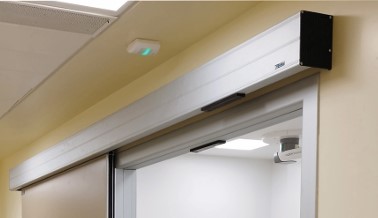

ETH-E Automation for sliding door hermetically sealed for hospital environments

Automation for single-leaf hermetically sealed sliding doors.

Maximum leaf weight: 150Kg for ETH-E model / 250Kg for ETH-E/HW model.

Automation dimensions (H x D x L): 180x135 mm x L. max. 4500 mm.

The automation structure consists of an aluminum transom and cover, single-wheel trolleys, antistatic belt, and an

aluminum sliding track suspended on a noise-reducing polizene guide.

The ETH-E automation system can be installed with a stainless steel panel, an HPL laminate panel, or a glass door leaf.

The door moves horizontally and when it is about to close it automatically manages the lowering and translation

movement of the door, so that it gets closer to both the wall and the floor thus ensuring a hermetic seal by

compressing special rubber gaskets on the four sides of the door.

ETH-E is equipped with a brushless motor, ensuring high performance and

long durability.
