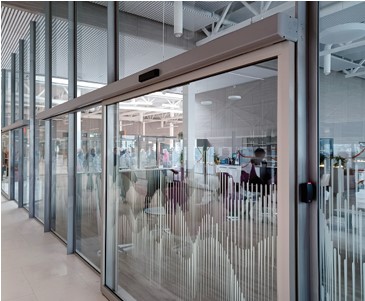

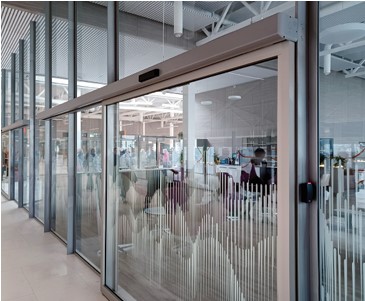

ETERNA 200 Architectural automation for sliding doors

Automation for single or double leaf sliding doors.

Maximum leaf weight: 200 kg for the double-leaf model / 300 kg for the single-leaf model.

Automation dimensions (H x D x L): 120x150 mm x max. length 6500 mm.

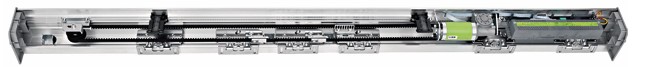

The automation structure consists of an aluminum transom, a cover casing with anti-fall joints, double-wheel trolleys,

an antistatic belt, and side panels made of ABS plastic.

ETERNA 200 is equipped with a brushless motor, ensuring high performance and long durability.

The electronic control unit, designed with a high-efficiency, low-power consumption switching power supply, manages

motor movement control and all command and safety components of the automation system.

Configuration and settings of ETERNA 200 doors is done via a digital display programmer or using the Label Tools app.

Program selector for the user is available in mechanical key version or digital version.

ETERNA 200 integrates with Label profile systems series LB18, LB35, and LB50, including panic break-out versions, as

well as with other profile systems available on the market.
