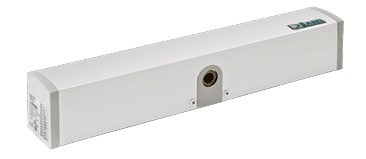

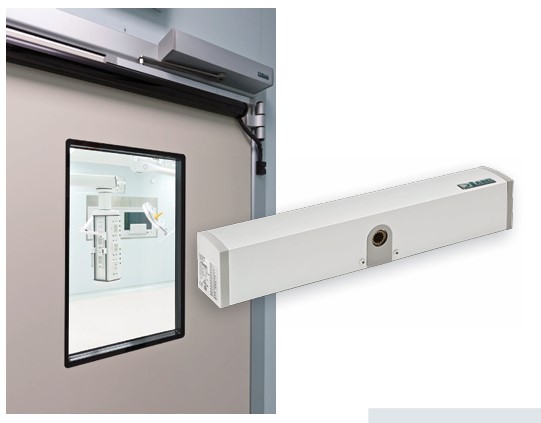

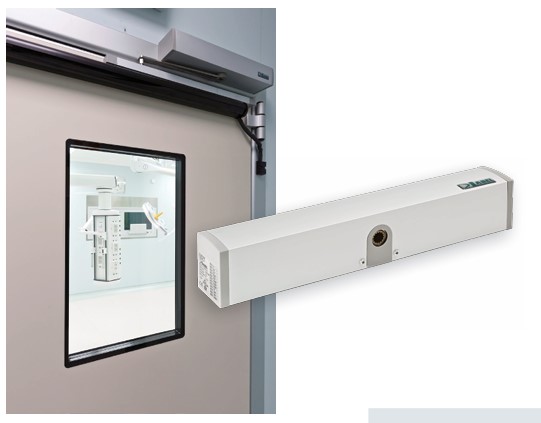

NEXT 150 Ultra-compact architectural automation for swing doors

Automation for swing doors with motorized closing.

Maximum leaf weight: 150 kg

Automation dimensions (L x H x W): 420 x 60 x 76 mm

Suitable for single-leaf and double-leaf doors.

NEXT 150 can be installed with pull arms for doors opening inward, or with push arms for doors opening outward.

NEXT 150 is designed with a brushless motor, ensuring reliability, high performance and long durability.

The electronic control unit, equipped with a high-efficiency, low-consumption switching power supply, manages motor

movement control and all command and safety components of the automation system.

Supports electric strike / electromagnetic door lock management.

Push & Go feature for door opening with a light push on the leaf.

NEXT 150 door configuration is performed by the digital display programmer or through the Label Tools app.

Manual or digital user program selector available.

NEXT 150 complies with the essential safety requirements of the following directives:

• Low Voltage Directive (LVD) 2014/35/EU

• Electromagnetic Compatibility Directive (EMC) 2014/30/EU

• Machinery Directive 2006/42/EC

Compliant with European standards:

EN 16005

EN 13849-1

EN 13849-2 (operator in category 2, pl = d)

EN 61000-6-2

EN 61000-6-3

EN 60335-2-103

Compliant with standard for safety:

UL 325
