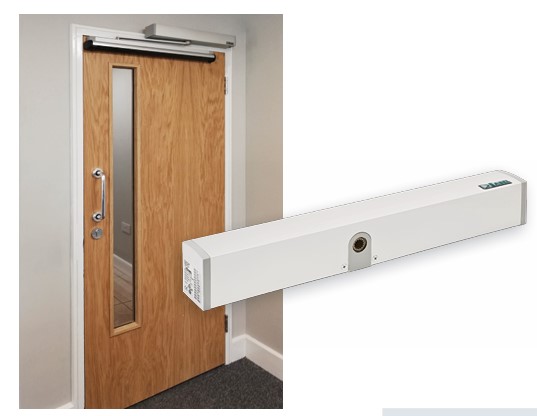

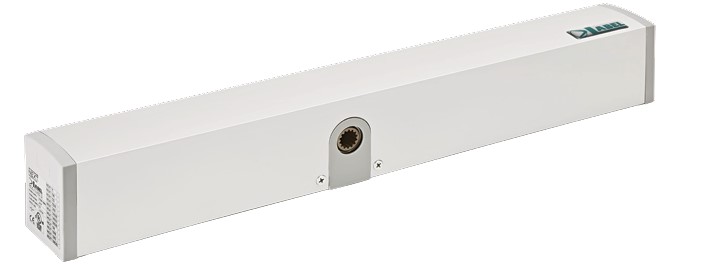

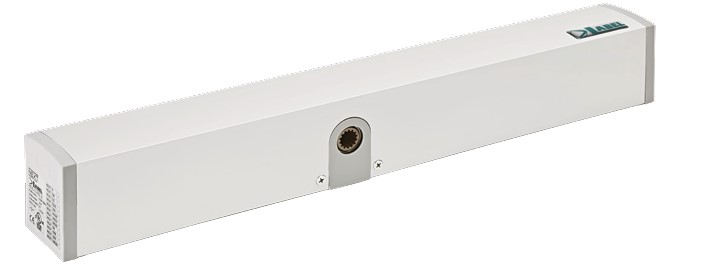

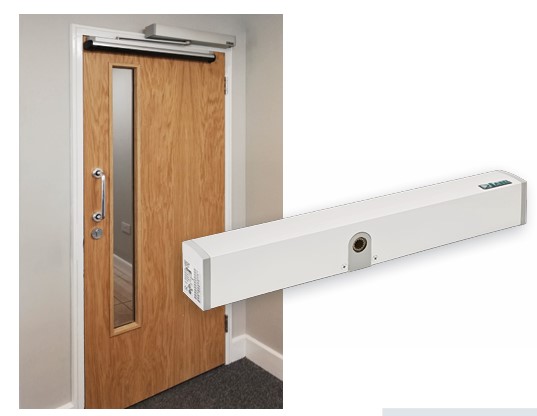

NEXT 120S Ultra-compact architectural automation for swing doors

Automation for swing doors with closing spring.

Maximum leaf weight: 120 kg

Automation dimensions (L x H x W): 520 x 60 x 76 mm.

Suitable for single-leaf and double-leaf doors.

NEXT 120S can be installed with pull arms for doors opening inward, or with push arms for doors opening outward.

NEXT 120S is designed with a brushless motor, ensuring reliability, high performance and long durability.

The electronic control unit, equipped with a high-efficiency, low-consumption switching power supply, manages motor

movement control and all command and safety components of the automation system.

Supports electric strike / electromagnetic door lock management.

Push & Go feature for door opening with a light push on the leaf.

NEXT 120S door configuration is performed by the digital display programmer or through the Label Tools app. Manual

or digital user program selector available.

NEXT 120S complies with the essential safety requirements of the following directives:

• Low Voltage Directive (LVD) 2014/35/EU

• Electromagnetic Compatibility Directive (EMC) 2014/30/EU

• Machinery Directive 2006/42/EC

Compliant with European standards:

EN 16005

EN 13849-1

EN 13849-2 (operator in category 2, pl = d)

EN 61000-6-2

EN 61000-6-3

EN 60335-2-103

Compliant with standard for safety: UL 325
