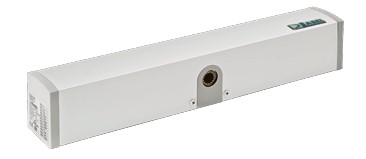

NEXT 75 Ultra-compact architectural automation for swing doors

Automation for interior swing doors with motorized closing.

Maximum leaf weight: 75 kg

Automation dimensions (L x H x W): 420 x 60 x 76 mm.

Suitable for single-leaf and double-leaf doors.

NEXT 75 can be installed with pull arms for doors opening inward, or with push arms for doors opening outward.

NEXT 75 is designed with a brushless motor, ensuring reliability, high performance and long durability.

The electronic control unit, equipped with a high-efficiency, low-consumption switching power supply, manages motor

movement control and all command and safety components of the automation system.

Supports electric strike / electromagnetic door lock management.

Push & Go feature for door opening with a light push on the leaf.

NEXT 75 door configuration is performed by the digital display programmer or through the Label Tools app.

Manual or digital user program selector available.

NEXT 75 complies with the essential safety requirements of the following directives:

• Low Voltage Directive (LVD) 2014/35/EU

• Electromagnetic Compatibility Directive (EMC) 2014/30/EU

• Machinery Directive 2006/42/EC

Compliant with European standards:

EN 16005

EN 13849-1

EN 13849-2 (operator in category 2, pl = d)

EN 61000-6-2

EN 61000-6-3

EN 60335-2-103

Compliant with standard for safety: UL 325
