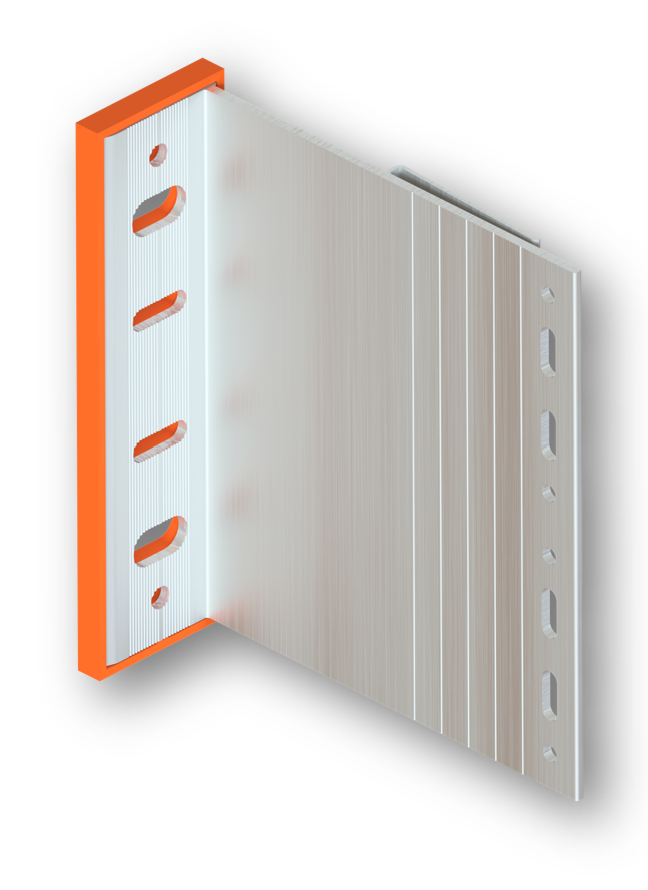

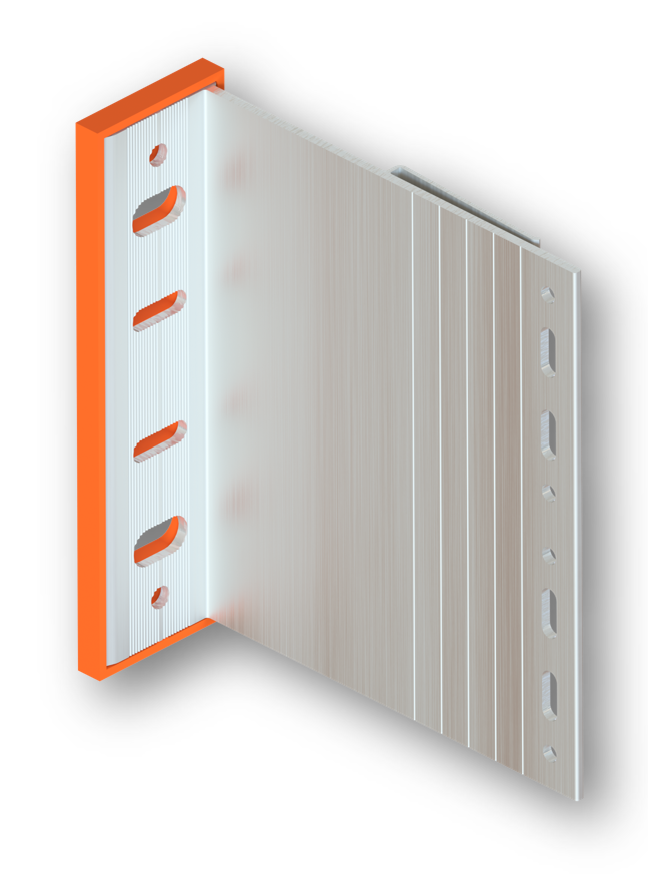

EVT II Aluminium L Brackets

Aluminium brackets for rainscreen are designed in accordance with BS EN 1090-3:2008 and / or Euro code 9 – Part 1. Typical bracket configuration uses the Fixed-Point bracket at the highest position on the vertical rail to support the façade vertical dead loads. The Sliding Point bracket is typically used on all other positions of the vertical rail to absorb the project wind loading. The brackets base has fixing slots suitable for concrete, steel and timber, it also includes slots and holes for Fixed- and Sliding-Point brackets. Brackets are available with thermal pad options to improve overall thermal performance.
