TESA GD25EM2

Product name: GD25EM2

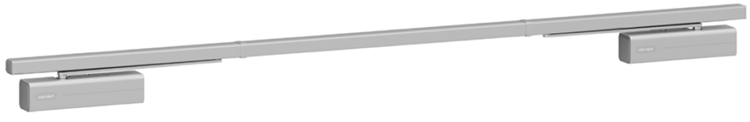

Product charecteristic: Door coordinator device with electronically powered hold-open device

GD25EM2 has the mechanical door coordinator and electro-mechanical hold-open devices are integrated into the guide rail.

∙ Certified in compliance with EN 1155 and EN 1158, size 3-6

∙ Suitable for fire and smoke protection doors

∙ For double leaf doors with hinge distance from 1350/1400 mm up to 2800 mm

∙ Active and passive door lafs can independendly set to hold-open position

∙ Barrier-free according to DIN 18040 (max. leaf width 1250 mm) and CEN/TR 15894

∙ Suitable for hinge side and non-hinge side mounting (non-hinge side requires hook arm)

∙ Height-adjustable, grooved spindle (14 mm) compensates installation mistakes
