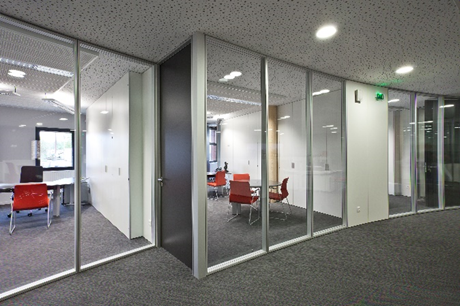

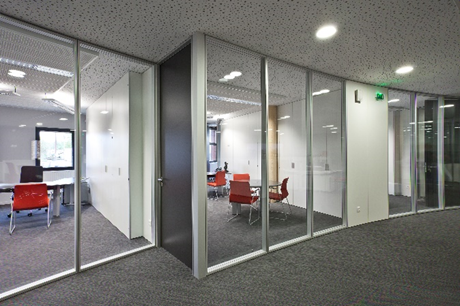

ST – 001: FRAMED DOUBLE GLASS WALL

System with internal structure made of galvanized steel. The interior structure is covered on both sides with glass framed in aluminum, 5 mm or 3 + 3 mm laminated.

- Series: TREBE

-The glass panels are fixed to the structure by means of clips, which allow the glass to be mounted and disassembled as many times as necessary.

- Total thickness of the system: 100 mm.

- Acoustic reduction up to 46 dB.

Optionally, the TREBE SERIES ST-001 is available in a second version that includes the KUBIK structure.

The KUBIK structure, also referred to as ST-700, is a self-supporting aluminum frame with concealed floor fixation, designed to support the various modular partition systems of the TREBE SERIES.

ST-700 consists of 18 components grouped into 3 different material categories. Its dimensions are 4200 mm in height, 4200 mm in width, and 2600 mm in length, forming a structure capable of supporting a total surface area of 61.32 m² of vertical partition system.

Since ST-700 is an optional component that can be used with all other modules, its environmental impacts will be calculated and considered accordingly. If this structure is included, the weight per square meter of each module increases by 2.12 kg/m².

For the ST-001 SERIES, incorporating the KUBIK structure results in a total weight of 36.40 kg/m².
