ETERNA 70 - Architectural automation

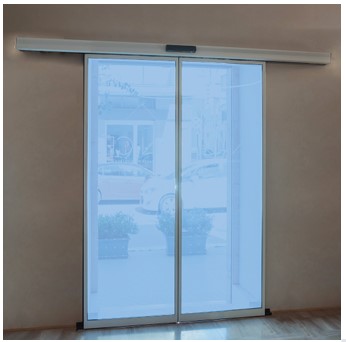

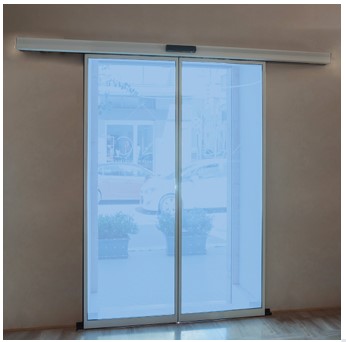

Automation for single or double leaf sliding doors.

Maximum leaf weight: 70 kg for the double-leaf model / 90 kg for the single-leaf model.

Automation dimensions (H x D x L): 100x135 mm x max. length 6500 mm.

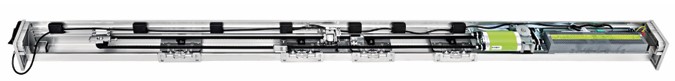

The automation structure consists of an aluminum transom, cover with anti-fall cables, double-wheel trolleys, antistatic belt, and ABS plastic side panels.

ETERNA 70 is equipped with a brushless motor, ensuring high reliability and long durability.

The electronic control unit, designed with a high-efficiency, low-power consumption switching power supply, manages motor movement control and all command and safety components of the automation system.

Configuration and settings of ETERNA 70 doors is done via a digital display programmer or using the Label Tools app.

Program selector for the user is available in mechanical key version or digital version.

ETERNA 70 integrates with Label profile systems series LB18, LB35, and LB50, as well as with other profile systems available on the market.

ETERNA 70 complies with the essential safety requirements of the following directives:

• Low Voltage Directive LVD 2014/35/EU

• Electromagnetic Compatibility Directive EMC 2014/30/EU

• Machinery Directive 2006/42/EC

Compliant with European standards:

EN 16005

EN 13849-1

EN 13849-2 (operator in category 2, PL = d)

EN 61000-6-2

EN 61000-6-3

EN 60335-2-103

Compliant with standard for safety:

UL 325
