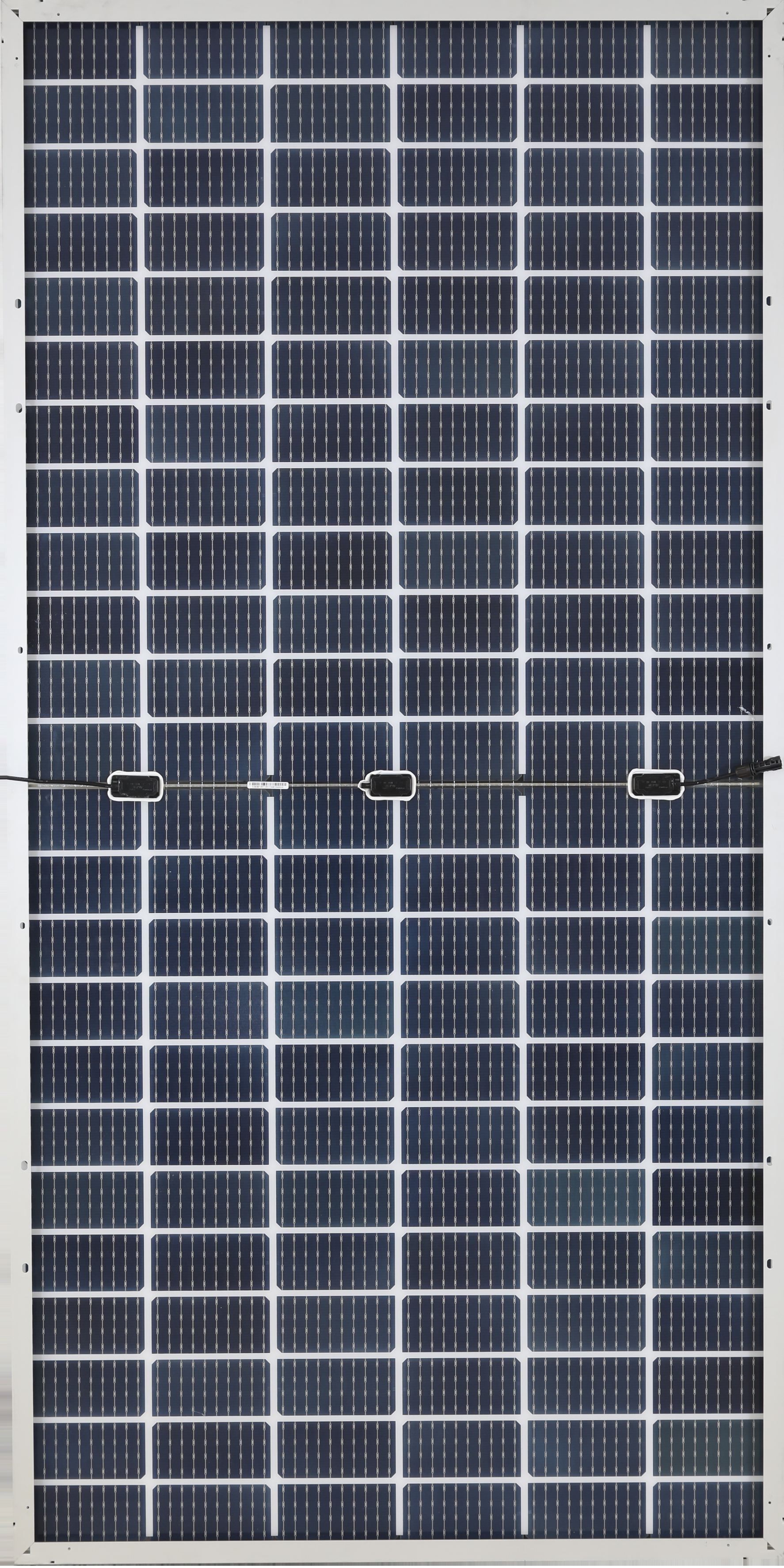

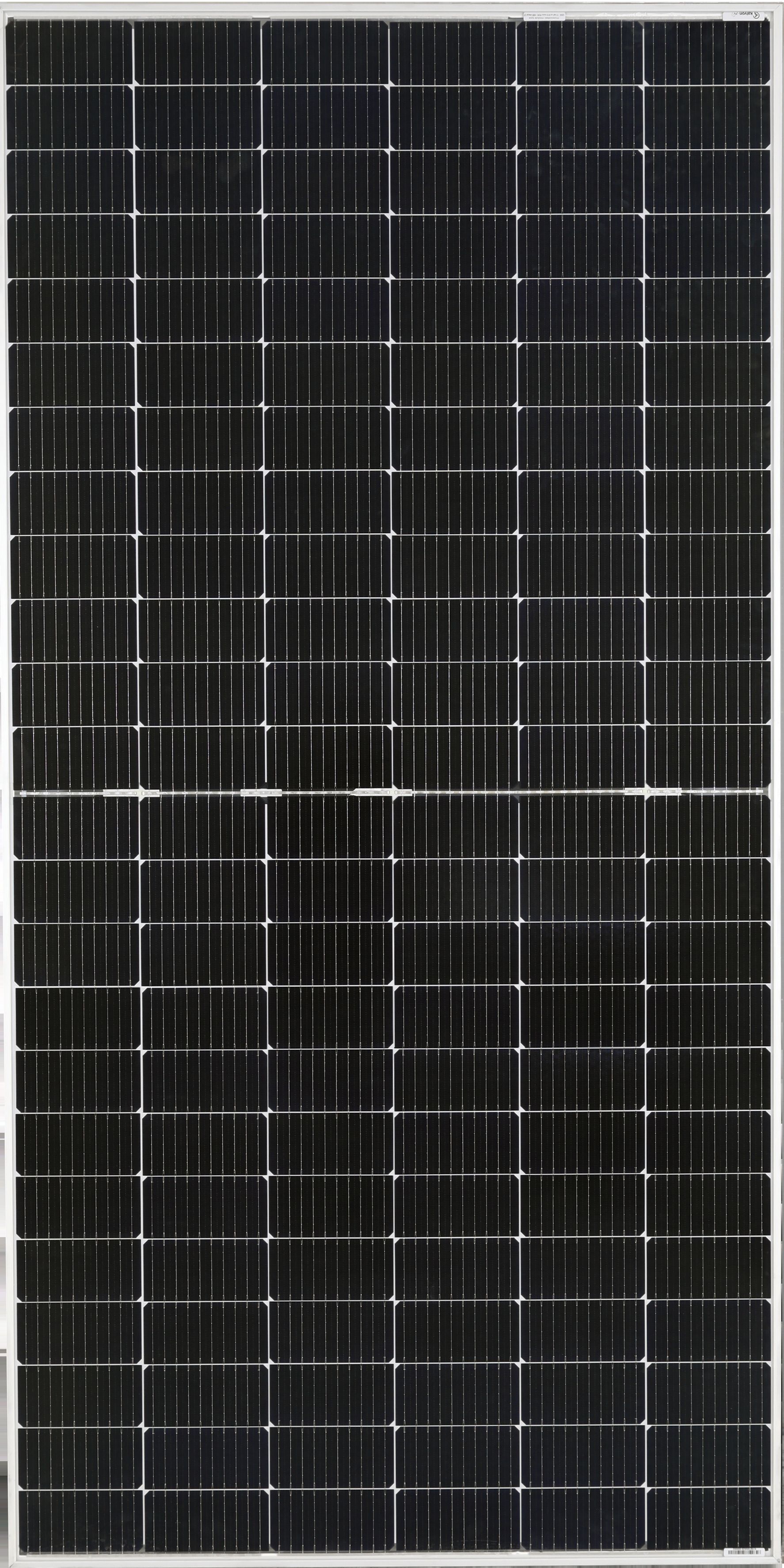

N TYPE TOPCON - DOUBLE GLASS BIFACIAL HALF CUT FRAMED PHOTOVOLTAIC MODULE

The N-Type TOPCON – Double Glass Bifacial Half Cut Framed Photovoltaic Module, manufactured by Kalyon PV, is a high-efficiency, half-cell, dual-glass solar panel. This EPD covers the environmental performance of the module, which is produced entirely at Kalyon PV’s integrated facility in Ankara, Türkiye. Only the module assembly stage is included, as the solar cells are procured externally.

The assessed module weighs approximately 32 ±0.5 kg, with a total panel area of 2.59 m². It consists of 144 half-cut N-type TOPCON monocrystalline cells, each measuring 182 mm × 91 mm. The cells are encapsulated between two 2 mm anti-reflective tempered glass layers using POE encapsulant, framed with anodized aluminum, and integrated with a three-part junction box to form a sealed and durable unit.

The module supports a system voltage of 1500 VDC and provides robust mechanical strength withstanding up to +5400 Pa front load and −3600 Pa rear load. With dimensions of 2285 mm × 1134 mm, it is ideal for utility-scale and high-performance photovoltaic installations. The product complies with IEC 61215, IEC 61730, and UL 61730 standards and is classified with Fire Rating Type 2 (IEC) / Flame Spread Class 29.
