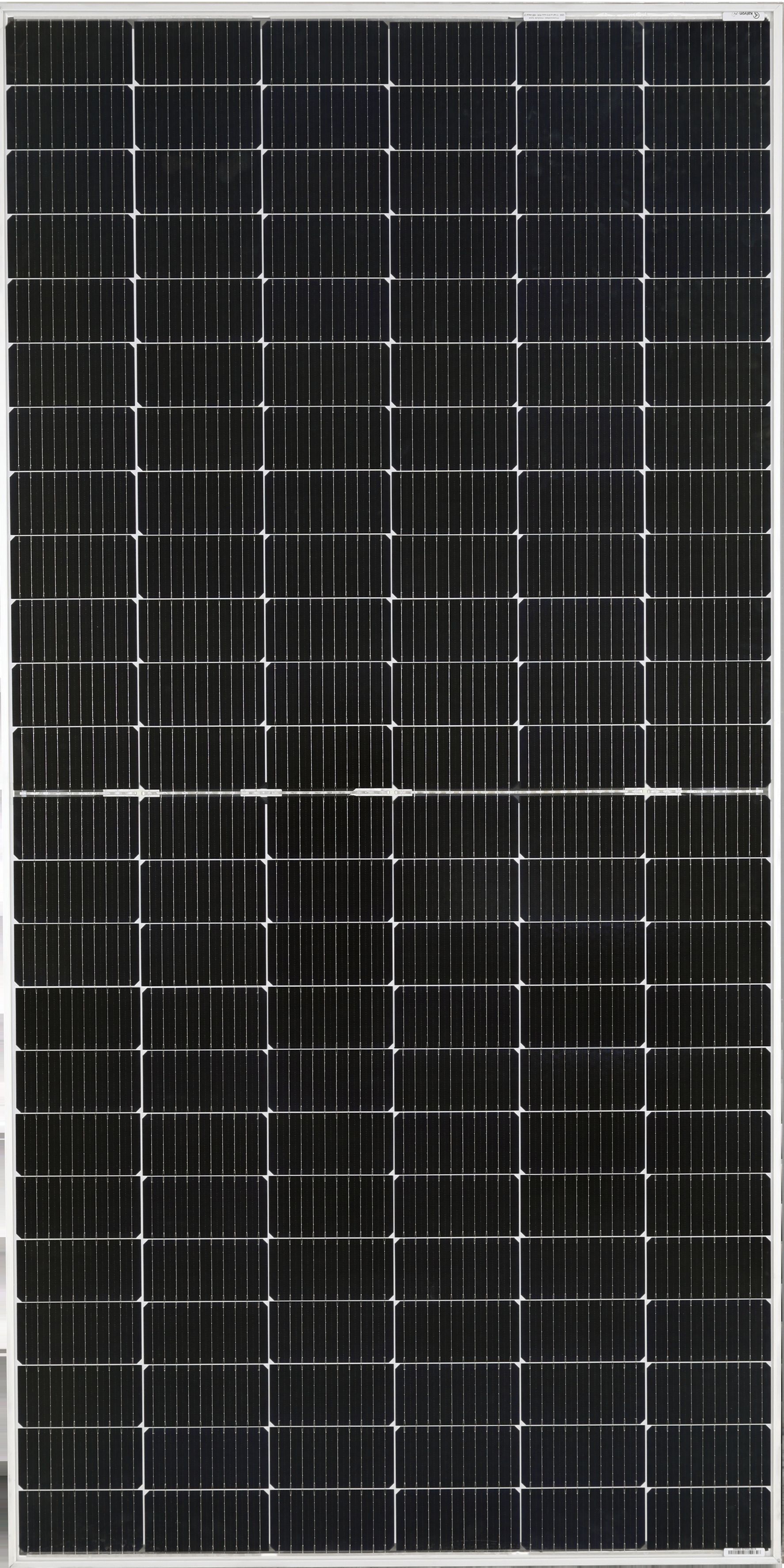

M10-144 DOUBLE GLASS BIFACIAL HALF CUT FRAMED PHOTOVOLTAIC MODULE

The M10-144 Double Glass Bifacial Half Cut Framed Photovoltaic Module is a high-performance solar panel manufactured by Kalyon PV at its fully integrated production facility in Ankara, Türkiye. This module features 144 half-cut monocrystalline PERC cells arranged in a 6x24 configuration, laminated between two 2.0 mm anti-reflective tempered glass layers and framed with anodized aluminum for enhanced durability.

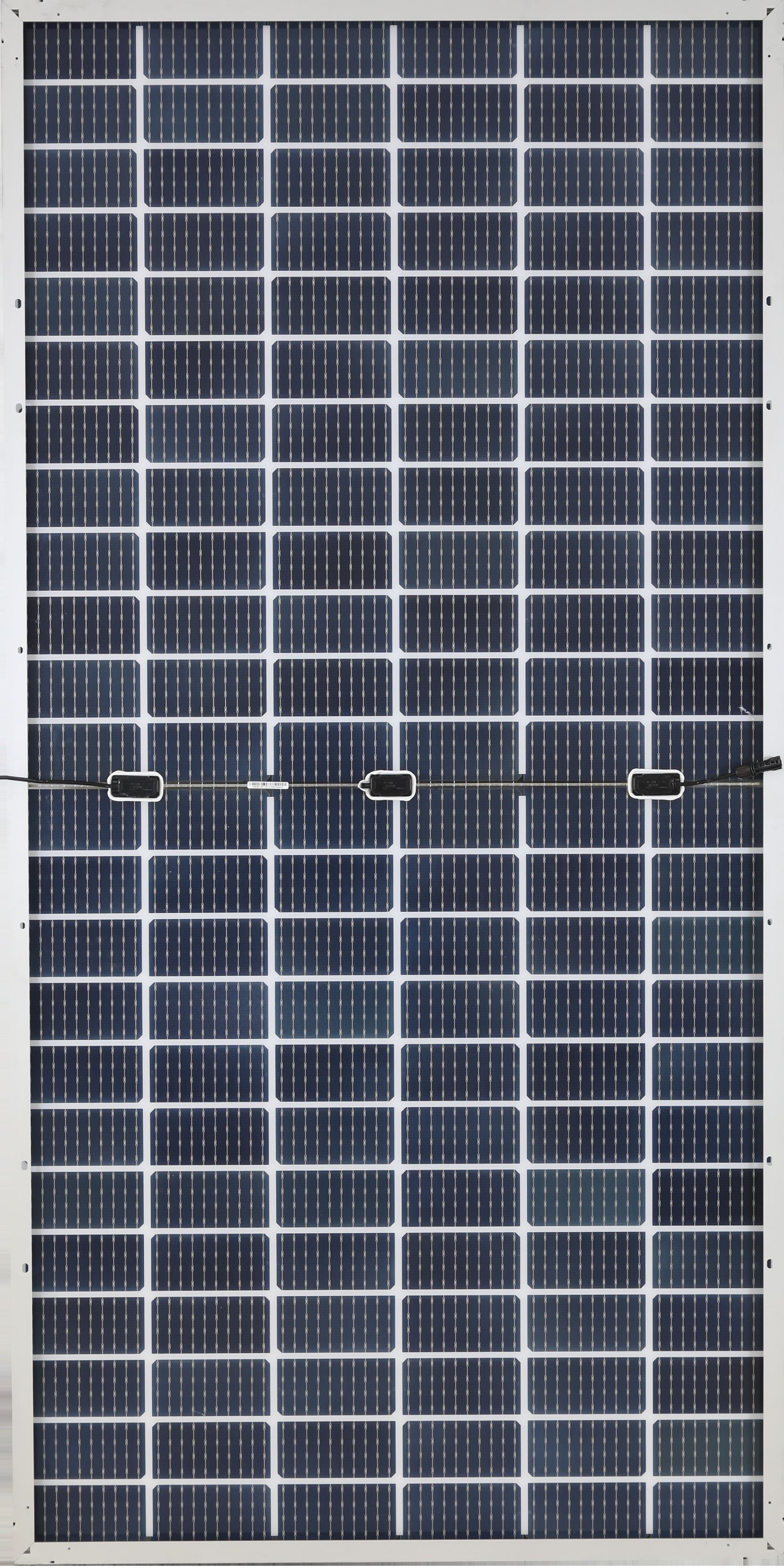

Thanks to its bifacial design, the module can capture solar radiation from both front and rear sides, improving energy yield, especially under diffused or reflective conditions. It has excellent mechanical strength (up to +5400 Pa front / −3600 Pa rear load), a nominal system voltage of 1500 VDC, and high resistance to extreme temperatures (−40 °C to +85 °C). The module complies with IEC 61215, IEC 61730, and UL 61730-1/2 standards, and holds ISO 9001, ISO 14001, ISO 45001, ISO 50001, and ISO 27001 certifications.

Offering high efficiency, long-term reliability, and robust construction, this module is suitable for residential, commercial, and utility-scale applications aiming to meet modern energy and sustainability goals.
