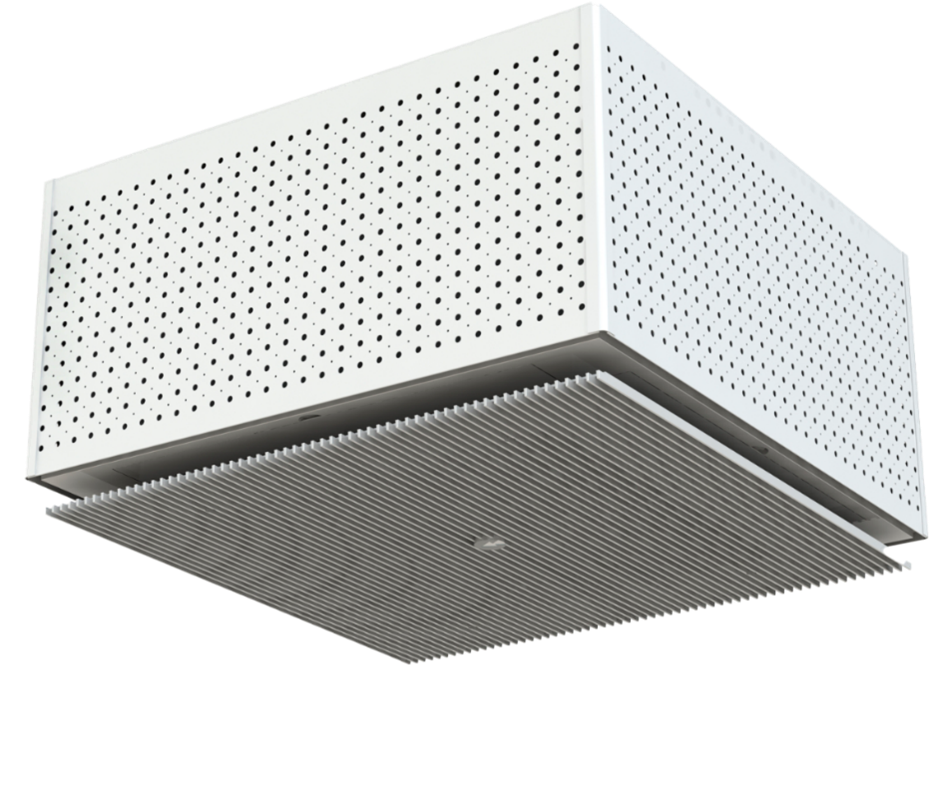

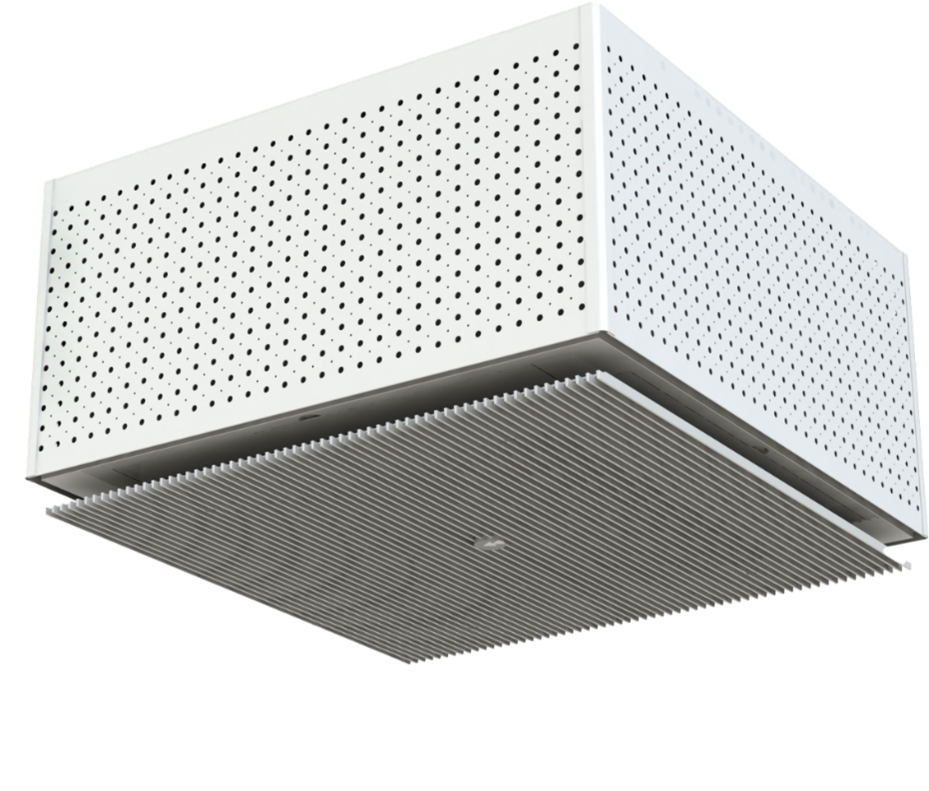

BOX 100-160

Box fan coil units are designed to meet performance and requirements set by spaces like public buildings, offices and residential buildings. The units are compatible with 2- and 4-pipe systems and water and liquid circuits. Each device is dimensioned separately with the Option selection program, ensuring that optimal coil sizes, routes and air volumes are selected for the system. All units are individually configured and tested with an automated testing system.

The Box device is available in two sizes designed for mounting on a modular ceiling: 600x600 mm and 600x1200 mm. For spaces without a false ceiling, the device can be equipped with a protective cover. The fan coil unit’s EC grille guarantees silent and draught-free cooling operations. The Coanda effect takes place even with low air volumes, resulting in significant reductions in energy consumption and sound levels. The grille enables the use of different airflow directions. Box fan coil units can also be equipped with a fresh air supply connection
